Specifications
1. CE ARRPOVED(CE NO.--110727/WFA516)2. DURABLE CHROMIUM CR-12 BLADE
3. DUAL HYDRAULIC AUTO IN-FEED
4. 8-9CBM/H EFFICIENCY

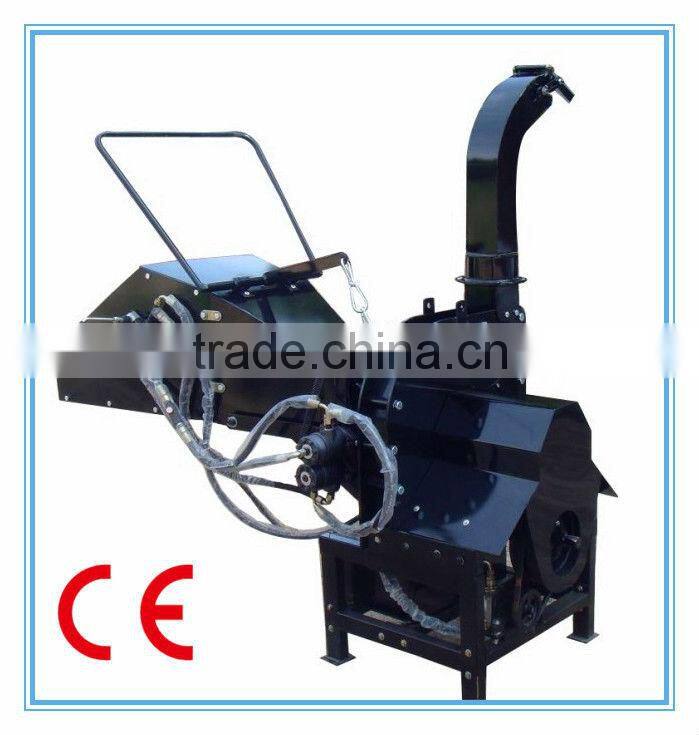

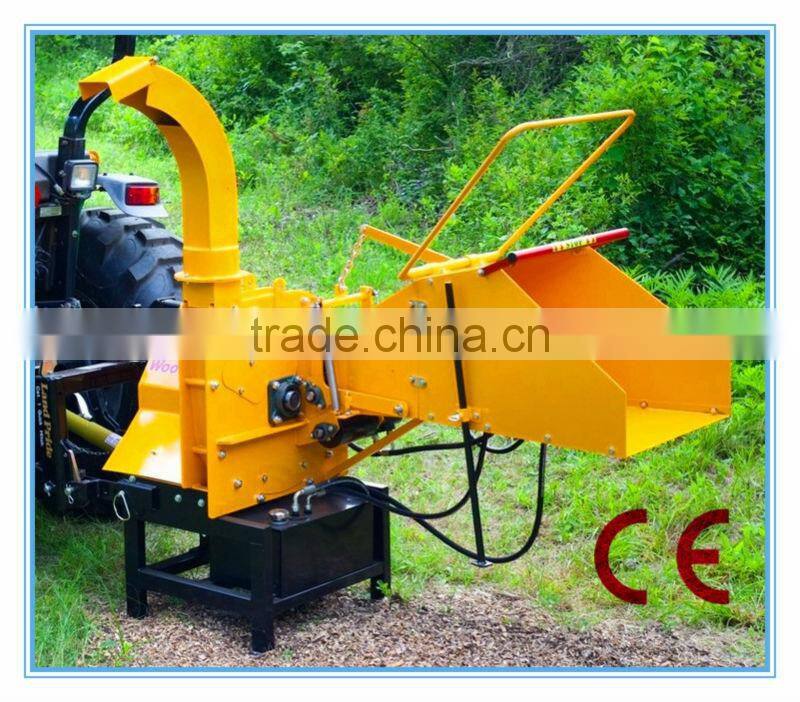

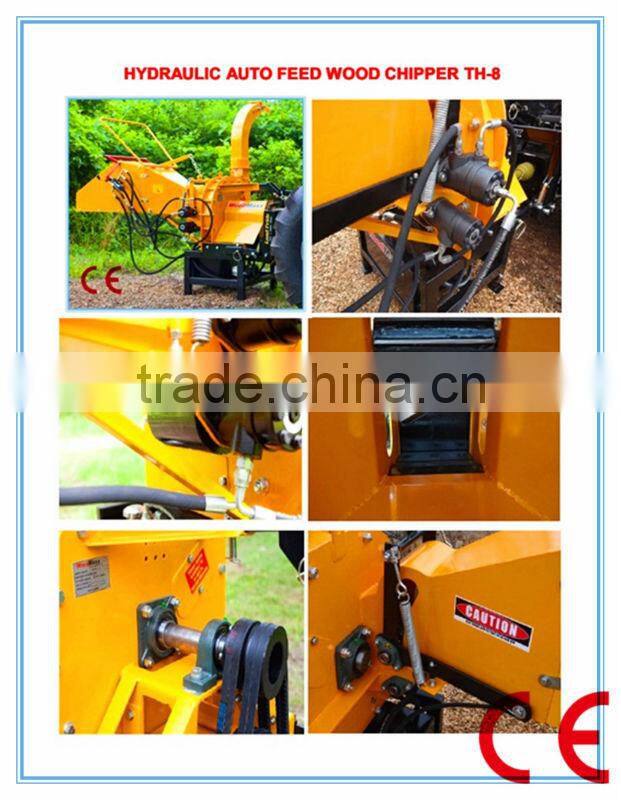

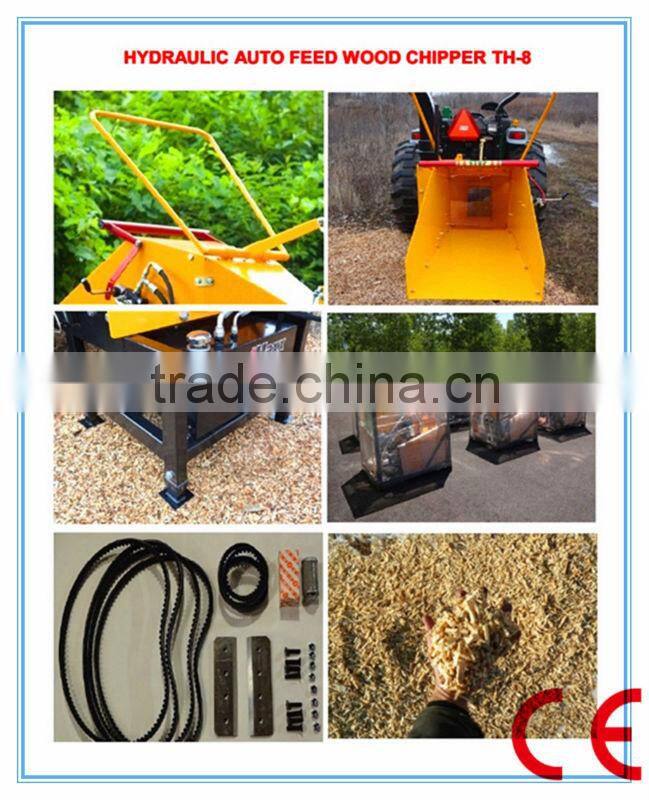

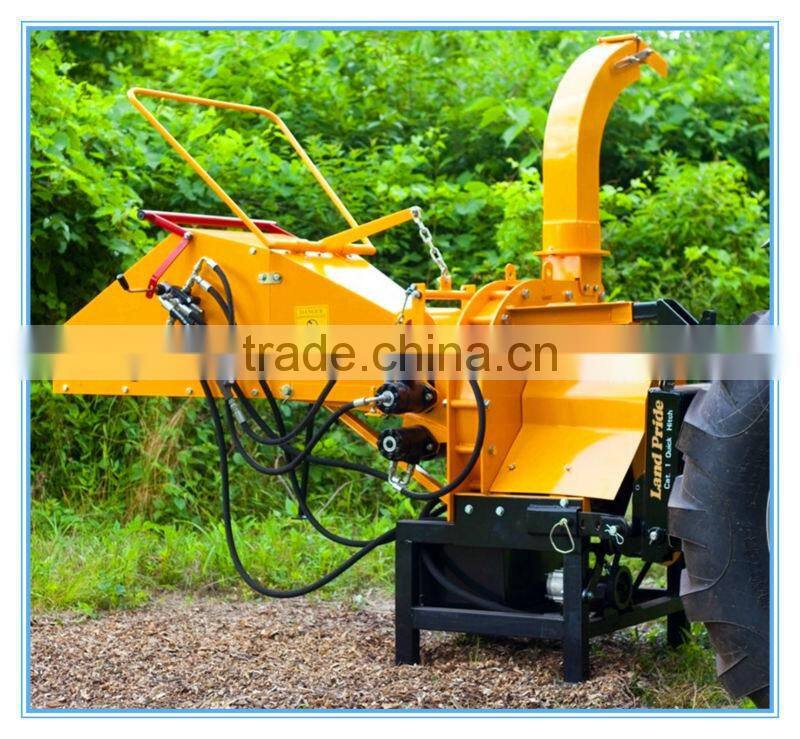

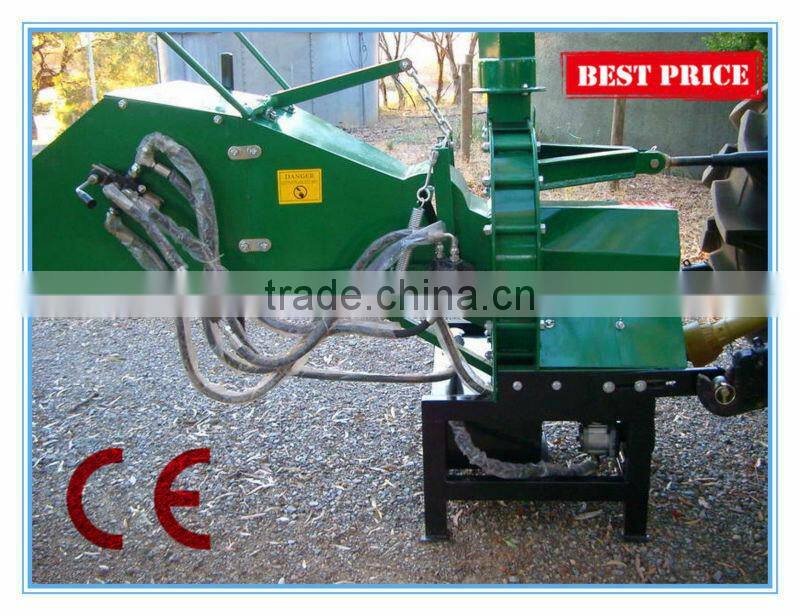

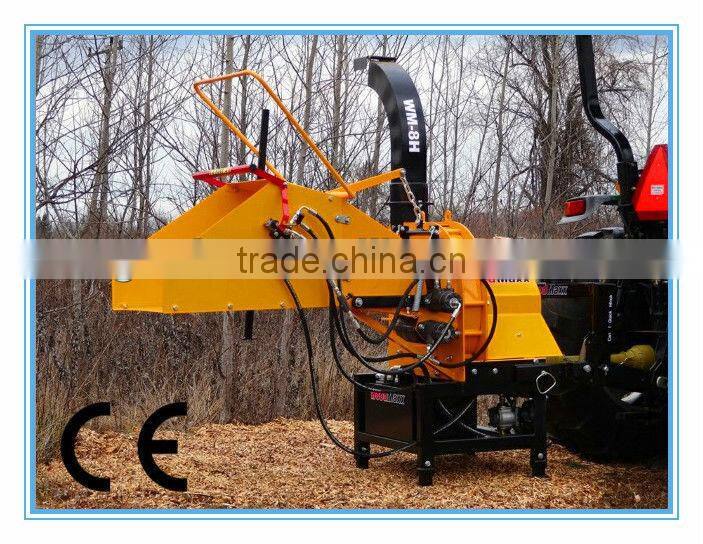

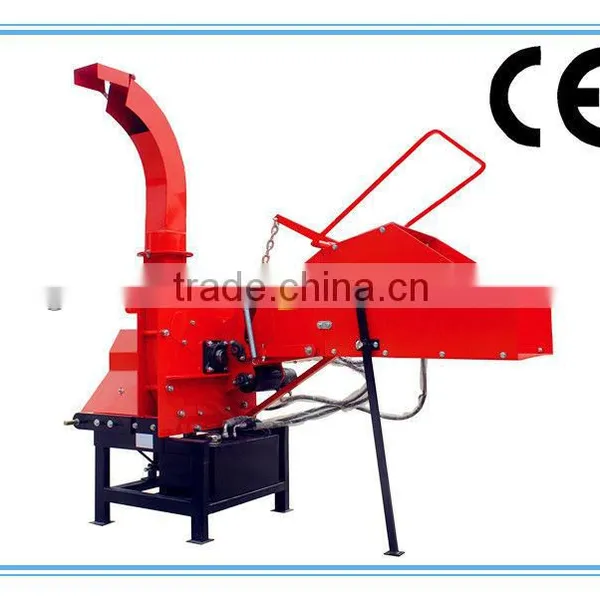

ForestKing ™ HYDRAULIC AUTO FEED WOOD CHIPPER WITH DUAL ROTATING IN-FEED ROLLERS
Features:
3PL wood chipper, driven by Ttractor PTO
cutting diameter size 1cm-25cm, up to 8 inch
8-9CBM/hour cutting capacity
Discharge hood can rotate in 360 degrees
Feeding system: mechanical roller feeding or hydraulic motor feeding optional
Blade material: Durable Chromium CR-12
CE certificate
NEW ForestKing ™ 2013 FEATURES INCLUDE:
6.25” DIAMETER HARDENED STEEL COMMERCIAL STYLE IN-FEED ROLLERS--ForestKing ™ EXCLUSIVE
NEW DUAL EDGE REVERSIBLE FLYWHEEL KNIVES--ForestKing ™ EXCLUSIVE
27-HOLE FLYWHEEL VETILATION--ForestKing ™ EXCLUSIVE
AUTOMATIC BELT TENSIONER--ForestKing ™ EXCLUSIVE
EASY SWIVEL DISCHARGE CHUTE
ADJUSTABLE BED (ANVIL) KNIFE
2 YEAR WARRANTY
200 LB. FLYWHEEL—IDEAL WEIGHT
2” (50MM) MAIN SHAFT
HEAVY DUTY CAST STEEL BEARING HOUSINGS
MAIN SHAFT SUPPORTED BY 3 BEARINGS
SELF CONTAINED HYDRAULIC SYSTEM
VARIABLE SPEED DUAL HYDRAULIC INFEED MOTORS
FULLY ADJUSTABLE INFEED ROLLER TENSION SPRINGS
WEIGHT 990 LBS.
TRUE 8” X 8” INFEED OPENING
3/8” THICK FLYWHEEL HOUSING
EASY KNIFE ACCESS PANELS
HEAVY DUTY COGGED 17MM DRIVE BELTS
SAFETY AUTO FEED STOP BAR
HANDY FEED ROLLER ASSIST HANDLE
RUST RESISTANT POWDER COAT FINISH
CLEAR VINYL BAFFLE
MACHINE 90% ASSEMBLED UPON DELIVERY
Usage:
1. The small chips made by the wood chipper can be used for animal bedding, for the forestry and
soil protecting, for new energy making, for compost and for charcoal.
2. Some customers use their colored garden waste chips, cover the soil and made the garden
beautiful; some of them use the garden waste chips in the fireplace.
| Technical details of PTO driven model Wood Chipper | ||
| Model | TH- 8 | TM- 8 |
| Max. Dia. of Feeding | 8'' | |
| POWER | Tractor (18~100hp, 540/720rpm) | |
| Diameter of Chipper Disk | 600mm | 600mm |
| Turning Speed of Chipper Disk | 1080rpm/1410rpm | |
| Feeding System | Hydraulic Feeding, | Feeding by Worm Reduction |
| Adjustable Speed, | Gear(4mm/s) | |
| Stop-Reverse-Forward Function | Only Forward Function | |
| Blade material |
Durable Chromium CR-12
|
|
| Sawdust Measurement | Thickness<4mm | |
| Rotation Angle of Discharge Spout | 360 | |
| Weight | 450kg(990LBS) | 420kg(930LBS) |
| Working Efficiency | 8~9m 3 /h | 6~9m 3 /h |
| Volume of TANK | 26L | / |
| PACKAGE DIMENSIONS (L×B×H) | 1150×900×1300 (mm) | 1150×900×1300 (mm) |
| 20GP/40HC container | 22unit/46units | 22units/46units |

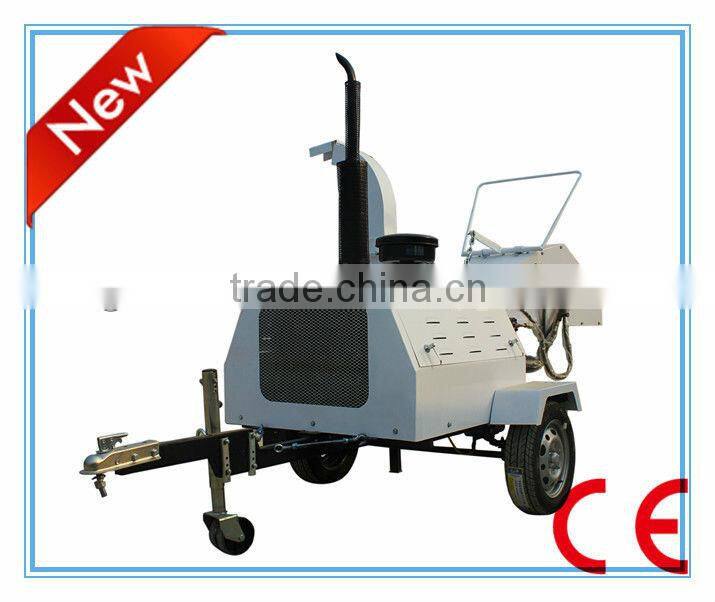

Other Kind Wood Chippers: Diesel engine wood chipper
