Specifications
Durable Chromium CR-12 blades.Maintenance simple,low noise.
High efficiency 10-12m3/H.
CE approved(CE No. --110727/WFA516)
1. Durable Chromium CR-12 blades.
2. Maintenance simple,low noise.
3. High efficiency 10-12m3/H.
4. CE approved(CE No. --110727/WFA516)
Features:

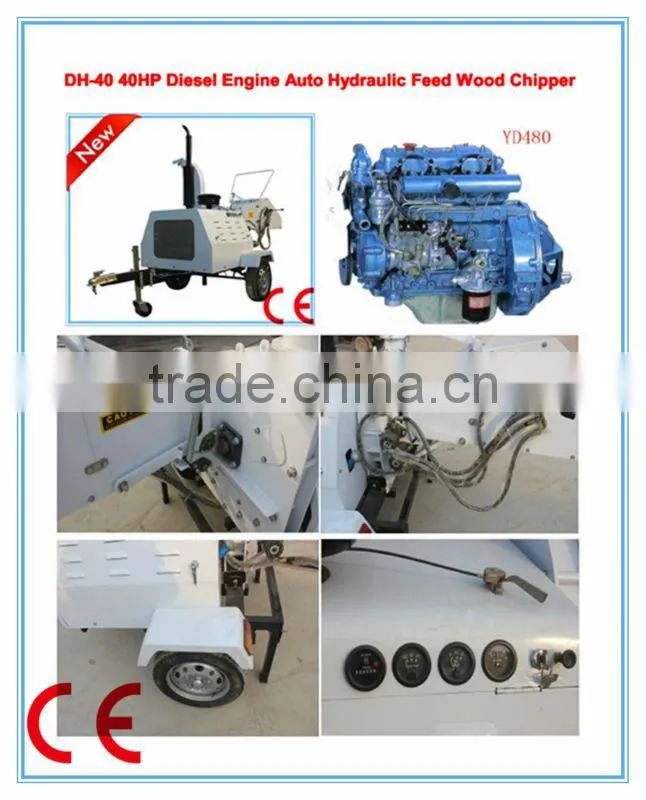

1. Yanmar or Changchai 40hp/30HP/22HP/18HP diesel engine.
2. 8 inch(1-25cm) Max. chip capacity, chip size 10-50mm adjustable.
3. High quality CR-12 material cutting blades
4. 3 blades, round disc housing, easy to change blades and belts.
5. Double hydraulic feeding rolls, round flywheel house, hydraulic tank, gear pump,
protect safty guard optional.
6. Free flow valve added on the new model wood chipper.
7. discharge hood can rotate in 360 degrees
8. optional color according to specific requirement.
9. 2" hitching ball, can use in Europe, Australia, USA etc.
10. Jockey wheel, road/turf tyre
Usage:
1. The small chips made by the wood chipper can be used for animal bedding, for the forestry and
soil protecting, for new energy making, for compost and for charcoal.
2. Some customers use their colored garden waste chips, cover the soil and made the garden
beautiful; some of them use the garden waste chips in the fireplace.
Technical specification of diesel engine wood chipper:
| Model | DH-18/DH-22 | DH-30/DH-40 |
| Power | 18hp/22hp | 30/40hp |
| Engine | one cylinders Electric started diesel engine | 3cylinders Electric started diesel engine |
| Chipper capacity | 8”diameter/200mm | 8" diameter/200mm |
| Feeding system | Mechanical / hydraulic | Hydraulic |
| Rotor plate size | 640mm | 760mm |
| Rotor plate weight | 85kg | 85kg |
| Knives number | 1stationary knife:2rotor knives | 1stationary knife:2rotor knives |
| Blade Material | Durable Chromium CR-12 | Durable Chromium CR-12 |
| Dimensions(Hopper discharge) | 1300x1400x1100mm | 1900x1300x2500mm |
| Feed Hopper inner Opening | 200x220mm | 500mmx500mm |
| Discharge Hood Height | 1800mm | 2000mm |
| Rated RPM | 1080 | 1280 |
| Discharge hood rotates | 360 degree | 360 degree |
| Settings | turning lights, easy discharge hood,2”Ball Hitch, Safety Chains and leaf spring on axle | |
| Gross Weight | 680kg/720kg | 780kg |
| Working efficiency | 6-10CBM/H | 10-12CBM/H |
Note: DH-30 and DH-18, DH-22 outlook is the same with DH-40, only the engine is difference.
Other Kind Wood Chippers: PTO driven TH-8
