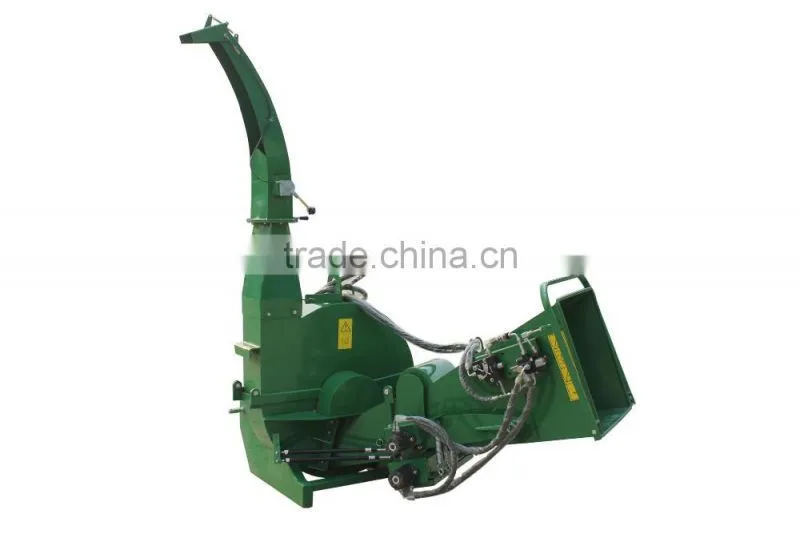

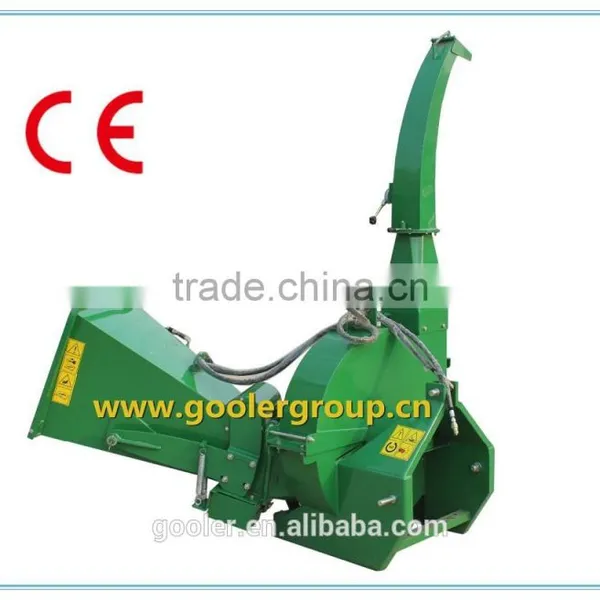

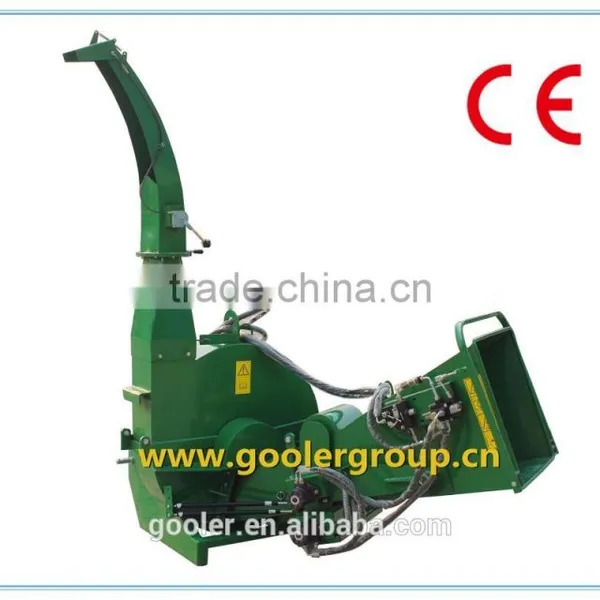

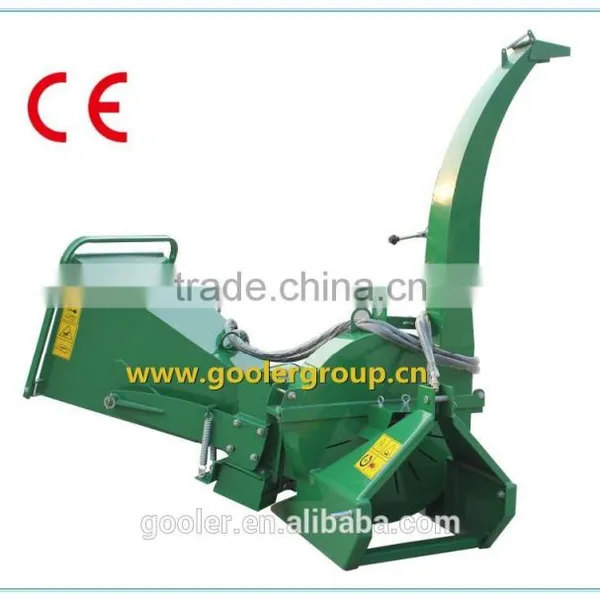

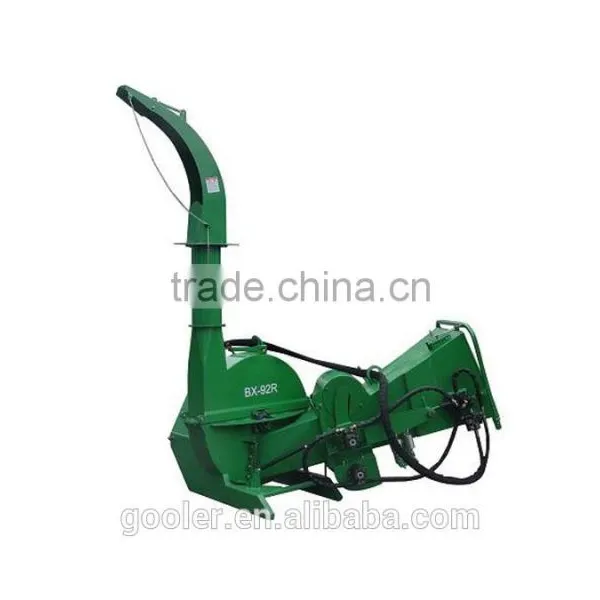

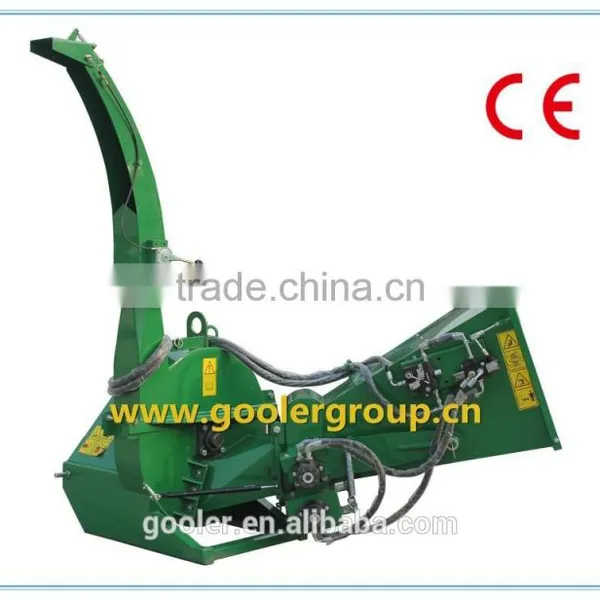

Help CenterBX Wood Chipper BX92R, Hydraulic Feeding Rollers, PTO Driven, 680kg, CE Approval
Related Products
-
Hydraulic Wood Chipper Shredeer, CE ApprovedUS$ 900 - 1,350MOQ: 1 Unit -
Wood Chipper Machine Price, Wood Chipper Shredder With CE CertificateUS$ 900 - 1,350MOQ: 1 Unit
-
BX62R Auto Infeed Wood Chipper, Leaf Shredder Wood Chipper, CE ApprovedUS$ 1,400 - 2,050MOQ: 1 Unit
-
PTO Driven Wood Chipper Shredder, CE Certificate, TH-8 ModelUS$ 900 - 1,350MOQ: 1 Unit
-
CE Approved Tractor PTO Driven Wood Chipper for SaleUS$ 630 - 1,000MOQ: 1 Unit
BX self--feeding wood chipper
Specifications:
1. Features :Rotor ,Blades
2. Air Vents, Twig Breaker Blower Paddles
3. Adjustable Chute
4. Hydraulic Feed Hopper
5. CE certificate
BX42S,BX62S,BX62R,BX92R wood chippers Detail descriptions:
| Model | BX42S / BX42R | BX62S / BX62R | BX92R |
| Drive System | Direct drive, PTO shaft | Direct drive, PTO shaft | Direct drive, PTO shaft |
| HP requirements for max. cap. | 18-60 | 40-100 | 60-120 |
| HP Range | 18-50 | 30-100 | 65-150 |
| Chipper Capacity | 4" Dia. (max. 12" slab) | 6" Dia. (max. 12" slab) | 10" Dia. (up to 14" slab) |
| Chipper Housing Opening | 4"x10" | 6½" x 12" | 10½" x 14" |
| Rotor Size | 25" | 30" | 36" |
| Number of Rotor Knives | 4 | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel |
| Rotor Weight | 110 lbs. | 180 lbs. | 280 lbs. |
| Feeding System Feed | Self Feed / Hydraulic Feed | Self Feed / Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x42"W x 60"H | 50"L x 52"W x 74"H | 54"L x 52"W x 88"H |
| Hopper Opening | 20" x 20" | 25" x 25" | 25" x 25" (635X635mm) |
| Discharge Hood Rotation | 360° | 360° | 360° |
| Discharge Hood Height | 60" | 74" | 84" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight |
BX42S-595 lbs BX42R-690lbs |
BX62S-920lbs BX62R-1070lbs |
1495 lbs |
At the heart of the ForestKing BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 10” diameter tree trunks.
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance

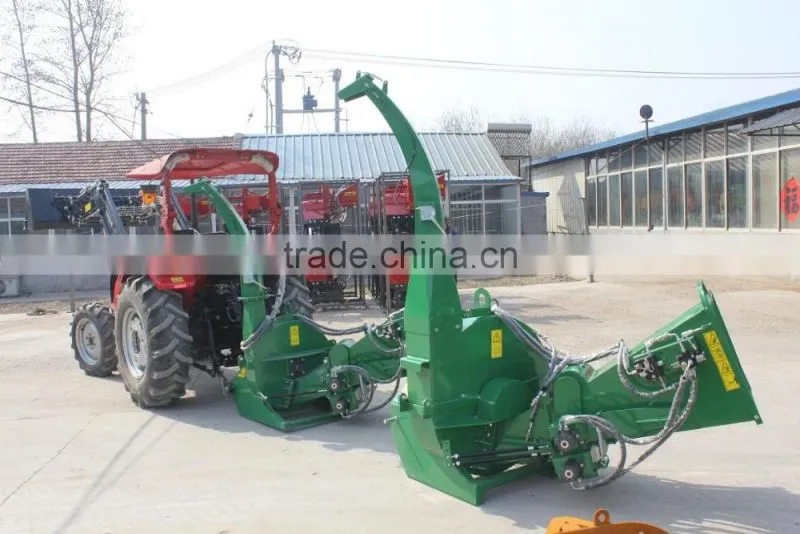

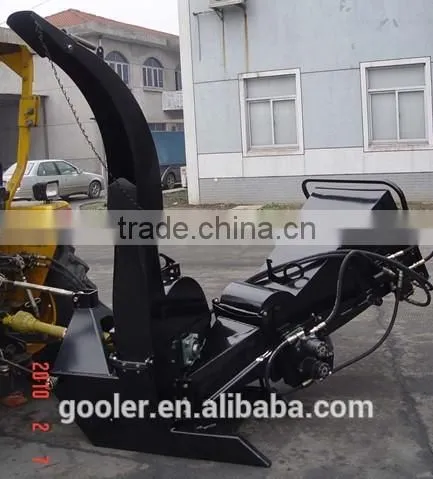

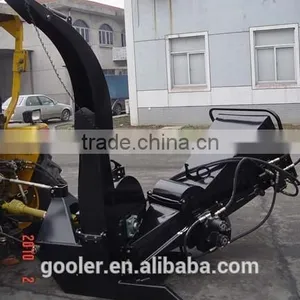

Driven by tractor
Mounting Configurations
There are three different mounting configurations available for the BX Wood Chipper; A three point hitch, skidsteer mount and trailer

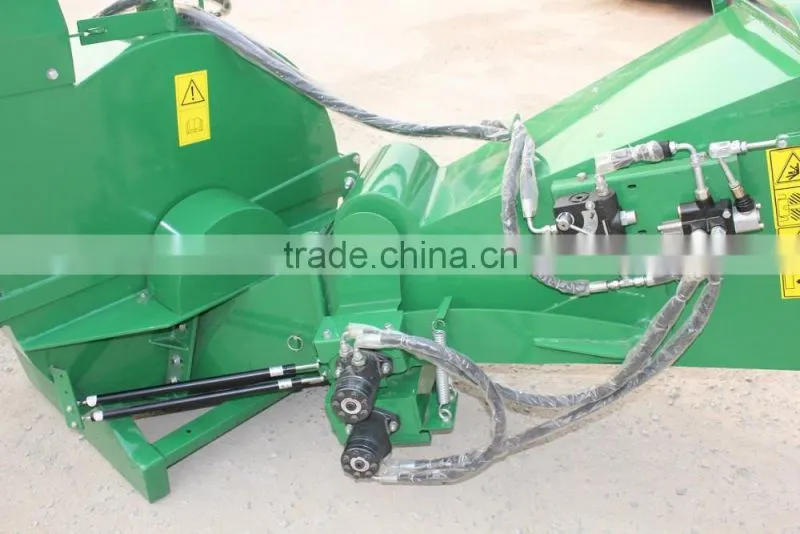

Hydraulic Feed Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
