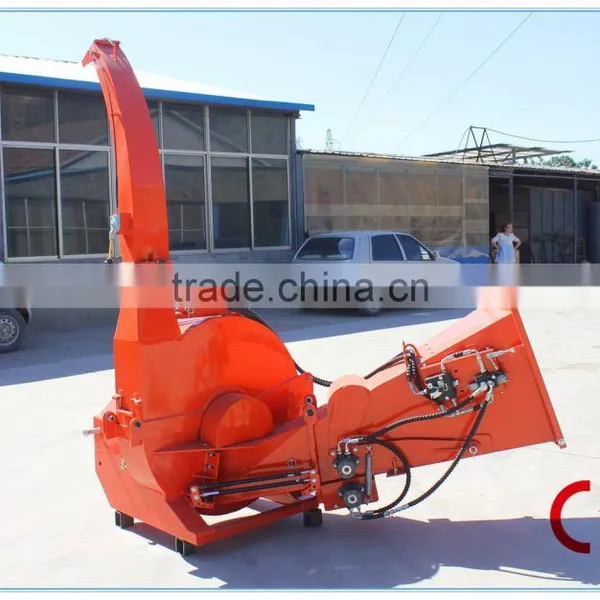

High Capacity CE Wood Chips Making Machine
Driect Driven by tractor, PTO connected, hydraulic feeding, easy to operate, with CE.
Used to make log and branches into chips, then as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production.
In addition, used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays.
Specification
Model |
BX42S wood chipper |
BX62S/R wood chipper |
BX92R wood chipper |
Drive System |
Direct drive, PTO w/ shearbolt |
Direct drive, PTO w/ shearbolt |
Direct drive, PTO w/ shearbolt |
HP requirements for max. cap. |
35-40 |
60-70 |
85-110 |
HP Range |
18-50 |
30-100 |
65-150 |
Chipper Capacity |
4" Dia. (max. 12" slab) |
6" Dia. (max. 12" slab) |
10" Dia. (up to 14" slab) |
Chipper Housing Opening |
4"x10" |
6½" x 12" |
10½" x 14" |
Rotor Size |
25" |
30" |
36" |
Number of Rotor Knives |
4 |
4 |
4 |
Knife Type |
Hardened tool steel |
Hardened tool steel |
Hardened tool steel |
Rotor Weight |
110 lbs. |
180 lbs. |
280 lbs. |
Feeding System Feed |
Self Feed |
Self or Hydraulic Feed |
Hydraulic Feed |
Mounting System |
3 Point Hitch |
3 Point Hitch |
3 Point Hitch |
Dimensions (Hopper Folded) |
40"L x42"W x 60"H |
50"L x 52"W x 74"H |
54"L x 52"W x 88"H |
Hopper Opening |
20" x 20" |
25" x 25" |
25" x 25" (635X635mm) |
Discharge Hood Rotation |
360° |
360° |
360° |
Discharge Hood Height |
60" |
74" |
84" |
Rated RPM |
540-1000 |
540-1000 |
540-1000 |
Weight |
425 lbs. |
BX62S-770 lbs./BX62R-1070lbs |
1375 lbs. (735KGS) |
Features
Rotor
At the heart of the ForestKing BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your
momentum to power through 6” diameter tree trunks.
Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
Mounting Configurations
There are three different mounting configurations available for the BX Wood Chipper; A three point hitch, skidsteer mount and trailer
Hydraulic Feed Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
Driven by tractor
Working
We have 2wd Model tractors and 4wd Model tractors (from 17hp to 160hp) are the main products of our enterprise, also implements like Front end loader, backhoe, plough, harrow, wood chipper, mower, log splitter etc.
