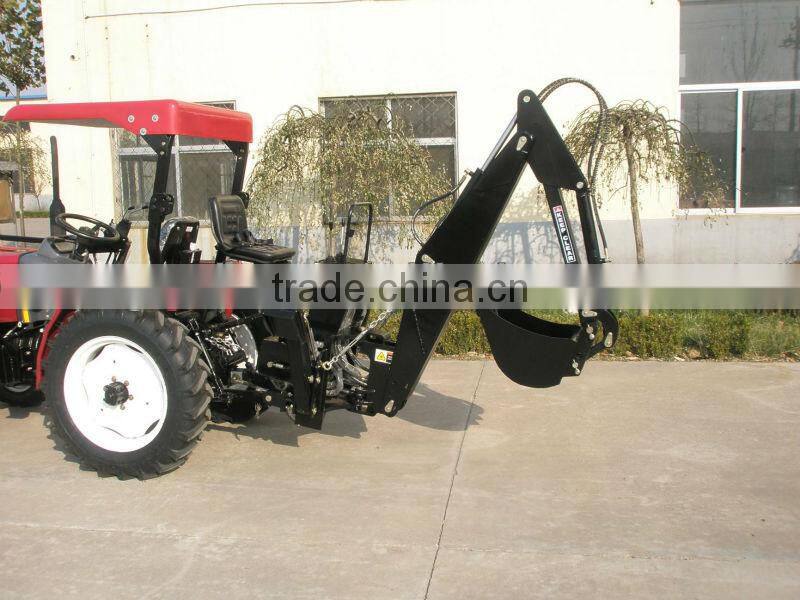

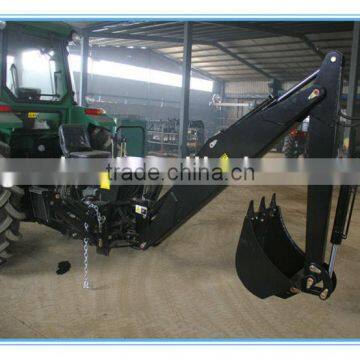

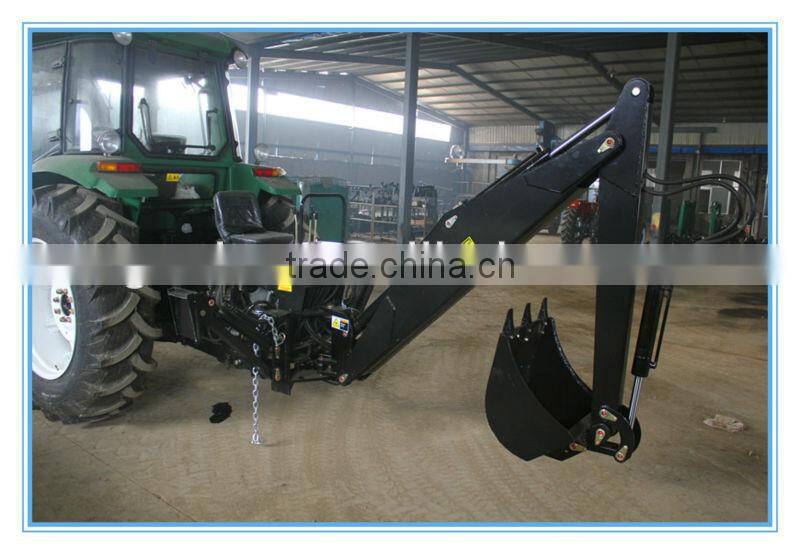

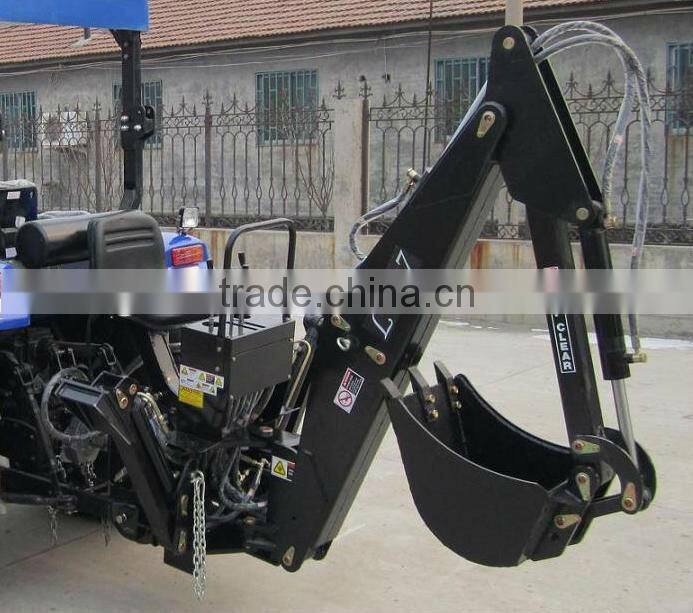

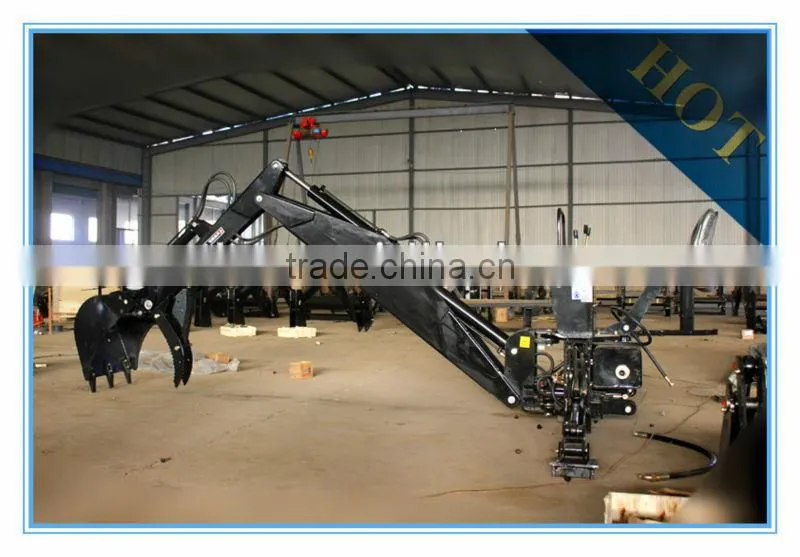

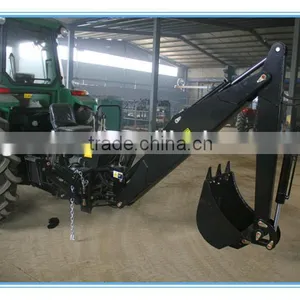

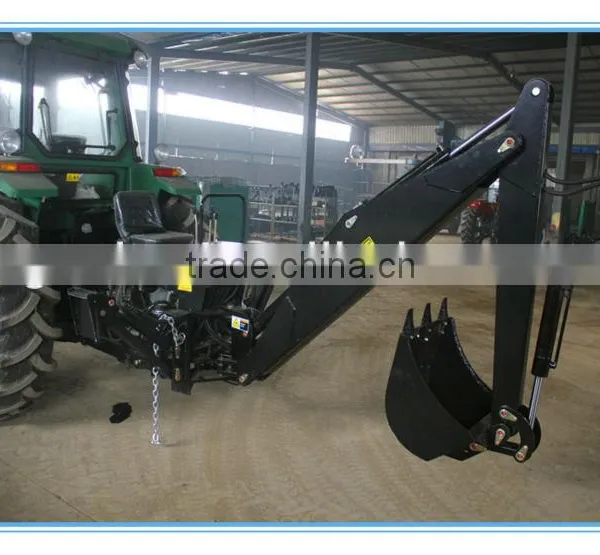

Tractor 3-point Linkage Backhoe LW-6, LW-7, LW-8

FOB Price

US$ 1,800 - 2,450 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Digger
Place of Origin	Shandong, China	Brand Name	TS Brand
Model Number	LW-6, LW-7, LW-8	Dimension(LWH)	2.2x0.7x1.1
Weight	600kg	Features	increasing speed gear box
Warranty	2years	After-sales Service Provided	Engineers available to service machinery overseas

1. Fit tractor model 25HP-100HP
2. backhoe with hydraulic pump
3. 180 degree turn
4. with oil pipe, luxury seat

Tractor Backhoe LW-6/LW-7/LW-8 3PL PTO linkage

Model	LW-6	LW-7	LW-8	LW-9
Tractor model	254/304/324/354	404/454/504/554/604/654	704/754/804/854/904	1204/1254
L1 (mm)	495	495	500	505
L2(pin of the boom distance)(mm)	517	540	632	650
φ1(diameter of up hang pin hole) (mm)	20	20	26	26
φ2(diameter of down hang pin hole)(mm)	20	23	29	32
A Max digging depth(mm)	1700	2100	2600	3100
B dump height (mm)	1700	2300	2500	2700
C Max digging height(mm)	2700	3300	3400	3500
E height of arm pin to ground(mm)	430	430	450	450
F Max digging depth in level base (mm)	1600	2000	2500	3000
Dump angle (°)	42°	42°	42°	42°
Bucket width (mm)	340	380	420	460
Rated lift capacity (m3)	0.03 m³	0.048 m³	0.06 m³	0.072 m³
