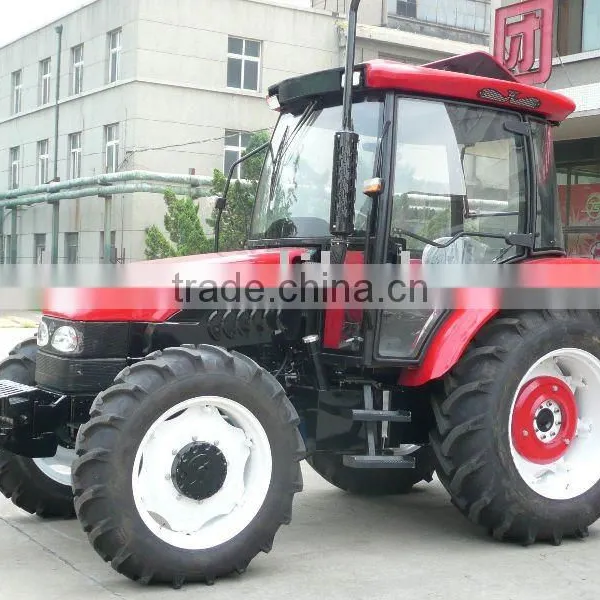

Wheeled Tractor TS1204

Main Technical Data of 1204 Tractor

Engine

Engine type

LRC 6105T51

Feature

6 cylinder, water cooling, straight line, direct injection, natural aspiration

Cylinder number

6

Bore*stroke

105*135

Rated power (kw)

88.2

Rated revolution (r/min)

2300

Fuel consumption (g/kw.h)

≤240

Speed of max, torque (r/min)

440

Engine oil conditions (g/kw.h)

≤1.6

Lubricating method

Pressure and splash lubricating

Cooling method

Forced circulating water cooling

Clutch

Two disk,                                                                                LUK dry-type, independent operation two-stage

Transmission box

27 forward gear, 9 reverse gear (equipped

with creeper)

Brake assembly

Foot controlled, hydraulic operating,

single disk

Constructional weight (kg)

4200

Rated traction force (kn)

28

Front wheel tire

14.9-26

Rear wheel tire

18.4-38
