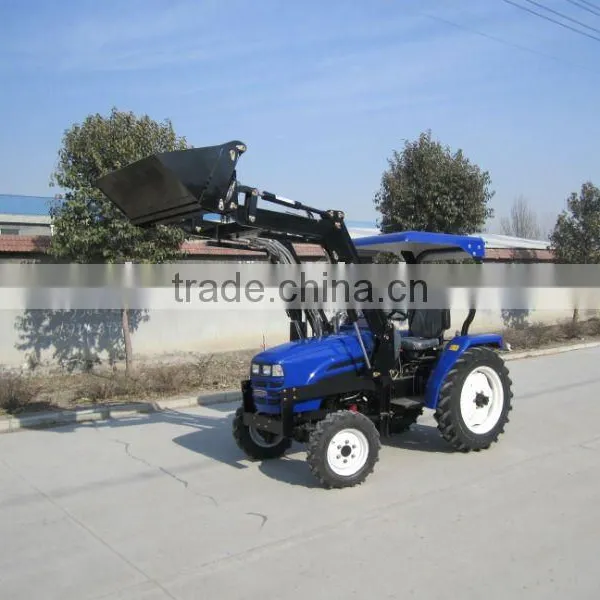

Mini Compact Garden Tractors Fit With 4in1 Front End Loader, Backhoe, Slasher

Mini Compact Garden Tractors Fit With 4in1 Front End Loader, Backhoe, Slasher thumbnail-1
Mini Compact Garden Tractors Fit With 4in1 Front End Loader, Backhoe, Slasher photo-1
US$ 1,900 - 6,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Gooler International Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Other
Certificate Other
Brand Name LZ brand
Model Number LZ254/LZ284/LZ304
Place of Origin Shandong, China

Specifications

1. Fit tractor 25/28/30HP
2. Self balance on front end loader
3. 4in1 bucket
4. Triple linkage control
5. backhoe with hydra



    Luzhong 254-304 Tractors Main Techical Specifications




Model

LZ254

LZ284

LZ304



Type

4WD    Wheeled Type



(mm)Dimensions of Tractor

Length (to front ballast)

3030



Width

1470



Height (to the exhaust vent)

1900



Tread

Front Wheel

1215 Fixed or 1150~1215 Adjusted




Rear Wheel

1300 Fixed or 1300~1350 Adjusted




Axle Base

1710



Min.Ground Clearance

347.5




Structure weight (kg)

1130



Ballast weight
(kg)

Front ballast

56



Rear ballast

112



Rated traction force (kg)

551

591

663



EPA Engine

Model

385

385

390/485



Type

Vertical,3-Cylinder,Water Cooled and 4-stroke



Rated Power(kw)

18.4

20.6

22




Rated speed (r/min)

2400




Fuel

Diesel



Tyre

Front Wheel

6.00-14



Rear Wheel

9.5-24



Clutch

Dual-stage clutch



Steering

power steering



Transmission Type

 8+8 with shuttle gearshift or 16+4 with creeper shift



Suspension Type

3-point links




PTO

Type and Rev

Semi-independent Type 540/1000




Spline Size

F35 Rectangle Spline with 6 teeth




Structure and specification are subject to change without notice.











            Tractor Front end loader Specifications



Model

TZ02

TZ02D

TZ03

TZ03D

TZ04

TZ04D



Tractor model

254

284/304/354

404454/504/554

A

Height–measured at arm pivot point

2100

2360

2400

2700

2500

2800

C

Max. dump height (mm)

1700

1800

2000

2000

2100

2100

D

Dump distance (Max. dump height) (mm)

500

600

700

800

800

900

E

Dump angle (°) (Max. dump height) (mm)

42

45

42

45

42

45

F

Distance to the centre of front-wheel (mm)

1550

1800

1800

1900

1800

1900

G

Rollback angle on ground (°)

26

32

26

32

26

32

H

Max. digging depth (mm)

100

100

100

140

100

140



Bucket width (mm)

1250

1250

1400

1400

1500

1500



Bucket capacity (m3)

0.18

0.18

0.21

0.21

0.23

0.23



Rated lift capacity (Kg)

200

200

300

300

400

400
