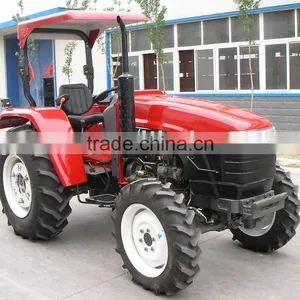

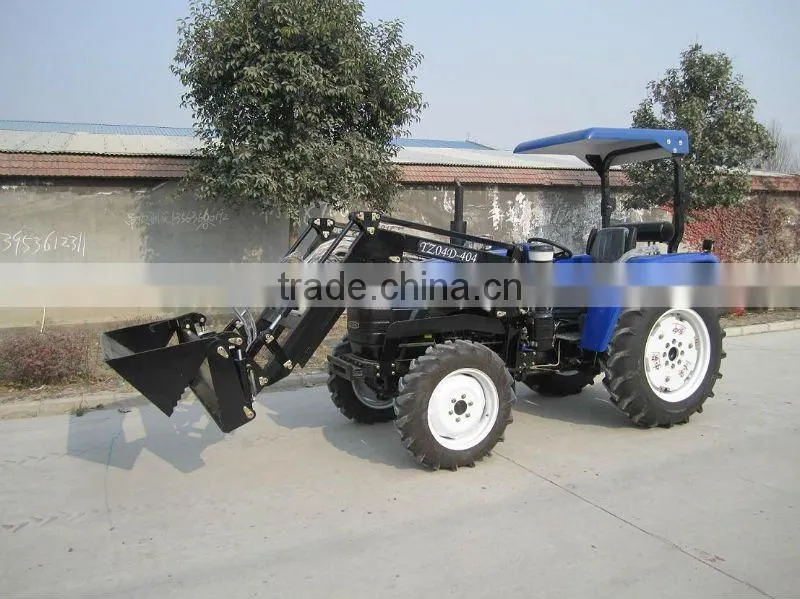

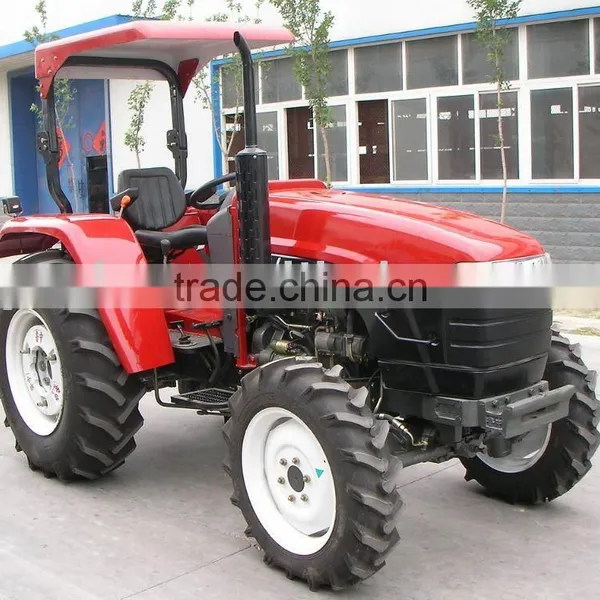

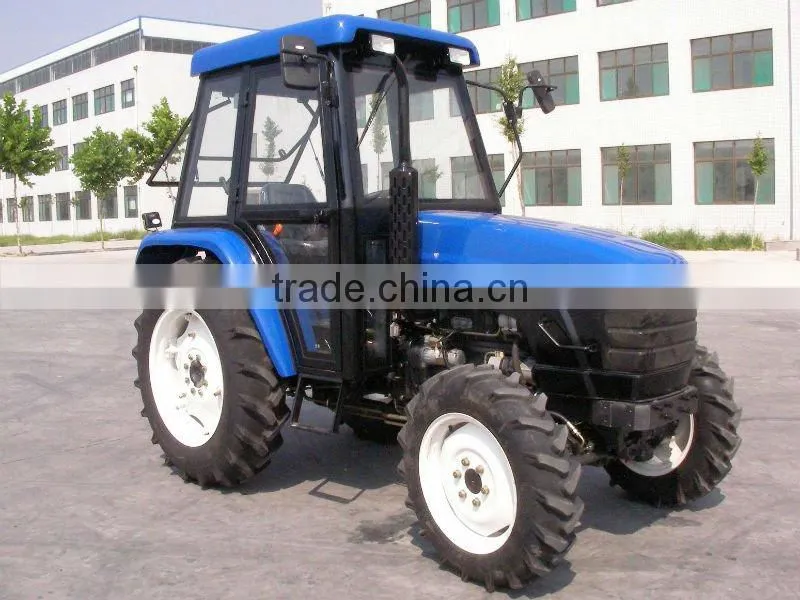

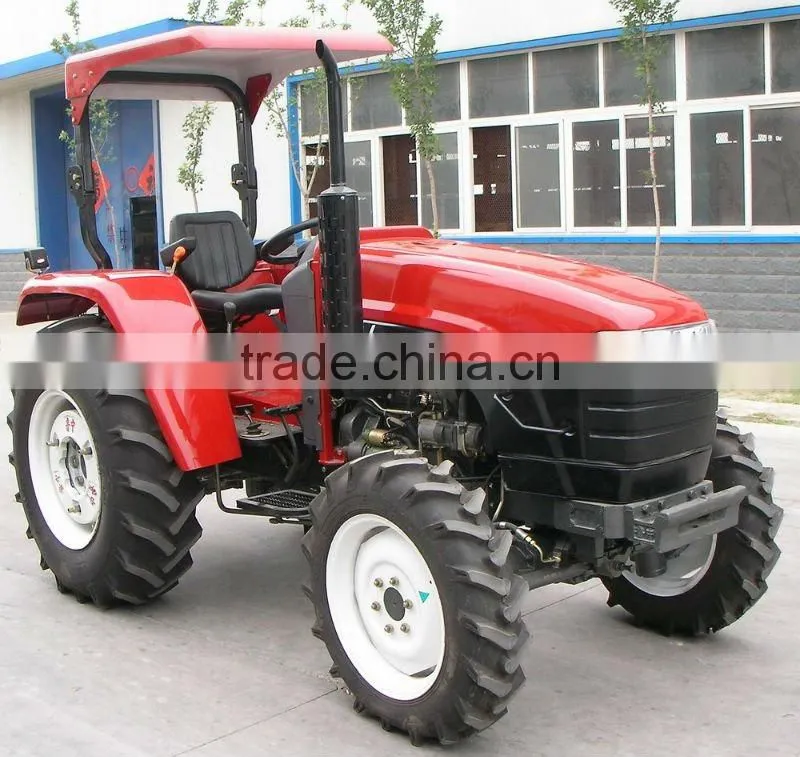

LZ404 4WD 40HP wheeled farm tractors with sunshade

FOB Price

USD $5,000 - $7,500 / Unit

1 Unit(Min.Order)

Product Details

1.farm tractor 4 wheeled drive
2.EPA diesel engine
3.Dual stage cluth,Shuttle gear,air break
4.power steering,double valv

Luzhong 404-504 Tractors Main Technical Specifications

Model			LZ404	LZ454	LZ484	LZ504
Type			4WD Wheeled Type
(mm)Dimensions of Tractor	Length (to front ballast)		3835
	Width		1620
	Height (to the exhaust vent)		2220	2135
	Tread	Front Wheel	1280

		Rear Wheel	1300 Fixed or 1200~1500 Adjusted

	Axle Base		2030
	Min.Ground Clearance		325

Structure weight (kg)			1665		1734
Ballast weight (kg)	Front ballast		140			168
	Rear ballast		200		300
Rated traction force (kg)			1100	1130	1140	1150
EPA Engine	Model		3105/490	495	495/498	498/4100
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		29.4	33	35.2	36.7

	Rated speed (r/min)		2400

	Fuel		Diesel
Tyre	Front Wheel		8.3-20
	Rear Wheel		12.4-28
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+8 with shuttle gearshift or (8+4)×2 with creeper shift
Suspension Type			3-point links

PTO	Type and Rev		Semi-independent Type 540/1000

	Spline Size		F35 Rectangle Spline with 6 teeth


Structure and specification are subject to change without notice.
