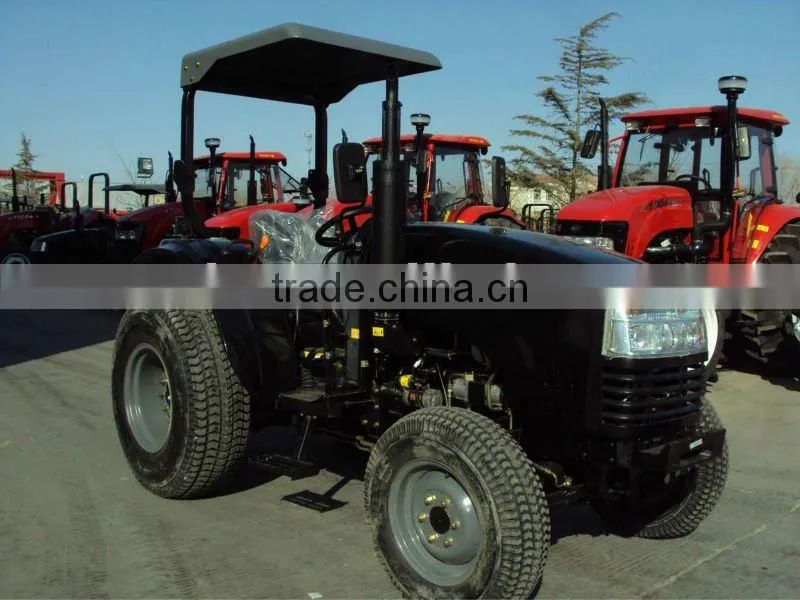

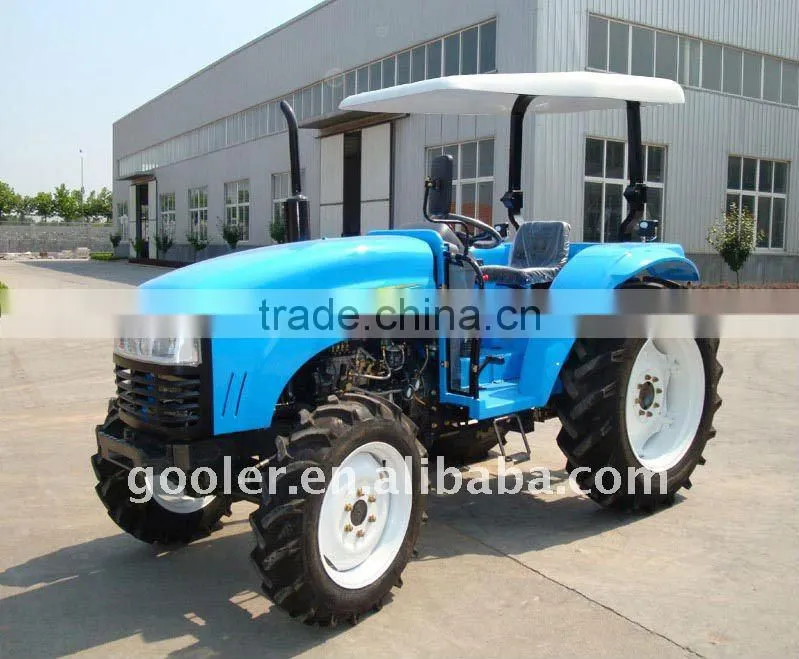

Tractor, farm tractor, 4WD tractor 40HP with sunshade

Specifications

1.farm tractor,4WD tractor
2.8F+8R
3.rops,sunshade
4.Dual stage cluth,Shuttle gear
5.plough,harrow,loader,backhoe etc

Introduction of High quality Farm tractor, DQ404, 40HP, 4WD with rops, sunshade



Advantages and Characteristics of 40/55 series tractor:



1. Equipped with famous brand engine, with good performance, low fuel consumption and high economic efficiency.



2. Streamlined appearance with novel design.



3. 6 or 8 spline PTO( Power Take Off).



4. Rotation speed of PTO: 540/760r/min.



5. Can be equipped with ROPS, canopy, cabin, front/rear ballast, loader, and so on;



6. Tire size: front tire 8.3-20, rear tire 12.4-28.

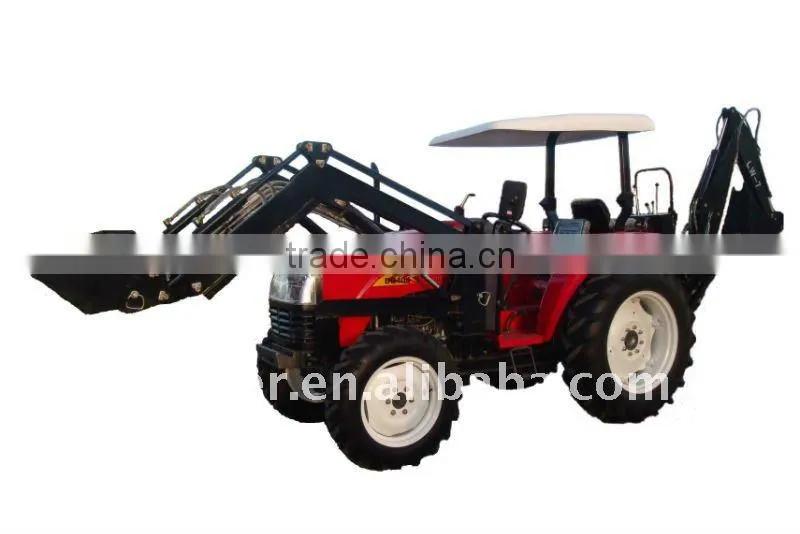

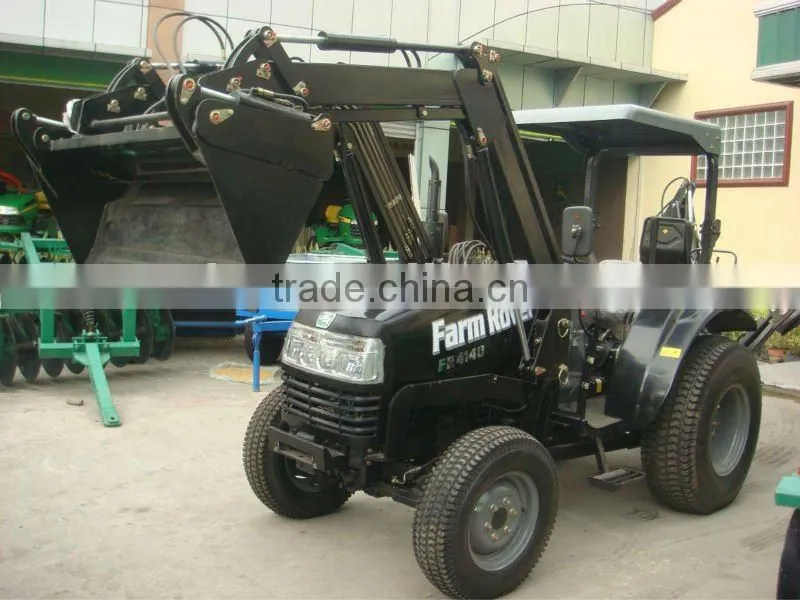

7.Can match implements such as Front end loader, Backhoe, Plough, Harrow, Trailer, snow blower, and so on.

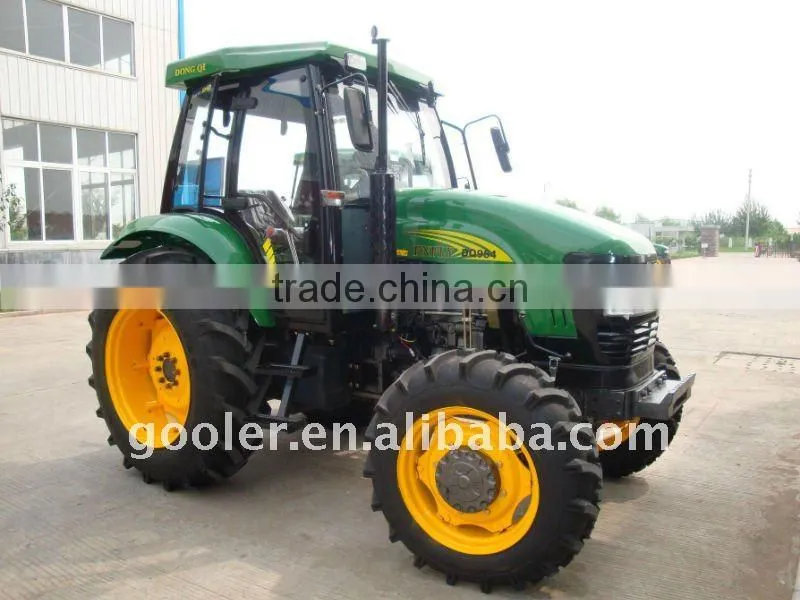

Main Technical Data of Farm Tractor DQ404 with cab



DQ40-55 SERIES SPECIFICATION
Model	DQ404	DQ554
Drive type	4x4	4x4
Engine
Type of engine	Xinchai 4-Cylinder
Capacity of fuel tank(L)	38L
Engine power at rated speed	29.4KW	40.5KW
Rated speed (r/min)	2400
Transmission
Clutch	dry,dual-stage type
PTO speed	Double PTO 540/760rpm
Gear shift	8F+4R/8F+8R(Optional)
Hydraulic system
Hydraulic output valve	2-Way (optional)
Three point linkage
Category of 3-point link	rear, category I
Lifting force(at point of 610mm)KN	11	12
Technical parameter
Overal size(LxWxH)mm	3513x1750x2130
Wheel base(mm)	1924	2040
The smallest clearance(mm)	325	325
Front tire	8.3-20	8.3-20
Rear tire	12.4-28/14.9-24(optional)
