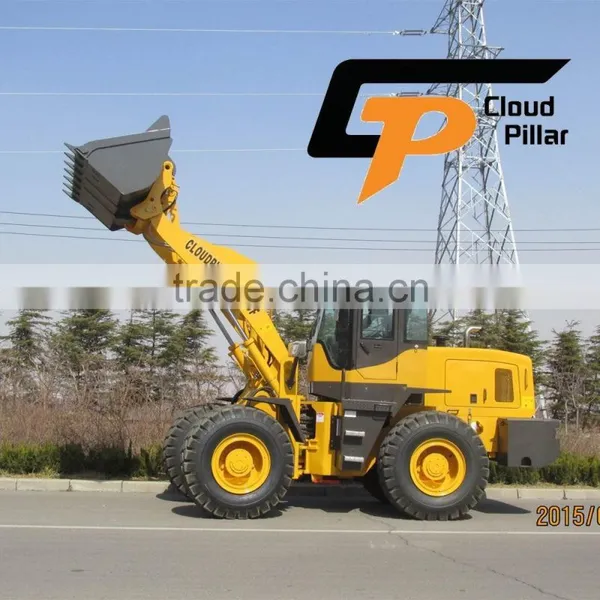

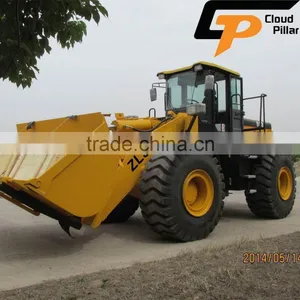

0.8ton,1.0ton,1.2ton,1.5ton,2.0ton,2.8ton,3ton,4ton,5ton,6ton TOP Brand cheap mini wheel loader for sale
Weifang Cloud Pillar produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader and so on.

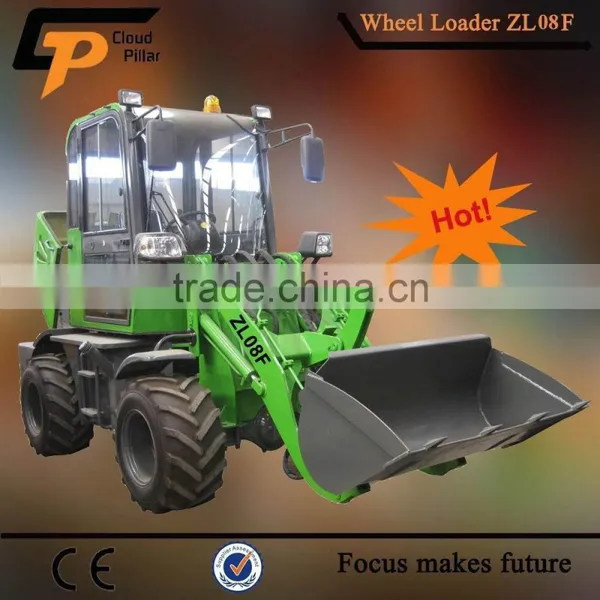

0.8 ton wheel loader(ZL08F)
Overall weight(KG):2000KG; LxWxH:4700X1200X2400mm; Rated bucket capacity(m³):0.6
Rated load(KG):800; Dump height(mm):2400; Dump Distance(mm):700;
Wheelbase(mm):2100; Thread(mm):1400; Total time(S):11;
Engine:ChangchaiCZ2102/385; Rated power(Kw):25/20; Rated speed(r/min):2400/2200;
Tyres:standard:31x15.5-15 Option:28X9-15;

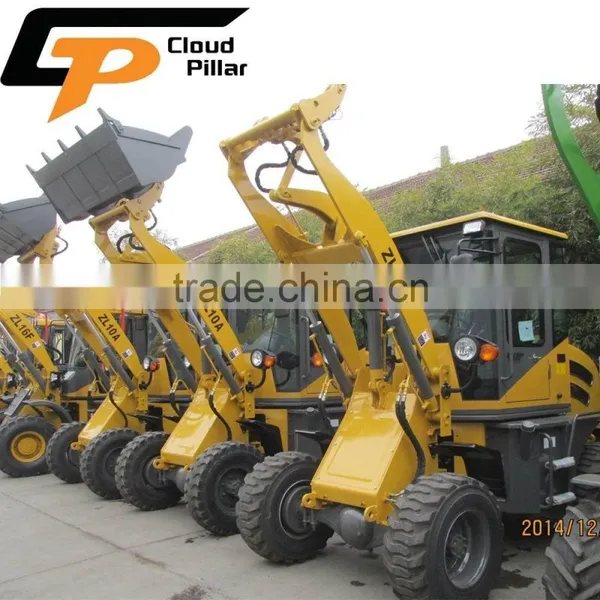

1.0ton wheel loader(ZL10F(A))
Overall weight(KG):2850KG; LxWxH:4750X1500X2530mm; Rated bucket capacity(m³):0.5
Rated load(KG):1000; Dump height(mm):2300; Base to Ground(mm):250;
Wheelbase(mm):1985; Thread(mm):1215;
Engine:Changchai490; Rated power(Kw):37; Rated speed(r/min):2200;
Tyres:standard:1200-16 Option: 14/90-16;

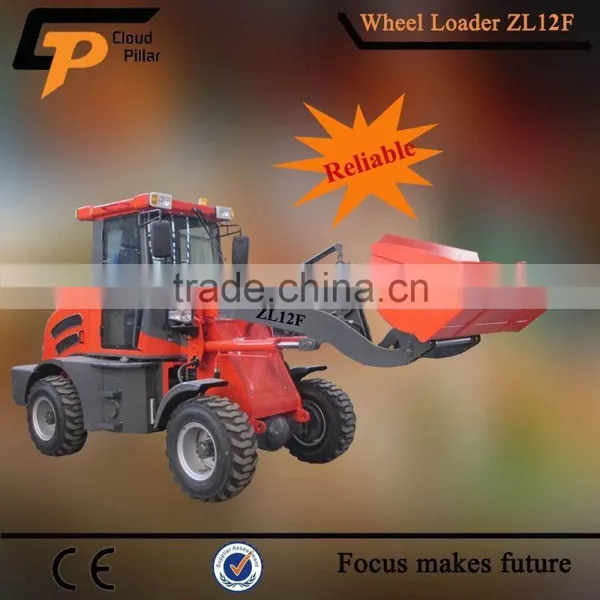

1.2ton wheel loader(ZL12F)
Overall weight(KG):3400KG; LxWxH:4800X1770X2720mm; Rated bucket capacity(m³):0.6
Rated load(KG):1200; Dump height(mm):2750; Base to Ground(mm):230;
Wheelbase(mm):2100; Thread(mm):1730; Dump Distance(mm):1020;
Engine:Changchai490/4l68; Rated power(Kw):37; Rated speed(r/min):2200;
Tyres:standard:1200-16 Option:12-16.5/14-17.5;
1.5ton wheel loader(ZL15F)
Overall weight(KG):3600KG; LxWxH:4800X1770X2720mm; Rated bucket capacity(m³):0.7
Rated load(KG):1500; Dump height(mm):2750; Base to Ground(mm):260;
Wheelbase(mm):2100; Thread(mm):1730; Dump Distance(mm):1020;
Engine:Changchai4l68/Xinchai490(EuroIII); Rated power(Kw):37; Rated speed(r/min):2200;
Tyres:standard:12-16.5 Option:20.5-16/14-17.5;
2.0ton wheel loader(ZL20F)
Overall weight(KG):5800KG; LxWxH:5500X1900X2850mm; Rated bucket capacity(m³):1.0
Rated load(KG):2000; Dump height(mm):3100/3500; Base to Ground(mm):310;
Wheelbase(mm):2150; Thread(mm):1440;
Engine:YTR4108/Cummins4BT3.9-100; Rated power(Kw):60/75; Rated speed(r/min):2400;
Tyres:standard:16/70-20 Option:Moving type;
2.8ton wheel loader(ZL28F)
Overall weight(KG):6300KG; LxWxH:6700X2100X3150mm; Rated bucket capacity(m³):1.3
Rated load(KG):2800; Dump height(mm):3100/3500; Base to Ground(mm):310;
Wheelbase(mm):2150; Thread(mm):1440;
Engine:4RMAZG/Cummins4BT3.9-100; Rated power(Kw):83/75; Rated speed(r/min):2400;
Tyres:standard:16/70-24 Option:Moving type;
3.0ton wheel loader(ZL30F)
Overall weight(KG):9500KG; LxWxH:7050X2430X3120mm; Rated bucket capacity(m³):1.7-2.5
Rated load(KG):3000; Dump height(mm):3100/3250; Base to Ground(mm):400;
Wheelbase(mm):2660; Thread(mm):1800;
Engine:Deutz Td226B/Cummins6BT5.9-125; Rated power(Kw):92; Rated speed(r/min):2200;
Tyres:standard:17.5-25 Option:Moving type;
4.0ton wheel loader(ZL40F)
Overall weight(KG):12000KG; LxWxH:7200X2425X3350mm; Rated bucket capacity(m³):2-2.2
Rated load(KG):4000; Dump height(mm):3200; Base to Ground(mm):400;
Wheelbase(mm):2750; Thread(mm):1850;
Engine:Cummins6BTA5.9-C180; Rated power(Kw):132; Rated speed(r/min):2200;
Tyres:standard:20.5-25 Option:Moving type;

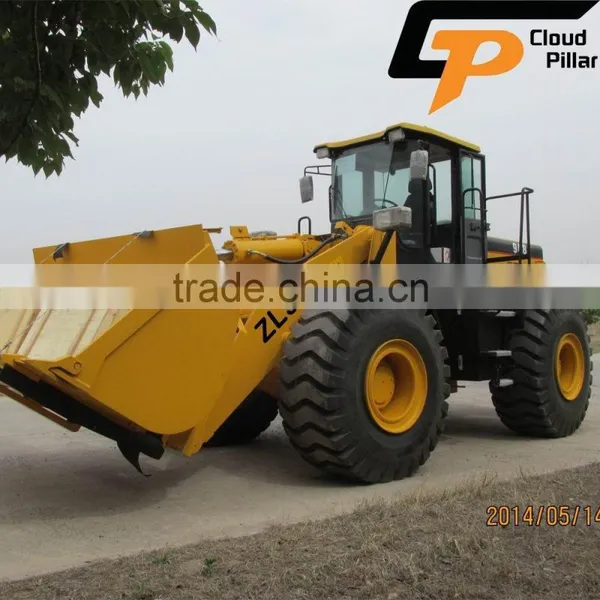

5.0ton wheel loader(ZL50G)
Overall weight(KG):17100KG; LxWxH:7920X3050X3400mm; Rated bucket capacity(m³):3
Rated load(KG):5000; Dump height(mm):3150; Base to Ground(mm):450;
Wheelbase(mm):3200; Thread(mm):2250;
Engine:Stery WD10G220E22/Cummins; Rated power(Kw):162; Rated speed(r/min):2200;
Tyres:standard:23.5-25 Option:Moving type;
6.0ton wheel loader(ZL60G)
Overall weight(KG):18200KG; LxWxH:7965X3050X3470mm; Rated bucket capacity(m³):3.5
Rated load(KG):6000; Dump height(mm):3448; Base to Ground(mm):520;
Wheelbase(mm):3200; Thread(mm):2250;
Engine:Stery WD10G240E21/Cummins; Rated power(Kw):175; Rated speed(r/min):2200;
Tyres:standard:26.5-25 Option:Moving type;
All the type you can compare,and select you like,Or you can email us,we can assist you.
Standard Equipments
1- CE Certificate
2- 4x4 Wheel Drive
3- 4 cylinder Engine
4- Standard Bucket
5- Luxury Cabin
6- Suspended seat
7- Adjustable Steering Wheel
8- Engine heater,Cabin Heater
9- Lock for lifting and steering Cylinder
10-Mechanical Joystick
11-Hydraulic-Press Check System
12-Easy-damaged Spear parts
13-other all costomers' improving with you too.
The International CE Certification

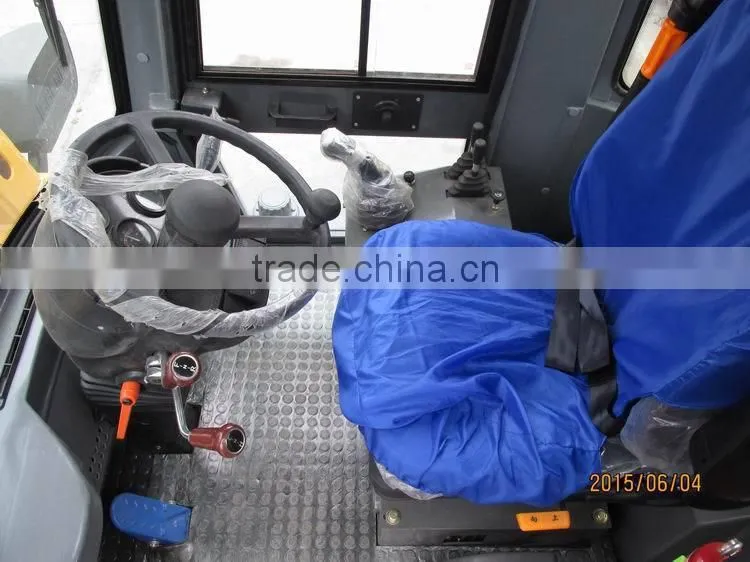

Cabin inner (ZL10-ZL28)
ZL30-ZL60
Attachments
For example ZL20F Operating Specifications
Basic Parameters |
Overall weight(Kg) |
5800 |
L×W×H(mm) |
5500×1900×2850 |
|
Rated bucket capacity(m³) |
1.0 |
|
Rated load(Kg) |
2000 |
|
Dump height(mm) |
3100/3500 |
|
Log fork patulous height |
1300mm |
|
Wheelbase(mm) |
2150 |
|
Tread(mm) |
1440 |
|
Base to the ground(mm) |
310 |
|
Engine |
Model |
YTR4108G92X/Cummins engine |
Type |
In-line arrangement, Water cooling, dir,inject,four-stroke |
|
Rated power(Kw) |
60Kw(81HP)/75Kw(101HP) |
|
Rated speed(r/min) |
2400 |
|
Transmission System |
Model of Torque Converter |
YJ280 |
Type |
3-elements,Single-Stage, Radial-inward Turbine triplex |
|
Gearbox Type |
Fixed-spindle Power Shift |
|
Gear Shift |
2 Gears Ahead,2 Gear Astern |
|
Working system |
Brake System |
Air assisted oil type four wheel brake |
Working pump |
CGB2063 |
|
Steering system |
Type |
Articulated hydraulic steering |
Fuel tank capacity |
80L |
|
Min turning radius(mm) |
4239 |
|
Tyres |
Standard tyres |
16/70-20 |
Optional tyres |
Moving type |

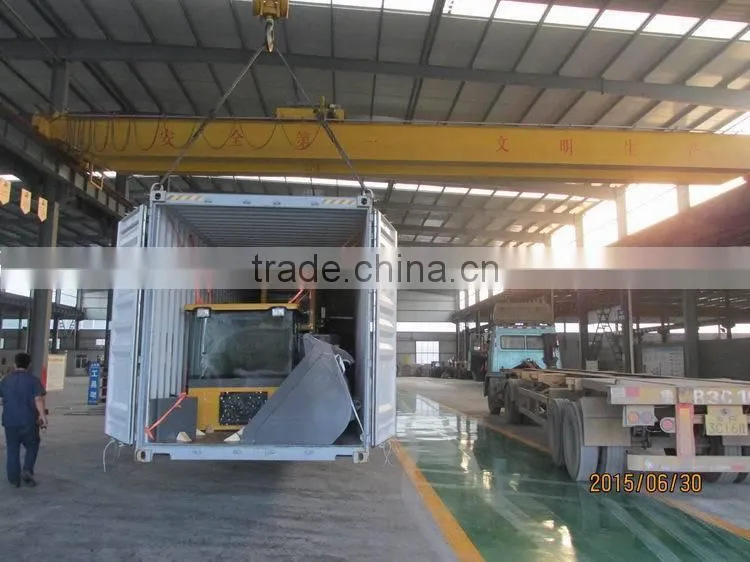

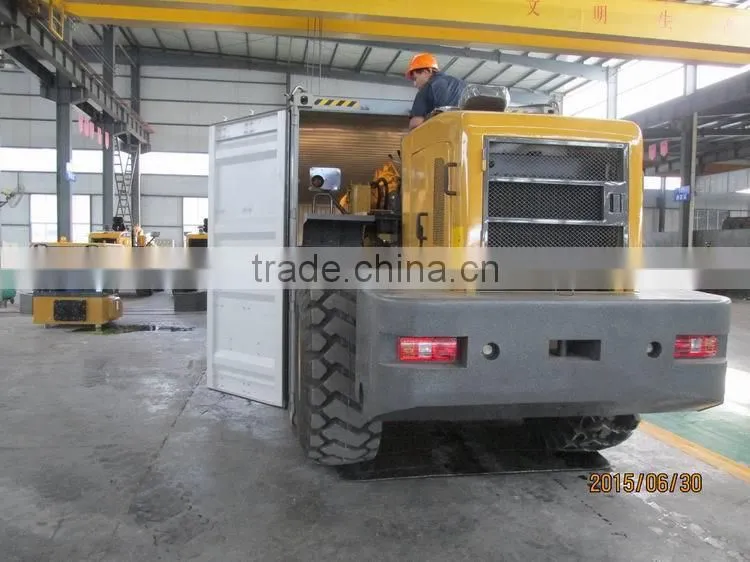

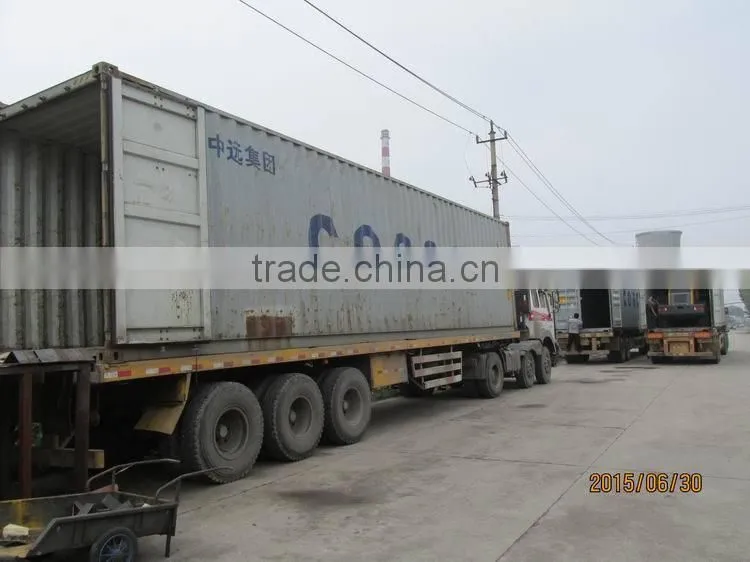

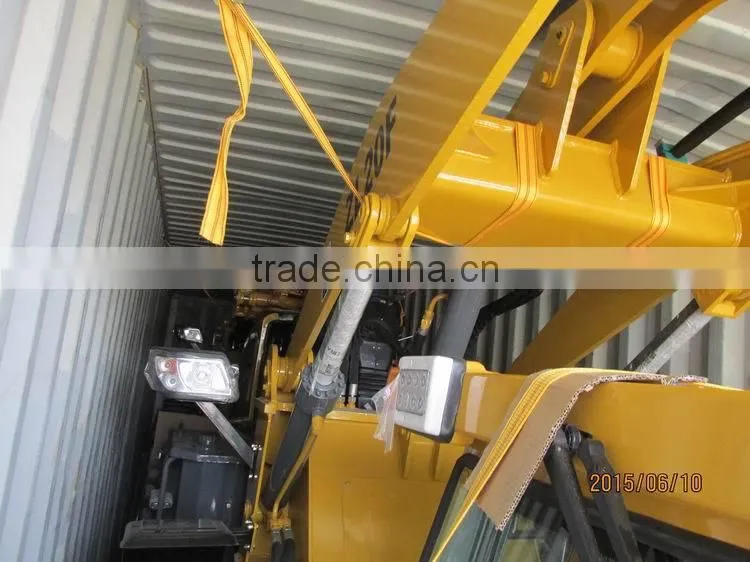

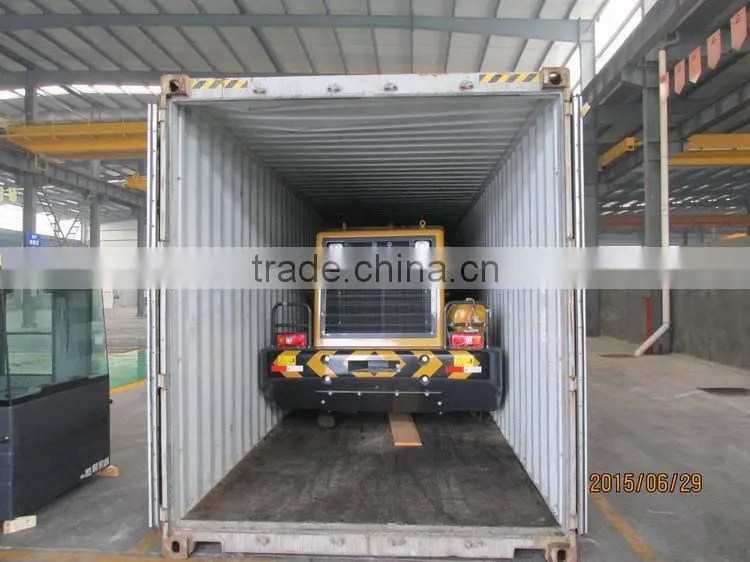

Packing & Shipping
1.-FOR ZL08, 1 unit fit 1x20'GP; 4 units fit 1X40'HQ
-FOR ZL10, 1 unit fit 1x20'GP; 3 Units fit 1x40'HQ
-FOR ZL12, 1 unit fit 1x20'GP; 3 Units fit 1x40'HQ
-FOR ZL15, 1 unit fit 1x20'GP; 3 Units fit 1x40'HQ
-FOR ZL20, 1 unit fit 1x20'GP; 2 Units fit 1x40'HQ
-FOR ZL28,ZL30,ZL40, 3 Units fit 2x40'HQ

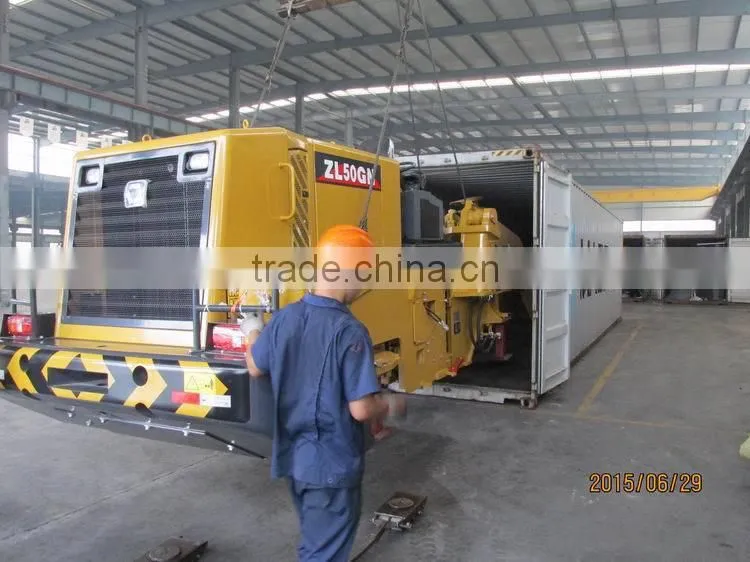

-FOR ZL50,ZL60, 1 Unit fit 1x40'HQ
2. Delivery time: 20 days after receiving your deposit
3. Payment term:30% deposit;70%balance before shipping
Our Services
1. delivery on time
2. 12 months warranty period
3. Communication in time
4. Excellent after-sales service
5. Professional team
6. Competitive price
WHY CHOOSE US? CLOUD PILLAR
1. We try to convey to you the most useful information,
your need is our work!
2. For the integrity of our business philosophy,
we could provide you sound service and security!
3. We have a united team, your satisfaction is our unremitting pursuit!
We mainly manufacture and export construction machinery/agriculture machinery and other machinery,such as multifunction wheel loader,backhoe loader,excavator,farm tractor and so on.
If you have any question on products,please send us your particular needs,we assist you find right wheel loaer at best price.
