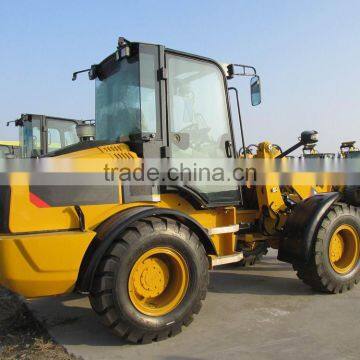

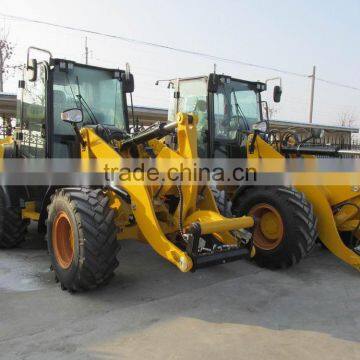

CP300 (H580) China Top Quality Compact Wheel Loader China

FOB Price

US$ 11,000 - 16,000 / Unit

1 Unit(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	CP
Model Number	CP300	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	6170x2040x2695mm	Rated Load	3000kg
Certification	CE ISO ROPS	Warranty	12months
After-sales Service Provided	No overseas service provided

Product Description

Product Application

CP300 (H580) China top quality compact wheel loader for sale with ROPS Cabin and Certificate

Our new type compact wheel loader from German technology,this is high-end wheel loader,high quality cabin,Z-bar Linkage,engine hood,all the parts are in the lead in wheel loaders' field China,

SPECIFICATIONS FOR CP300 WHEEL LOADER
Performance	Model	CP300 (H580)
	Rated loading	3000Kg
	Rated bucket capacity	1.2m3
	Operation weight	5570Kg
	Overall dimension (LxWxH)	6170x2040x2695mm
	Wheelbase(mm)	2475mm
	Tread(mm)	1600mm
	Base to the ground(mm)	520mm
	Max. speed	35km/h
	Min. turning radius	4510mm
	Max. tractive force	≥56KN
	Max. breakout force	≥45.4KN
	Max. grade ability	30°
	Max. dump height	3300mm
	Dump distance	930mm
Engine	Model	YN38GBZ (YUNEI brand)
	Type	Vertical, in-line, water cooled, 4-cylinder, turbo type
	Rated power	76KW / 103hp
	Rated speed(r/min)	2400rpm
	Max. torque	285N.m
	Displacment	3.76L
Transmission system	Torque converter	ZL280
	Gearbox mode	Contershaft, power-shift
	Gear shift	2 forward (1 high speed, 1 low speed), 1 reverse
Drive axle	Main reducing spiral	Circular Arc Bevel gear, single stage
Drive axle	Decelerating mode	Single stage planetary type
Hydraulic system	System working pressure	16MPa
	Boom lifting time	4.8s±0.2s
	Total time	9.2s±0.5s
	Fuel tank capacity	80L
	Function of leveling automatically	Yes
Brake system	Service brake	Hydraulic disc brake on 4 wheels
Brake system	Parking brake	Flexible shaft operated external drum
Tyre	Tyre size	16/70-20
	Front tyre pressure	0.22Mpa
	Rear tyre pressure	0.18Mpa

Main Features

1) Reliable and Robust

2) Convenient Operation

3) Giving great vision at all directions

4) With ROPS and FOPS

5) Technology from German

Detailed Images

Machine Parts

Name: Engine

Brand: Yunnei

Original: China

Famous brand in China,

Main Features

Name: Quick Hitch
Brand: CP
Original: China
New Type (German technology)

Machine Parts

Name: Hinge joint
Brand: CP
Original: China
New Type (German technology)

Main Features

Name: Engine Hood
Brand: CP
Original: China
New Type (German technology)

Our Service

Parts & Service

*To ensure exceptional customer satisfaction, we maintain a large inventory of parts. Our highly trained, experienced service technicians are available to dealers to help keep up with proper maintenance and warranty service procedures.

After-Sales Service

* We have one year warranty,During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.

Packing & Delivery

Packaging
Size	6170 (L) * 2040 (W) * 2695 (D)
Weight	5570Kg
Packaging Details	2 units in a 40'HQ The normal package is 10mm wire and Triangle wood or steel.

Packaging
Size	6170 (L) * 2040 (W) * 2695 (D)
Weight	5570Kg
Packaging Details	The normal package is 10mm wire and Triangle wood or steel. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
