Specifications
35hp 354 4WD farm tractor1.3cylinder engine
2. 35hp farm tractor
3. 4x4 wheel drive
4.different farming implements
35hp 354 4WD farm tractor
1.385 cylinder engine
2. 35hp farm tractor
3. 4x4 wheel drive
4.different farming implements
35hp 354 4WD farm tractor Specification:
Model |
TY304 |
Type |
4WD Wheeled Type |
Length(to the front ballast) |
3030mm |
Width |
1470mm |
Height (to the exhaust vent) |
1900mm |
Front Wheel Tread |
1215 Fixed or 1150-1215 Adjusted |
Rear Wheel Tread |
1300 Fixed or 1300-1350 Adjusted |
Axle Base |
1710mm |
Min. Ground Clearance |
347.5mm |
Structure weight |
1130kgs |
Front ballast weight |
56kgs |
Rear ballast weight |
112kgs |
Rated traction force |
551kgs |
Engine Model |
385 |
Engine Type |
3-Cylinder |
Cooler type |
Water |
Stroke |
4 Stroke |
Rated Power |
22.05KW |
Rated Speed |
2400r/min |
Fuel |
Diesel |
Front Wheel Tyre |
6.00-14 |
Rear Wheel Tyre |
9.5-24 |
Clutch |
Dual-stage clutch |
Steering |
Power steering |
Transmission Type |
8+2 or 8+8 with shuttle gearshift or 16+4 with creeper shift |
Suspension Type |

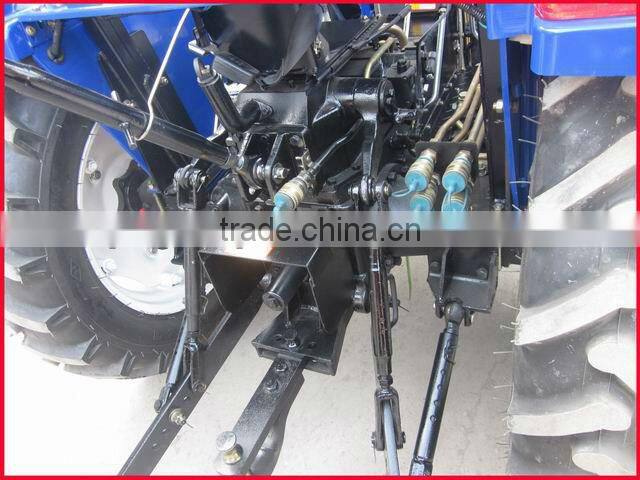

3-point links |
Type and Rev |
Semi-independent Type 540/1000 |
Spline Size |
F35 Rectangle Spline with 6 teeth |

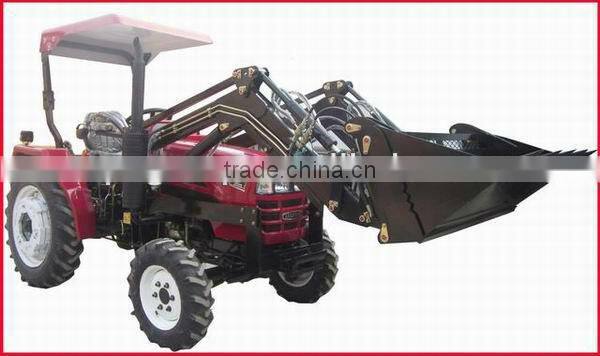

Tractor with 4 in 1 bucket

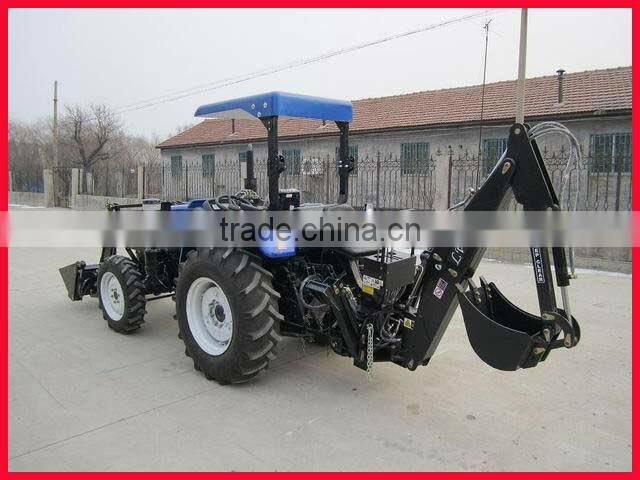

Tractor backhoe

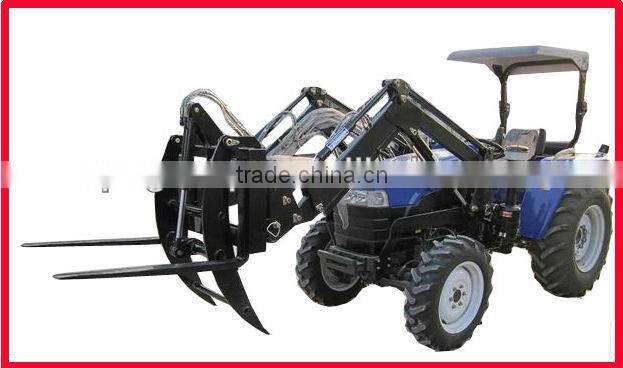

Tractor Log Forks

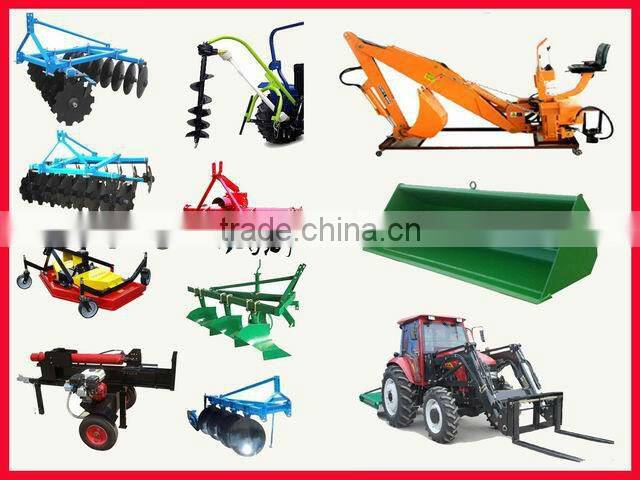

Tractor implements
