TZ-Series Tractor Front Loader
Application:
TZ Series Tractor Front Loader is a kind of mini-type engineering machine fixed on tractors and used for loading. The front loader can be used in a family, farm, storehouse, etc. where the large-scale models are not so available, for transporting incompact materials such as scarification, sandrock, coal, waste,etc., as well as shoving soil, digging, piling, etc.
Features:
1) The front loader, with hydraulic transmission technique and compact structures, is flexible and available in narrow spots where the large-scale machine cannot.
2) It isfixed on the four-wheel drive tractor that has full hydraulic steering and a batch production, with compact structures and reliable transmiting.
3) One hydraulic system is used by the front loader and the tractor's lifting device together, which accords to GB and easy to maintain
4) The front loader can mount various devices according to different demands, such as 4 in 1 buckets, grating cover bucket, pallet handler, timber grab, bale fork and snow blower etc, so as to accomplish different kinds of work successfully.

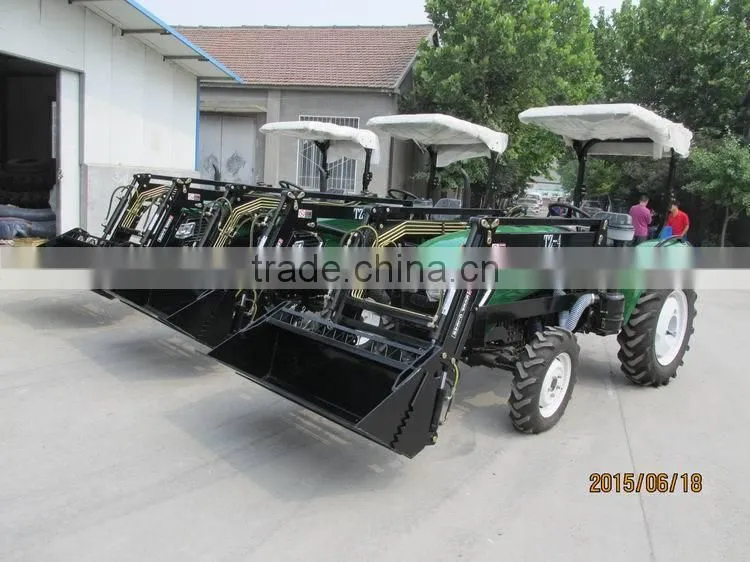

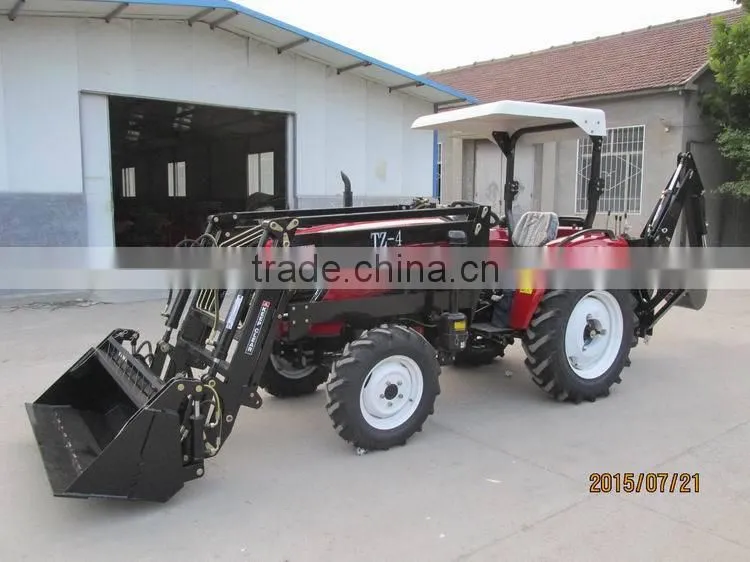

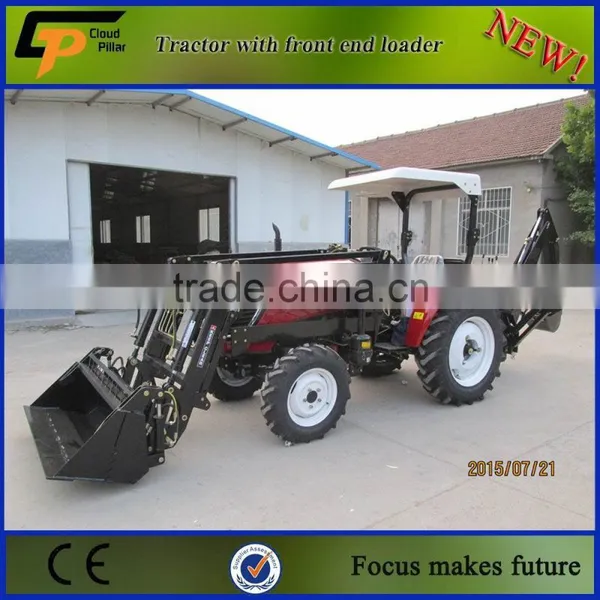

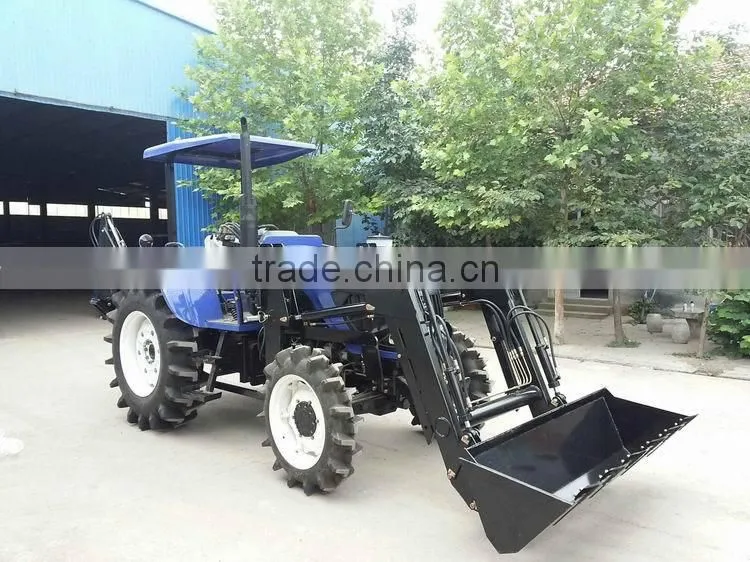

Tractor front end loader with standard bucket

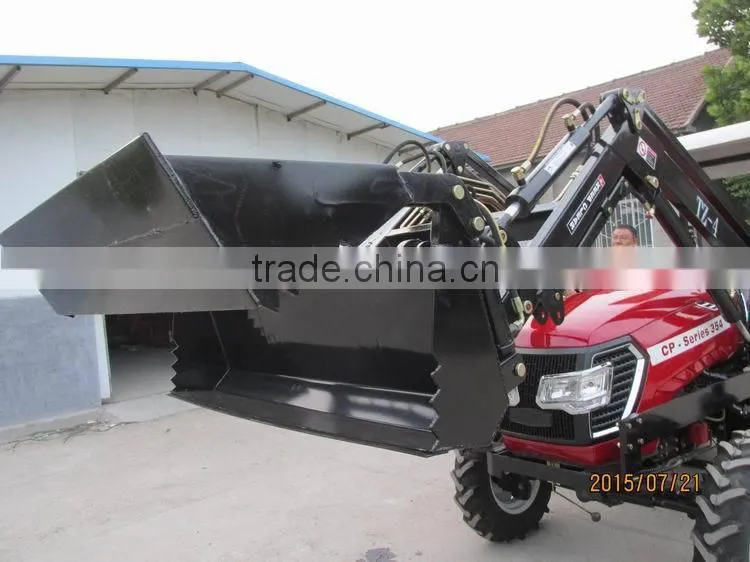

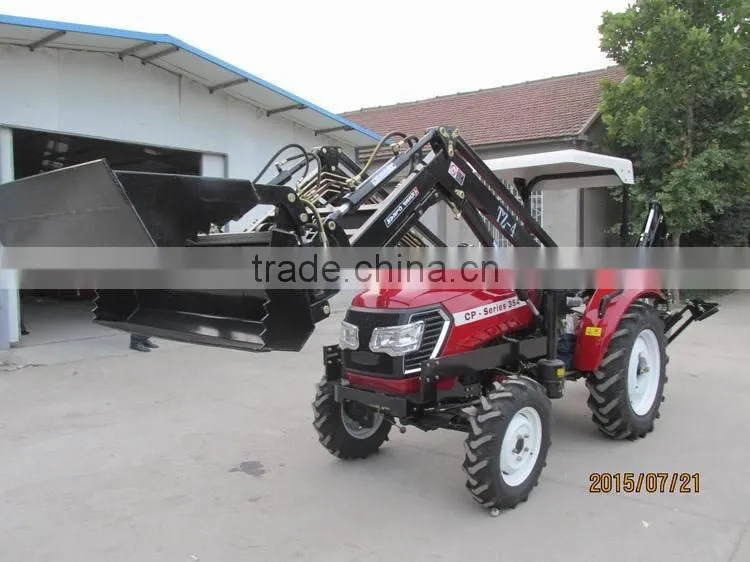

Tracto front end loader with 4 in 1 bucket

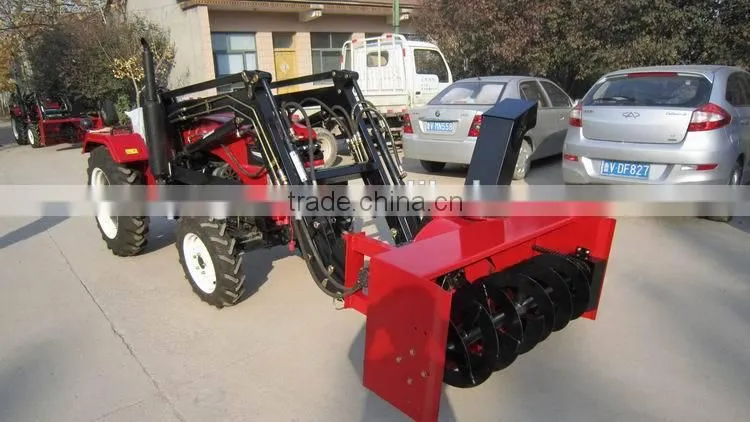

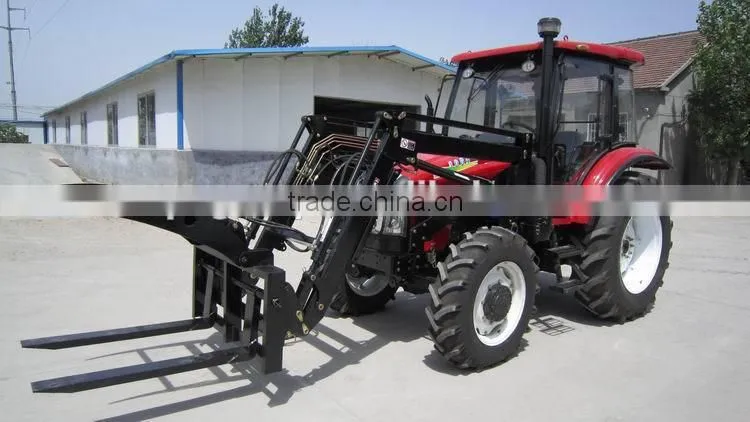

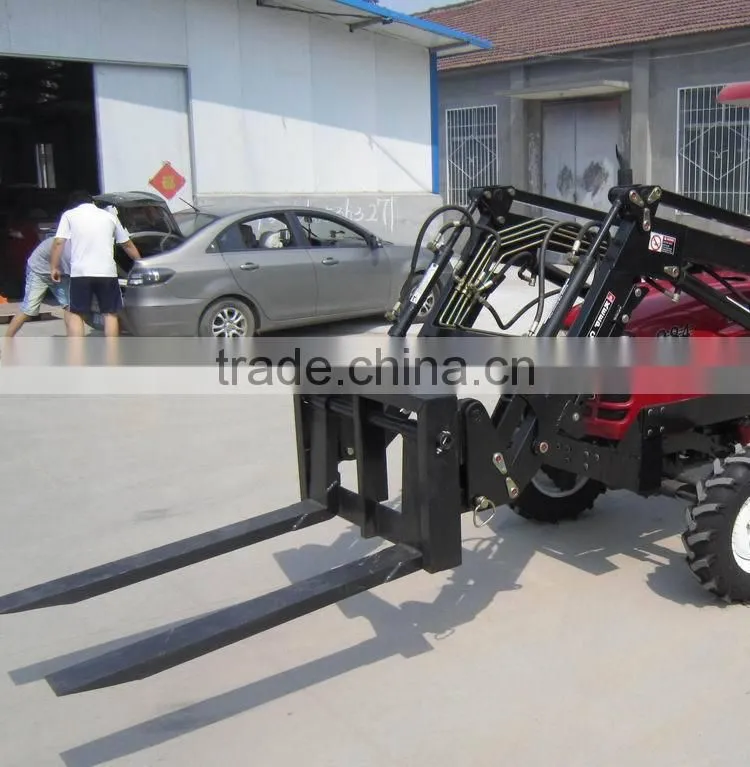

Tractor front end loader with other equipments

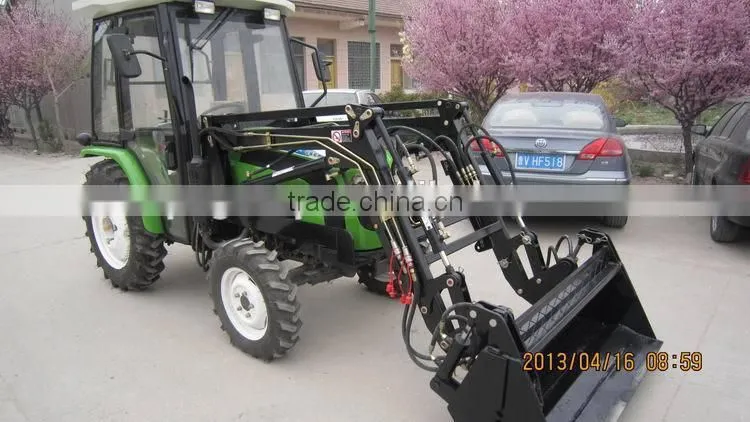

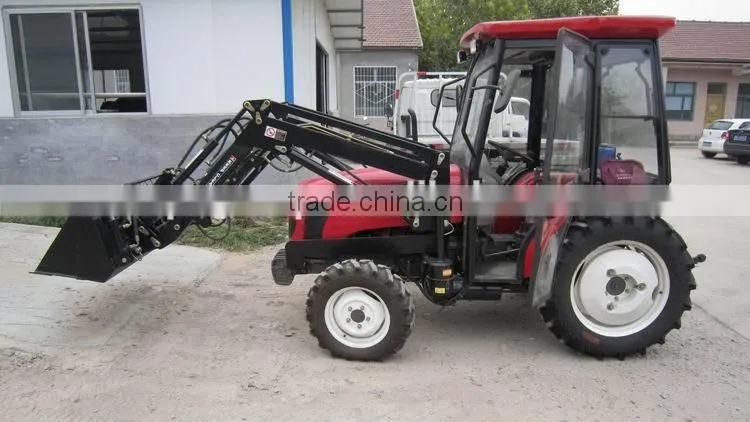

Tractor with cab with front end loader bucket
Front end loader Specifications
Model |
TZ-3 |
TZ-4 |
TZ-8 |
TZ-10 |
TZ-12 |
Matched power |
20-28hp |
30-45hp |
50-70hp |
80-90hp |
100-125hp |
Max. Lift height(mm) |
2360 |
2700 |
3100 |
3200 |
3700 |
Max. dump height(mm) |
1800 |
2000 |
2300 |
2350 |
2800 |
Max. dump distance(mm) |
700 |
900 |
960 |
1000 |
1100 |
Distance from bucket to the center of front wheel(mm) |
1820 |
1930 |
2320 |
2400 |
2500 |
Max. scraping depth(mm) |
100 |
140 |
160 |
160 |
160 |
Max. unload angle(degree) |
47° |
47° |
47° |
46° |
46° |
Bucket rollback angle(degree) |
42° |
42° |
42° |
42° |
42° |
Lifting time to pivot pin(S) |
7 |
7 |
8 |
8 |
10 |
Descending time(S) |
3.5 |
3.5 |
4 |
4 |
10 |
Bucket width(mm) |
1289 |
1482 |
1652 |
1800 |
2100 |
Bucket capacity(cbm) |
0.20 |
0.23 |
0.43 |
0.60 |
0.65 |
Rated lift capacity (Kg) |
300 |
400 |
800 |
1000 |
1200 |
Tractor with front end loader details

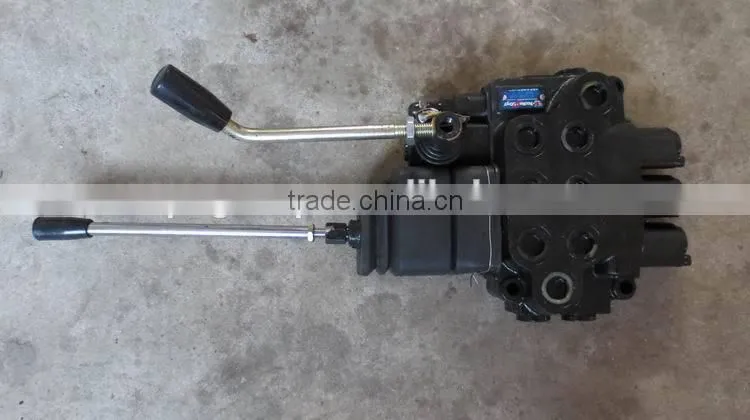

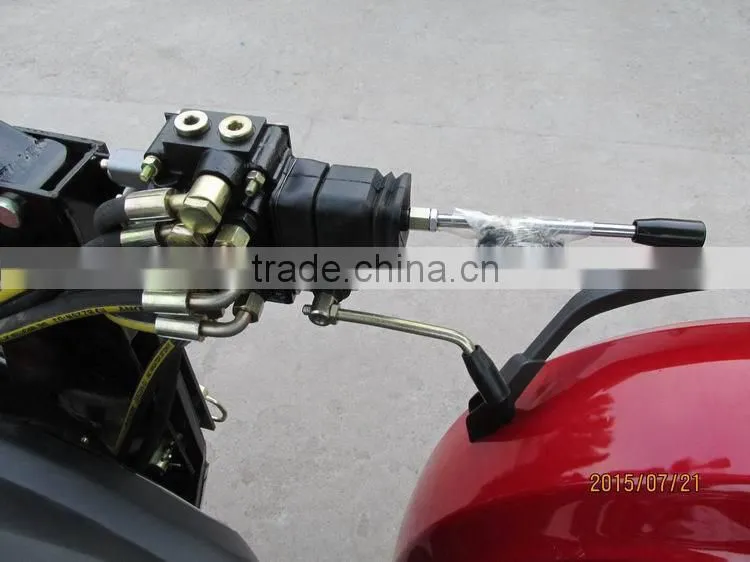

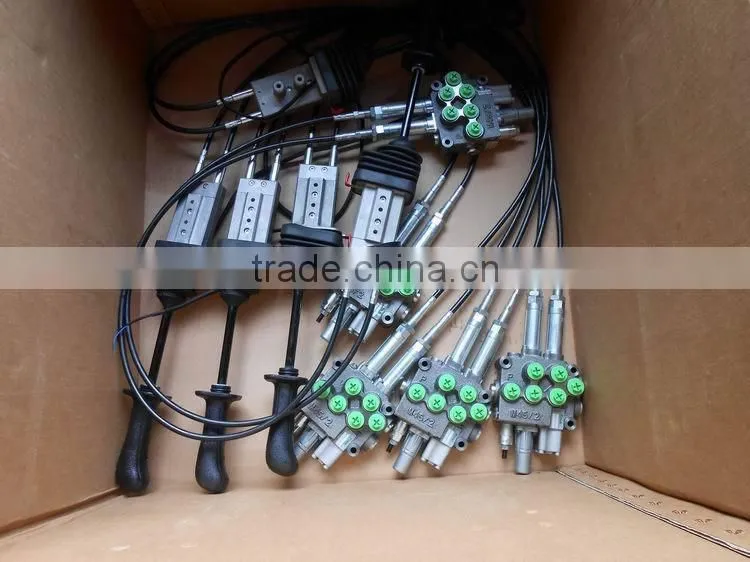

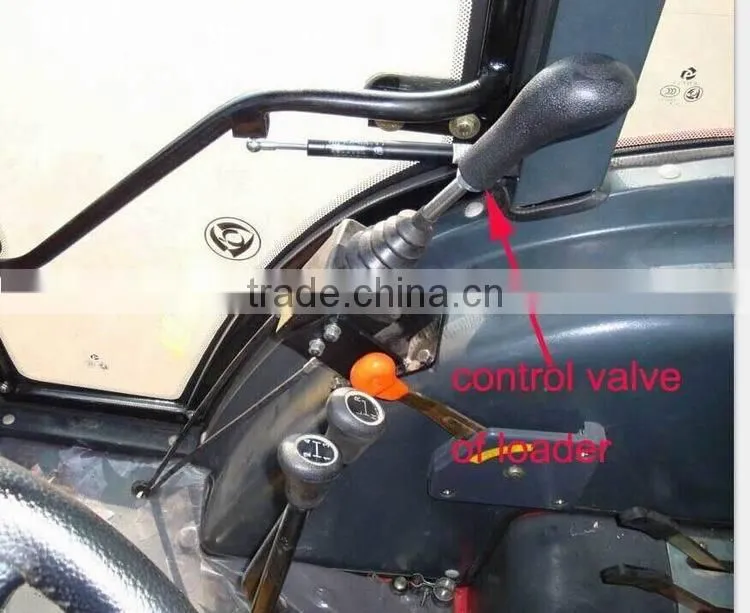

Joystick option
Welcome to contact us for more information and your inquiry shall be highly appreciated!
