4wd farm tractor disc harrow disc plough agricultural tools made in china

FOB Price

USD $480 - $680 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Farm Cultivator	Power Type:	Other, Tractor
Power(W):	9kw-37kw	Certification:	BV, ISO9001	Warranty:	12 months
Use:	cultivation	Place of Origin:	Shandong, China	Brand Name:	CLOUD PILLAR
Model Number:	1BQX	Weight:	180kg	Dimension(LWH):	1.81.50.8m
After-sales Service Provided:	Engineers available to service machinery overseas

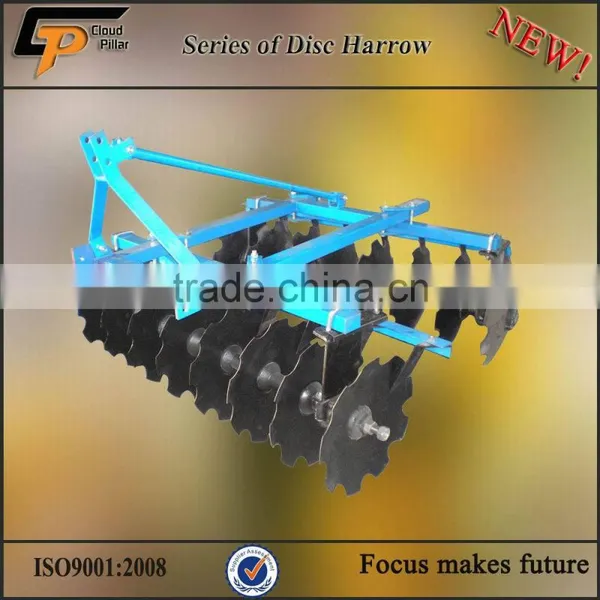

Product name: 1BQX series of light-duty mounted disc harrow

Uses:

Disc harrows are primarily used to chop up soil that has been recently plowed to eliminate

clumps and loosen the soil if it has been packed. They are also used to chop up old crops,

such as cornstalks, to make the land easier to plow and to eliminate clogging in the plowing process.

Specifications:

Model: 1BQX-1.1, 1BQX-1.3, 1BQX-1.5, 1BQX-1.7, 1BQX-1.9, 1BQX-2.3

Working width: 1100-2300mm

Working depth: 120mm

Quantity of disc: 12, 14, 16, 18, 20, 24

Disc diameter: 460mm

Overall weigh: 200-360kg

Matched power: 12-50hp

Linkage: standard three point mounted

Color: yellow,red,blue,green or customize

Pictures:

Technique parameter:

Model	Unit	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3
Working width	m	1.1	1.3	1.5	1.7	1.9	2.3
Working depth	mm	120
Q’ty of disc		12	14	16	18	20	24
Disc diameter	mm	460	460	460	460	460	460
Total weight	kg	200	220	240	260	310	360
Matched power	hp	12	15	25	30~35	35~45	50
Linkage		Standard three-point mounted

Package and Shipment

We also have more other farm equipments, please do not hesitate to contact us for more information.

Weifang CP Machinery Co., Ltd.: Contact nameDavid young; Phone86-536-2100978; AddressWenHua road Weifang,Shandong
