Home > Products > Tractor implements > good quality disc harrow for sale in America
good quality disc harrow for sale in America
- 1000 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Other, Tractor |
Power(W): | 29kw | Certification: | BV, ISO9001 | Warranty: | 12 months |
Use: | cultivation | Place of Origin: | Shandong, China | Brand Name: | CLOUD PILLAR |
Model Number: | 1BJX | Weight: | 390kg | Dimension(L*W*H): | 185*201*132cm |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

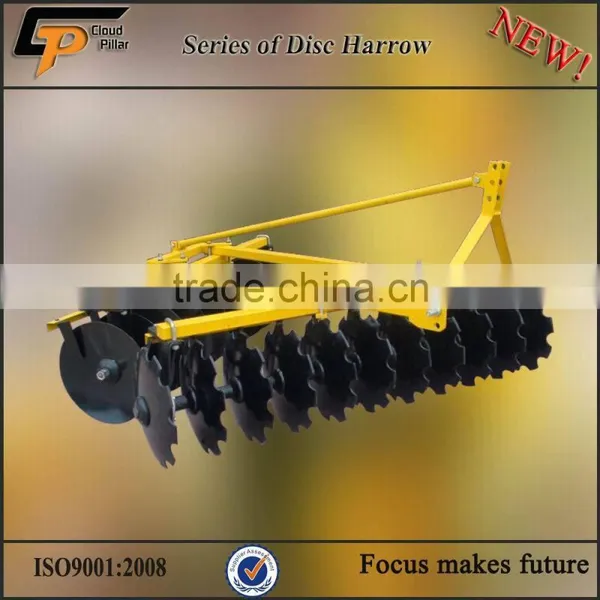

Product name: 1BJX series of middle-duty disc harrow
Uses:
Disc harrows are primarily used to chop up soil that has been recently plowed to eliminate
clumps and loosen the soil if it has been packed. They are also used to chop up old crops,
such as cornstalks, to make the land easier to plow and to eliminate clogging in the plowing process.
Specifications:
Model: 1BJX-1.8, 1BJX-2.0, 1BJX-2.2, 1BJX-2.4, 1BJX-2.5,
Working width: 1800-2500mm
Working depth: 140mm
Quantity of disc: 16, 18, 20,22, 24
Disc diameter: 560/610mm
Overall weigh: 390-760kg
Matched power: 40-85hp
Linkage: standard three point mounted
Color: yellow,red,blue,green or customize
Pictures:
Technique parameter:
Type | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
Overall Dimensions L*W*H(cm) | 185*201*132 | 198*224*132 | 198*247*132 | 278*247*132 | 298*265*132 |
Weight (kg) | 390 | 434 | 463 | 606 | 760 |
Working width(m) | 1.8 | 2 | 2.2 | 2.4 | 2.5 |
Working depth(cm) | 14 | 14 | 14 | 14 | 14 |
No. of disc | 16 | 18 | 20 | 22 | 24 |
Dia. Of disc(mm) | 560/ 610 | 560/ 610 | 560/ 610 | 560/ 610 | 560/ 610 |
Ground clearance(cm) | ≥240 | ≥260 | ≥260 | ≥260 | ≥260 |
Linkage | Standard three point mounted | ||||
Working angle | 14,17,20,23 | ||||
Theoretical Work efficiency(ha/h) | 1.4 | 1.5 | 1.6 | 1.8 | 1.8 |
Matched power (hp.) | ≥40 | 45~55 | 55~65 | 65~75 | 75~85 |
Package and Shipment
We also have more other farm equipments, please do not hesitate to contact us for more information.
