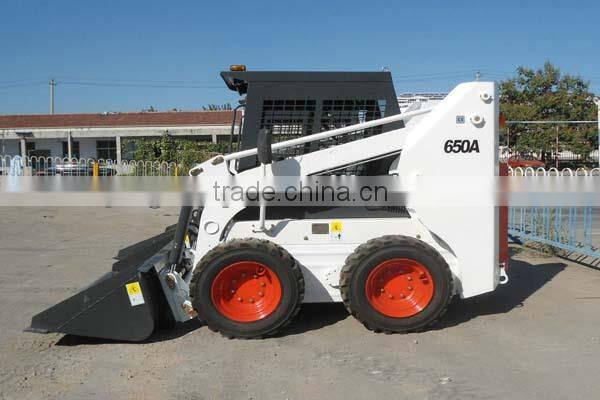

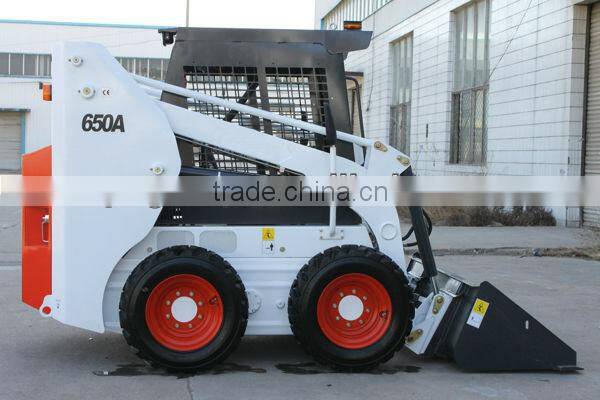

CP650A EPA Euro III Engine Mini Skid Steer Loader for Sale

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

CP650A

Weifang CP Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name CP

Model Number CP650A

Place of Origin Shandong, China

Type Mini Loader

Moving Type Crawler Loader

Dimension(Long * Breadth * High) 2650x1800x1650mm

Rated Load 650KG

Certification CE

Warranty one Year

After-sales Service Provided Overseas service center available

Specifications

Rated capacity 650KG
Diesel EPA ,Euro III engine
Rated power:40kw
Engine model:490 Engine
Tire:10-16.5

Main characteristics

♦ Good performance with competitive price

♦ Turn within its own length

♦ Excellent reach and lift height for truck loading (radial direction)

♦ More than 20 series attachments for option: pallet fork, hydraulic hammer,

backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,

tooth bucket and so on.

♦ Attachment can be used with bobcat type skid steer loader

♦ World famous hydraulic system from America (Sauer pump)

♦ Famous brand engine with EPA or EURO II or III from China and Japan

♦ Multifunctional, maneuverability and reliability

Mini Skid steer loader specification

Technical parameters

General
	1	Model		YZ650A	YZ650H
	2	Rated capacity	kg	650	800
	3	Rated flow	L/min	64	64
	4	High flow	L/min	---	---
	5	Discharge height	mm	2100	2100
	6	Discharge distance	mm	728	728
	7	Power type		Diesel	Diesel
	8	Control type:		Manual control
Dimensions	9	Overall length with bucket	mm	3525	3525
	10	Overall length without bucket	mm	2650	2650
	11	Overall width with bucket	mm	1800	1800
	12	Overall width without bucket	mm	1680	1680
	13	Overall height	mm	2090	2090
	14	Max. operating height	mm	3538	3538
	15	Front turning radius	mm	2090	2090
	16	Front turning radius without attachments	mm	1260	1260
	17	Rear turning radius	mm	1770	1770
	18	Wheel base	mm	991	991
	19	Tread	mm	1460	1460
Performance	20	Max. Speed	km/h	11.2	11.2
	21	Max. load	kg	1060	1200
	22	Lifting type		Radius	Radius
	23	Bucket capacity	M3	0.47	0.47
	24	Total weight with bucket	kg	2900	3000
Engine	25	Engine model		490BPG engine	498PG engine
	26	Power	kw	40	45
	27	Rated speed	rpm	2650	2500
	28	Displacement	L	2.54	3.168
	29	No. of cylinder		4	4
Tire	30	Tubeless tire		10-16.5	10-16.5
