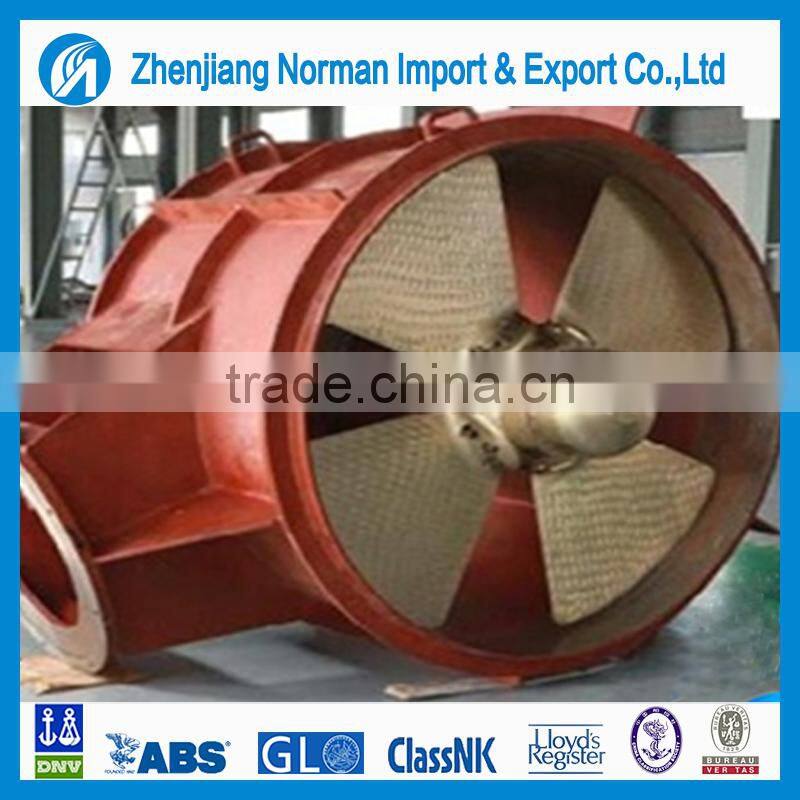

Electric Bow Tunnel Thruster for Tug Boats
- Shanghai/Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Material | Copper | Certification | Other, ISO9001:2000, ABS,BV,CCS,DNV | |
| Blades | 4 | Diameter (mm) | 350-3300MM |
Product Description
Marine electric bow tunnel thruster, namely bow and side thruster is a packed in special propeller of ship bow to improve the ship maneuverability, can give an accurate position. Marine electric bow tunnel thruster is widely used in ocean engineering ships, ferry boats and tug boats. Besides the fixed blade, most of marine electric bow tunnel thrusters are with variable pitch blades.
Advantage:
With Marine electric bow tunnel thruster, it is more convenient for ships to dock, no need tug assistance any more.
The advantage of marine electric bow tunnel thruster is more efficient, environmental, less voice, and easy to operate, and anti-binding shaft.
Standard pack:
The necessary pack of marine electric bow tunnel thruster includes a motor or an oil motor, controllable pitch pump group and gravity tank.
Our Specification:
We could provide marine electric bow tunnel thruster both fixed pitch propeller and controllable pitch propeller.Propeller diameter of marine electric bow tunnel thruster: 350MM to3300MM.
Input power of marine electric bow thruster: from 36KW to more than 3150KW.
ABS, BV, CCS, DNV, GL…etc of this marine electric bow tunnel thruster are available.
The main parameter of adjustable pitch propeller of marine electric bow tunnel thruster:
| Type | Fpp Dia | Input power max. | Input rpm | Frequency | Reduction Ratio | Inner Dia | Length mm | Max. thrust | Propeller rpm | |
| φ.mm | Kw | Hp | rpm | Hz | Z1/Z2 | mm | mm | KN | rpm | |
| SCT35 | 350 | 36 | 49 | 1450 | 50 | 1.105 | 360 | 320 | 5.7 | 1330 |
| 39 | 53 | 1750 | 60 | 6.2 | 1592.4 | |||||
| SCT40B | 400 | 36 | 49 | 1450 | 50 | 412 | 350 | 5.9 | 1330 | |
| SCT40 | 48 | 65 | 1.191 | 7.6 | 1234.8 | |||||
| 52 | 71 | 1750 | 60 | 8.2 | 1478.4 | |||||
| SCT45B | 450 | 48 | 65 | 1450 | 50 | 462 | 400 | 7.9 | 1234.8 | |
| SCT45 | 60 | 82 | 1.333 | 9.5 | 1102.5 | |||||
| 65 | 88 | 1750 | 60 | 10.4 | 1320 | |||||
| SCT50B | 500 | 60 | 82 | 1450 | 50 | 515 | 450 | 9.9 | 1102.5 | |
| SCT50 | 75 | 102 | 1.471 | 12 | 999.6 | |||||
| 80 | 109 | 1750 | 60 | 12.6 | 1196.8 | |||||
| SCT60B | 600 | 75 | 102 | 1450 | 50 | 615 | 540 | 12.3 | 999.6 | |
| SCT60 | 105 | 143 | 1.8 | 16.8 | 816.6 | |||||
| 115 | 156 | 1750 | 60 | 18.4 | 977.8 | |||||
| SCT70B | 700 | 105 | 143 | 1450 | 50 | 715 | 650 | 17.3 | 816.6 | |
| SCT70 | 140 | 190 | 2.077 | 22.4 | 707.8 | |||||
| 150 | 204 | 1750 | 60 | 24 | 847.4 | |||||
We are able to design and manufacture marine electric bow tunnel thruster according to your requirement. Your inquiry is welcome.
