Home > Industrial Equipment & Components > Filtration Equipment & Parts > Machine Oil Purifier > Marine Automatic Fuel Oil Supply Unit
US$ 1 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Flow:
0.6-3M3/H
Working Pressure:
0.5~1Mpa
Brand Name:
HS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Jacket Water Heating UnitUS$ 1 - 2,000MOQ: 1 Set -
Marine Semi Automatic Fuel Oil Supply UnitUS$ 1 - 2,000MOQ: 1 Set
-
Marine and Offershore Scavenge Air Box Drain TankUS$ 1 - 2,000MOQ: 1 Set
-
100-1600mm Marine Negative Pressure Flex DuctUS$ 100 - 200MOQ: 1 Set
-
Marine Seawater FilterUS$ 100 - 100MOQ: 1 Set
Flow
0.6-3M3/H
Working Pressure
0.5~1Mpa
Brand Name
HS
Model Number
FOSU
Power(W)
1000-7000kw
Dimension(L*W*H)
2300*1200*1800
Weight
1780
Certification
ISO
After-sales Service Provided
No overseas service provided
Specifications
High thermal efficiency, compact structure, beautiful appearance, and cutting down the shipbuilding period.Marine automatic fuel oil supply unit
Application
The fuel oil supply and booster module is used for fuel oil system including land power station and marine main engine, auxiliary engine burning high-viscosity heavy fuel oil.
The fuel oil supply and booster moduule is pressure-style fuel oil supply system. It has high thermal efficiency, compact structure, beautiful appearance, and cutting down the shipbuilding period. The fuel oil supply unit is provided with automatic back-flushing of filter, automatic viscosity control, automatic pump alternative, automatic exhaust, PLC auto/hand control, automatic error alarm, and so on function. It is the essential equipment of vessels driving device making distributed central monitoring.

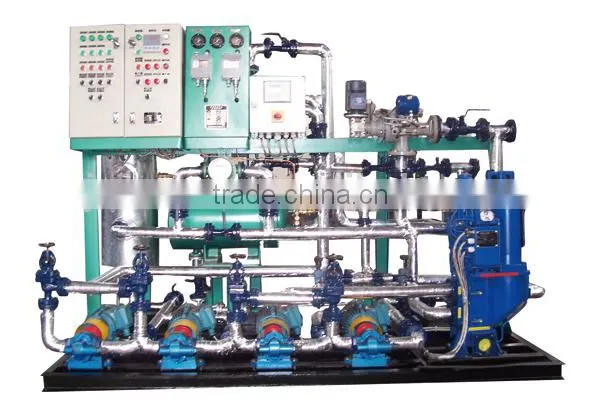

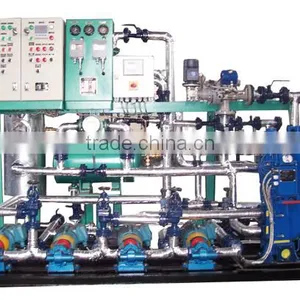

Marine automatic fuel oil supply unit
Principle Description
The fuel oil supply and booster module is composed of oil supply pumps, circulating pumps, flowmeter, mixing tank, primary fuel filter, self cleaning fuel filter, fuel oil heater, fuel oil viscosity control system, PLC electric controller, instruments, valves, attachments, and so on.
The heavy fuel oil was heated to more than 80℃ in the daily oil cabinet and that enter the inlet of fuel oil supply unit, by primary fuel filter. Then the fuel oil is supplied to mixing tank by supply pumps, by mixture with main engine return oil circulating pump have increased the pressure, then to the heater to reduce the viscosity, self cleaning filter finish filtering, the heavy fuel oil heating temperature is controlled by viscosity control system, then the fuel oil fitting for main engine enter the main engine.
Marine automatic fuel oil supply unit
Marine automatic fuel oil supply unit
