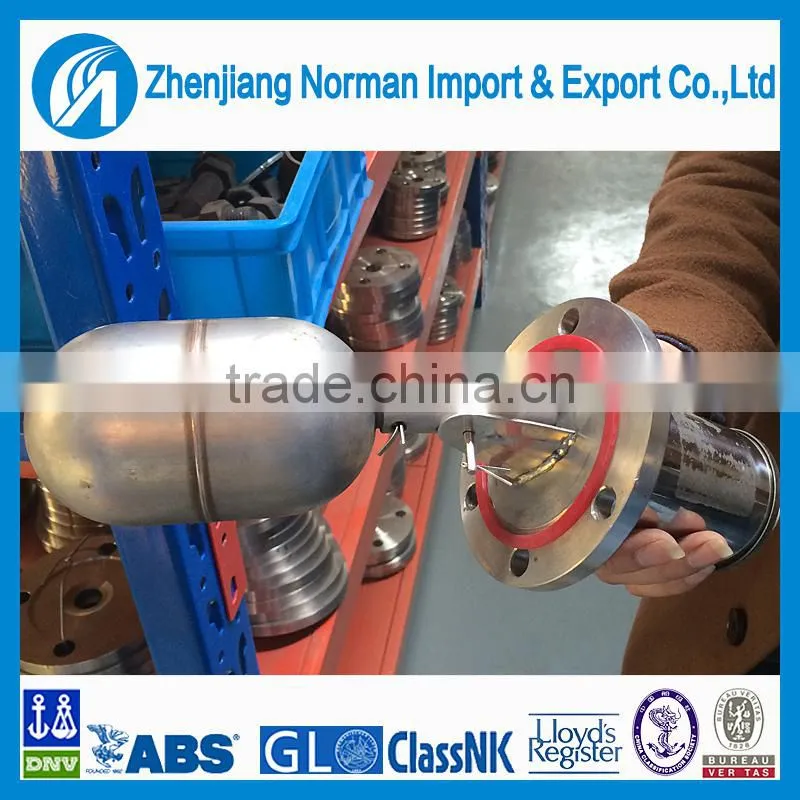

Side-mounted float liquid level switch
float level switch
No standby power requirement
Long service life
stable operation
simple installation
Operation Principle
UQK type magnetic float ball liquid level switch is composed of reed and magnetic float ball. When the float ball rises or falls with the liquid to the level of the switch, the magnetic forces of magnetic witch inside of the float ball will cause the reed switch to turn On or Off. No Mechanical wear. No other power supply.
Technical parameters
connection: DN50/RF/PL or as customer's requirement
insert length: 80~300mm
switching state: SPDT
switch No.: 1 switch
max switch voltage: 250VAC 230VDC
max switch current: 0.6A(SPDT); 2A(SPST)
max switch capacity: 0.6A:60W ; 2A:200W
life time: ≤1x109
tolerance: ±8±2 mm
transmitting: above2000mm
medium density: above 0.5g/cm3
working pressure: PN2.5~PN160
working temperature: -40~80°C; -40~120°C
high temperature type: ≤150°C
float ball: ≤6.3MPa=φ45; above6.3MPa=65
material: 304
electrical connection: M20x1.5 female thread
Horizontal mounting angle ≤±10°
protection class: IP65
explosion-proof: Exia II CT5 ExdIICT5
Specifications
1.No standby power requirement. No maintenance
2.Long service life, stable operation, simple installation
Packaging & Delivery
Packaging Detail: |
Carton |
Delivery Detail: |
7days |
Place of Origin: |
China (Mainland) |
Brand Name: |
|
Model Number: |
UQK-01/02/03 |
Material: |
Stainless steel |
Temperature: |
-25-350 C |
Contact Capacity: |
AC220V 1A, DC100V 2A |
Pressure: |
0-2.5MPa |
|
|
|
