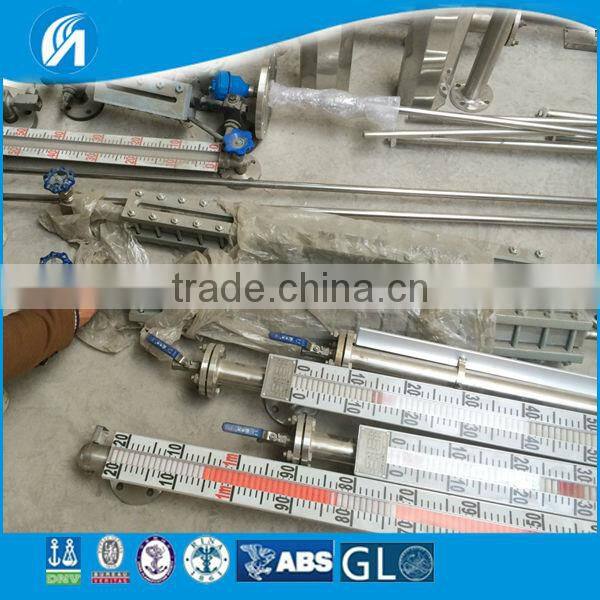

Good Quality Glass Level Marine Gauge

Specifications

Marine gauge
includes transmitting light and reflecting
Material:Carbon steel
temperature:200deg.C
diameter:DN20,25,40

Good quality glass level Marine gauge

gauge
includes transmitting light and reflecting
Material:Carbon steel
temperature:200deg.C
diameter:DN20,25,40

Specifications

1.Side mount type magnetic float level meter
2.Measuring rang(500~17000..)mm
3.for the place of corrosion medium and high temp

Summary :

HG5 Glass plate level meter is made according to standard HG5-1364-80, featured with simple structure,convenient maintenance,safety,reliability and other characteristics and widely used to measure the liquid level in petroleum, chemical industry and other industrial areas.

Structure Principle :

The installation flange on the upper and lower end of level meter connected with vessel to compose a communicating vessel,the actual level height in the vessel can be read directly through the glass.

Structure of level meter mainly includes transmitting light and reflecting.

There are safety steel balls installed in the upper and lower valve, when the glass plate damages accidently,the steel balls under the pressure in the vessel will automatically seal to stop the liquid flowing out.

Quick Details

Place of Origin:	Jiangsu China (Mainland)	Brand Name:		Model Number:	HG5
working pressure:	customized	working temperature:	≤200deg.C	diameter:	DN20,25,40
Material:	Carbon steel,SS304,316,316L	Type:	reflex,transparent	valve closed DP:	≥0.2MPa
steam jacket connector:	G1/2" male thread	recycled water jacket:	G3/4: male thread	measuring range:	300~2000mm
drain valve:	ball valve,needle valve

Technical Parameter:

Table 1

Measuring Range:500,800,1100,1400,1700...(mm)

Working Pressure:2.5,4.0,6.3MPa;0.6MPa(for R type)

Working Temperature:(-20~250)°C

Valve closed automatic pressure:≥0.2MPa

Process Connection:HGJ46-91 DN20 PN4.0 or PN6.3 convex surface

Flange other standards(such as GB,HG,JB/T,ANSI,DIN

etc),can be customized in ordering.

Liquid Touching Material:Heat-resistant carbon steel;stainless steel

Flow range:300~2000mm

Type Selection:

HG5-	Glass Plate Level Gauge
	A	Flat flange
	B	Raised surface flange
		T	Transparent					Basic Type
		R	Reflex
				Nominal Pressure				Rated Pressure
					Flange Size
					I	Carbon steel		Main Materials
					II	SS304
					III	SS316,316L
							L=mm	Measuring Range
