PE Hose reel irrigation machine.
1.From hose diameter 40,50,65,75,90mm.
2.Different length from 200m to 400m.
3.with Water Turbine Drive, Galvanized Finished
4.Working pressure: 3.5Bar to 10 Bar.
The JP series single sprinkler reel sprinkling machine is able to walk by itself by taking advantage of the kinetic energy of pressure water.
Product Details:
| Item No. | JP65 JP75 JP90 JP100 |
| Pipe dia(mm) | 65, 75, 90, 100 |
| Sprinking width(m): | 47-90 |
| Sprinkling range(m): | 200-400 |
| Inside pressure(MPa): | 0.4-1.0 |
| Area under control (ha): | 13-27ha |
Application
Farm land sprinkling
Vegetable and fruits sprinkling
Graze sprinkling
Sugar cane sprinkler
Dust removing in electricity Plants
Dust removing in docks
......
Technical Parameter:
| MODEL NO. | PE HOSE DIA | PE HOSE LENGTH | FLUX | WORKING PRESSURE |
| JP serial | mm | m | m3/h | bar |
| JP65-220TX | 65 | 200 | 13-32 | 3.5-10.0 |
| JP65-250TX | 65 | 230 | 13-32 | 3.5-10.0 |
| JP65-300TX | 65 | 270 | 13-32 | 3.5-10.0 |
| JP65-340TX | 65 | 300 | 13-28 | 3.5-10.0 |
| JP75-200TX | 75 | 180 | 13-50 | 3.5-10.0 |
| JP75-250TX | 75 | 220 | 13-50 | 3.5-10.0 |
| JP75-300TX | 75 | 270 | 13-38 | 3.5-10.0 |
| JP75-350TX | 75 | 320 | 13-38 | 3.5-10.0 |
| JP75-400TX | 75 | 370 | 13-30 | 3.5-10.0 |
| JP90-230TX | 90 | 210 | 17-65 | 3.5-10.0 |
| JP90-250TX | 90 | 220 | 17-65 | 3.5-10.0 |
| JP90-280TX | 90 | 250 | 17-65 | 3.5-10.0 |
| JP90-300TX | 90 | 270 | 17-65 | 3.5-10.0 |
Accessories:
Hydro Turbine
Multi-Functional Gear Box
Guding Mechanism
Pe Water Pipes
Automatic speed Regulation Mechanism
Sprinkler Wagon
Production:

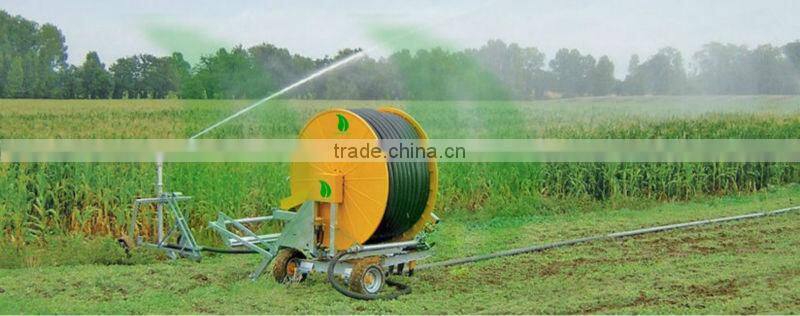

Working Picture:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
Mobile/WhatsApp/WeChat: +86-133 4596 9968
TradeManager: cn209737435
Skype: nbevergreen04
Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services.
2. 10 years manufacturing experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice.
6. OEM/ODM services.
7. Accept sample order before Mass Order.
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese. etc.)
