Irrigation Disc Filter Mesh

 8217- 3" Irrigation disc filter mesh

  Parameter:

Features & Application:

Manufactured from reinforced engineering plastic material.

Easy to open and clean.

 Applications

Ideal for water filtration of micro irrigation systems, landscape irrigation systems and home gardens.

 Usage:

a. excellent for removing hard particulates from water, such as sand

b. not so great at removing organic materials such as algae, mold, slime, and other unmentionables!

Cleaning:

by flushing them with a stream of water or removing the screen and cleaning it by hand.

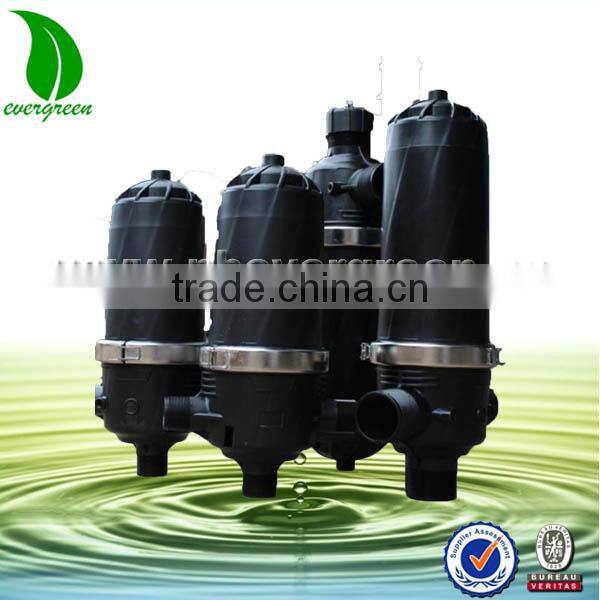

Product picture:

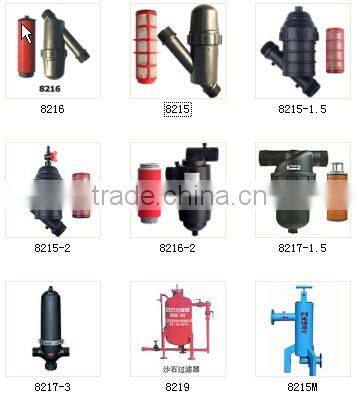

The Similar Items We can offered

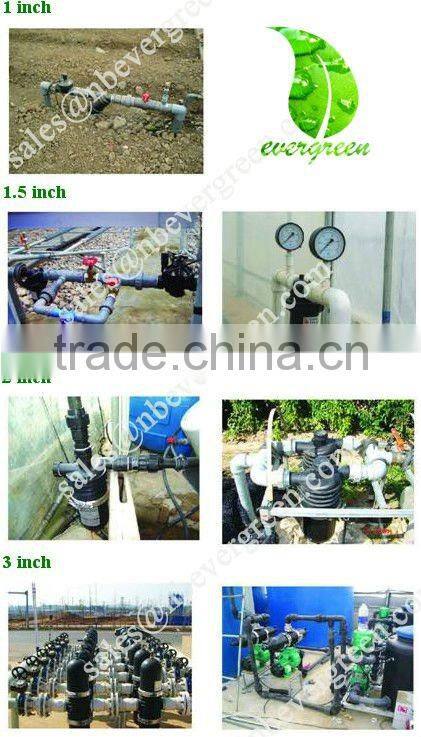

The working picture

Disc Filters - How they work:

1. As the name implies, the filter consists of a stack of discs.  These discs are like hollow poker chips with serrations that cause the discs to interlock when the discs are stacked.

2. Water enters the filter chamber on the outside of the discs.  The water then flows through the disc pack between the interlocked serrations of the discs.  After flowing through the serrations the water then flows through the hollow center of the discs and out to the field.

Disc Filters - Advantages:

1. LOW WATER WASTE - The length of time advantage translates to saving hundreds of gallons of water.  If water flow is 50 gpm, the sand filter system in 20 minutes would use 1,000 gallons to wash.  The disc filter would use 75 gallons.

2. SPACE SAVING - The disc filter system requires about 1/3 the space of a sand filter system.

3. LESS MAINTENANCE - Sand must be replaced periodically, and if the sand filter is abused and not backwashed regularly, the sand will require replacement quickly.  Disc filters last for many years without requiring replacement because the plastic discs are highly resistant to deposits.

4. LESS PRESSURE REQUIRED - Disc filters require less pressure to back wash than sand filters.  This may allow a smaller supply pump to be used.

5. RESISTANCE TO ABUSE - Failure to back wash a sand filter may lead to complete failure of the sand media requiring that the media be replaced.  Failure to back wash a disc filter will lead to low water flow but when the disc packs are backwashed they immediately clean up and are easily restored to service.

6. FAST CHANGE - The filtration abilities can be quickly changed simply by changing the disc pack to the size you wish to filter down to.  Disc packs are available from 5 microns up to 400 microns.
