Specifications
1. 2 Yeas warranty2.CE approved
3.Easy change blades
4.Round flywheel house
5.Best after sale service
Wood chips: Initially, wood chipping was mainly used for the efficient removal of branches and green waste in areas such as parks and woodland, but as wood chip came to be regarded as an important natural resource, wood chipping has taken on a new, ecomomic dimension. Wood chip is valuable if the quality is consistent and meets designated requirements. DWC wood chippers ensure these requirements are met. Our entire product range is designed to deliver high quality wood chip and on many of our machines the knives can be adjusted to produce different sizes, depending on what the wood chip wii be used for. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production. In addition, wood chip is extensively used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays.
Main models:
DWC-18hp, DWC-22hp, DWC-40hp engine wood chipper.
Features:
-CE approved (Reference No.: OSE-11-0804/01)
-Power: Yanmar diesel engine (18hp and 22hp), Changchai diesel engine (40hp)
-Max. diameter wood chipping: 200mm
-High speed tyre: Max. speed 140km/hour
-The wood chips are highly suitable for making wood pellets and heating purposes
-Round flywheel hourse, easy to change blades. The blades can use 24 months continuous.
Specifications:
| Model | DWC-18 | DWC-22 |
| Engine | 18hp Yanmar diesel engine | 22hp Yanmar diesel engine |
| Chipper capacity | 8"/200mm | 8"/200mm |
| Feed method | Hydraulic feed | Hydraulic feed |
| Rotor disk diameter | 640mm | 640mm |
| Rotor disk weight | 85kg | 85kg |
| Knives number | 1 stationary, 2 rotor knives | 1 stationary, 2 rotor knives |
| Hopper discharge dimension | 1200x1400x1100mm | 1200x1400x1100mm |
| Feed hopper inner opening | 200x220mm | 200x220mm |
| Discharge hood height | 1800mm | 1800mm |
| Rated RPM | 1080 | 1080 |
| Weight | 630kg | 690kg |
| Efficiency | 9-11 cbm/hour | 10-13 cbm/hour |
| Tyre | high speed tyre | high speed tyre |
| Chips size | 2-20mm adjustable | 2-20mm adjustable |
|
Discharge hood rotates
|
360 degrees | 360 degrees |
|
|
Engine & Power:

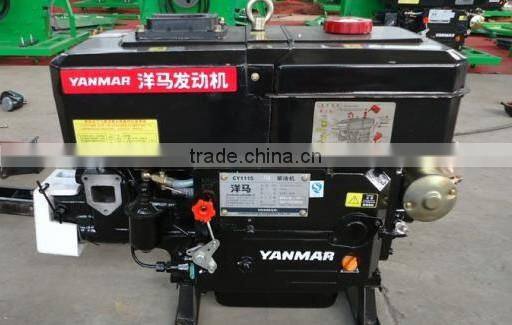

| Model | CY-1115 Yanmar diesel engine(Made in Japan) |
| Aspiration | NA |
| No. of cylinders | Single cylinder |
| Cyl.borexstroke | 70x74mm |
| Displacement liter | 0.854 |
| Rated output | 13.3(18)/3600 kw(hp)min-1 |
| Cooling system | Radiator |
| Start method | Electric start |
| Dry mass (back plate) | 87kg |

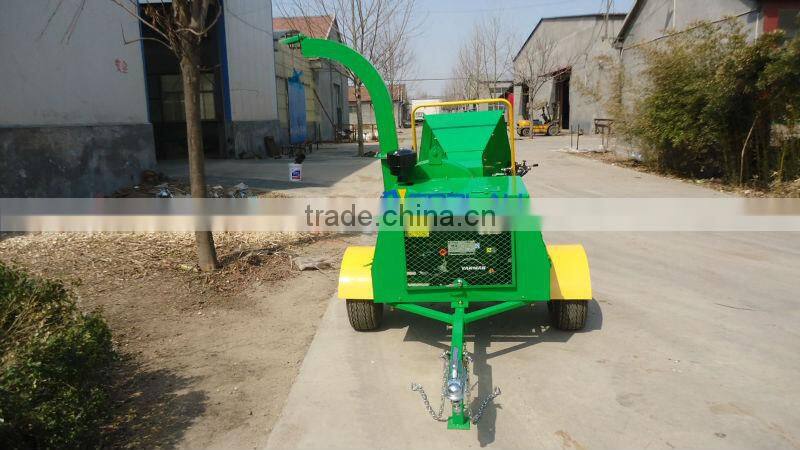

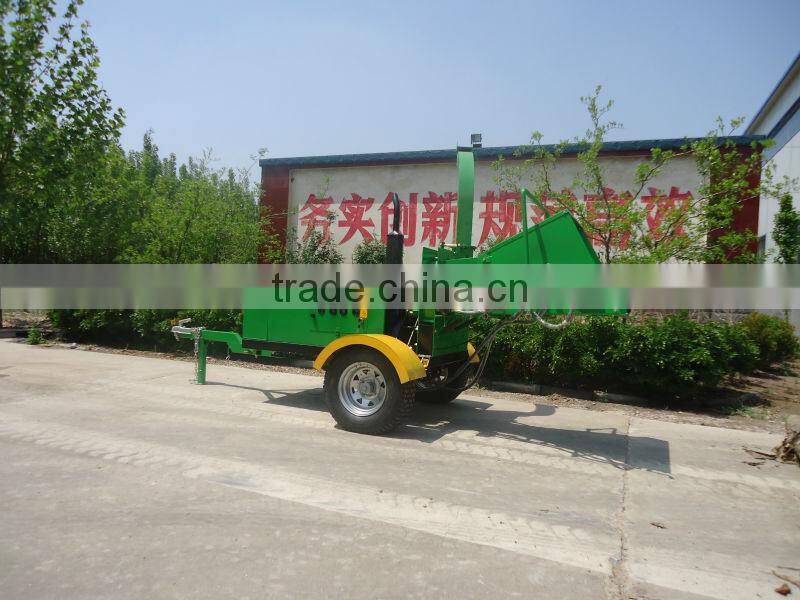

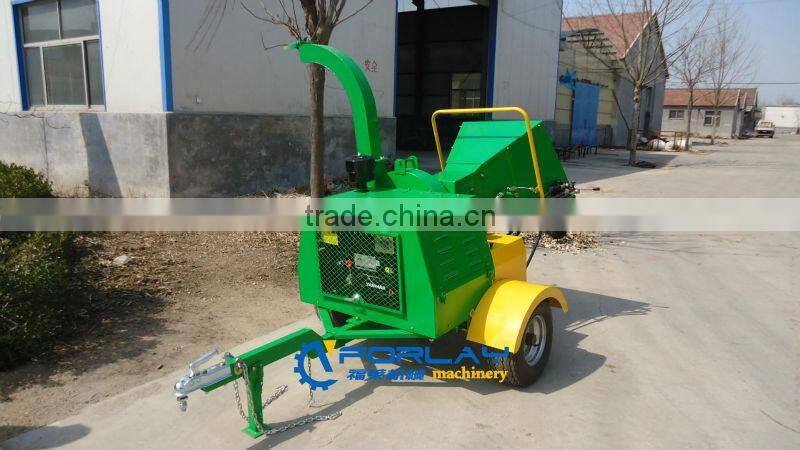

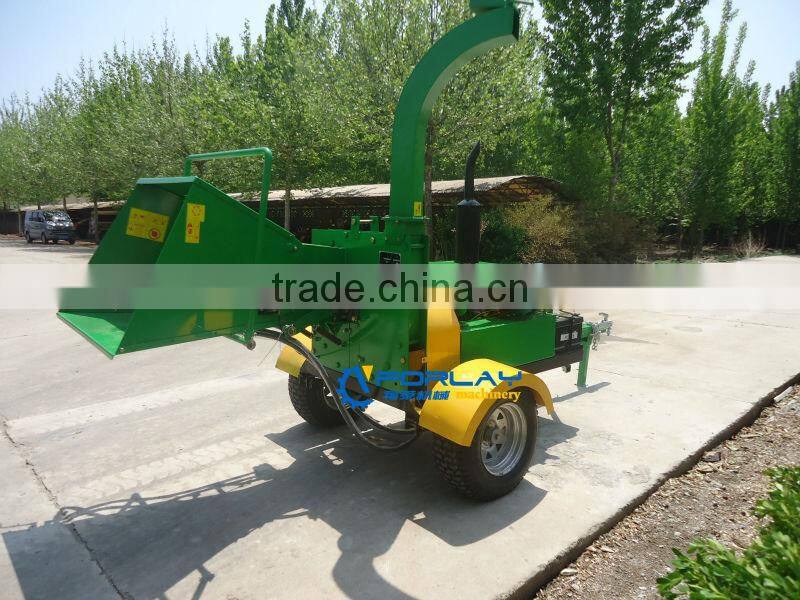

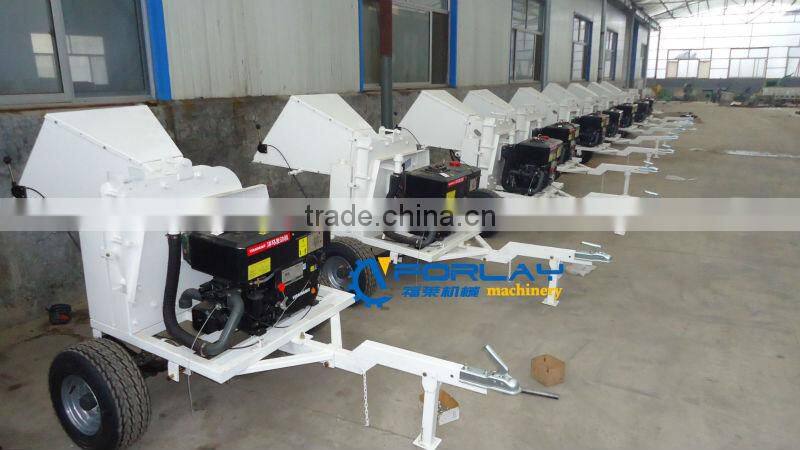

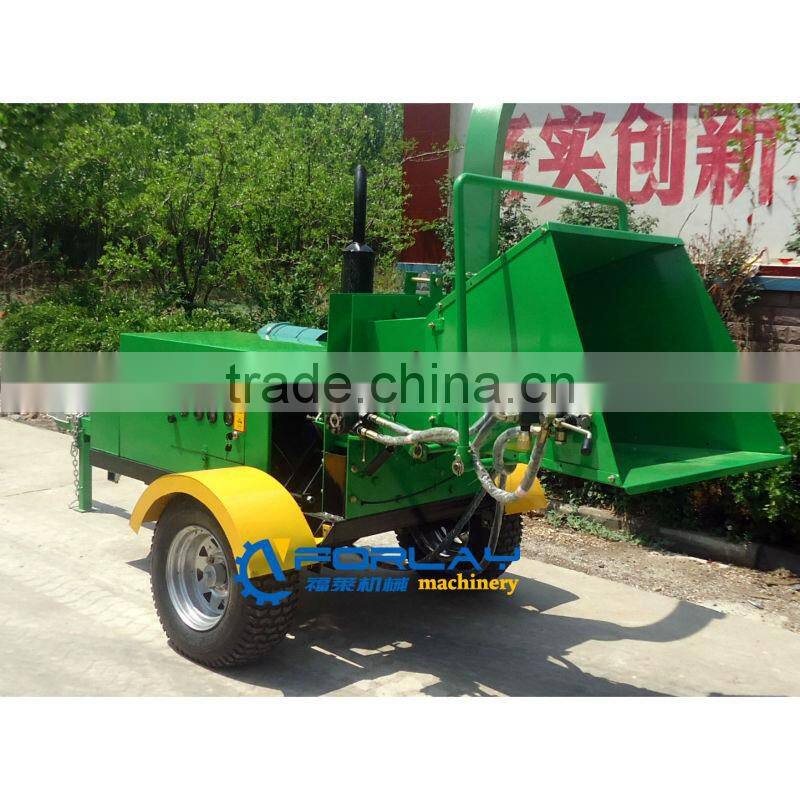

Reference photos |
|
