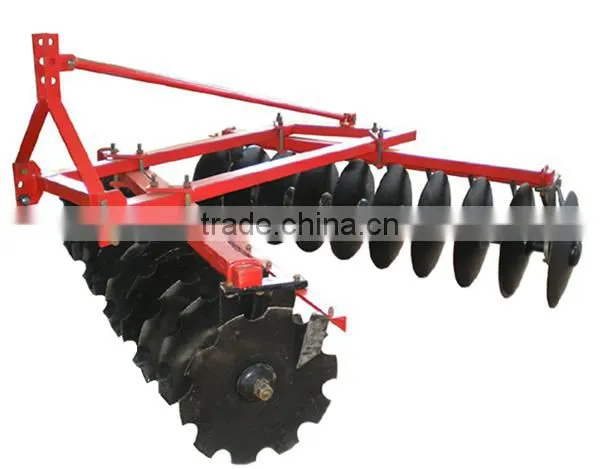

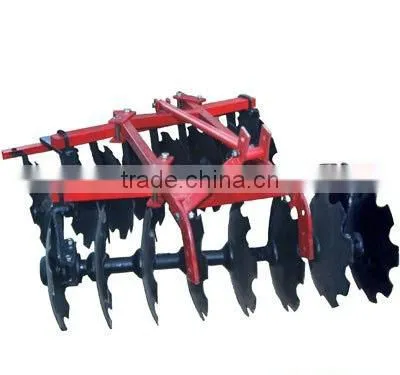

1BJX Series Hanging Middle Harrow

1BJX Series Hanging Middle Harrow photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Farm
Certification:
CE
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Use Farm
Certification CE
Place of Origin Jiangsu, China
Brand Name Forlay
Model Number 1BJX-1.7
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

disk harrow:
1: stronger structure
2: steel 65 Mn
3: 2 Years warranty
4: matched power:from8HP-120HP

1BJX  series hanging middle harrow :This series are used for crushing clods after tillage, preparing soil before seeding , loosening the soil , combining the soil and fertilizer ,  and cleaning away stubble of plants in light soil field . With reasonable structure, strong ability to rake , durable, easy to use and maintenance, etc





item

unit

1BJX-1.7

1BJX-2.0

1BJX-2.2

1BJX-2.4

1BJX-2.5

1BJX-2.8

 working width

mm

1700

2000

2200

2400

2500

2800

 working depth

mm

140

 No. of disc

pc

16

18

20

22

24

26

Dia. Of disc

mm

560

weight

kg

400

434

463

620

760

800

 linkage



Three point mounted

 matched power

hp

45

50-55

55-60

65-70

75

80































 1BJX series hanging middle harrow1BJX series hanging middle harrow1BJX series hanging middle harrow1BJX series hanging middle harrow1BJX series hanging middle harrow
