Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 18400
Certificate CE
Brand Name JINMA
Model Number JM-254
Place of Origin Jiangsu, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

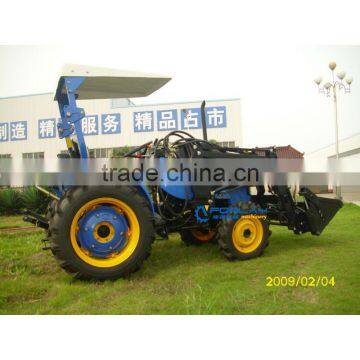

JM254 Small Agricultural Tractor
25hp,4WD farm tractor
EEC/COC, EPA, OECD approved
Turf tyre available




Product Description

our JINMA series tractors have better performance and cheap price. JM254 tractor is the most popular model amoung our sales.



Model

JM-254

Drive Type

4WD

Overall Dimensions
L*W*H(mm):

3080x1440x1930

Wheel Track(mm)

Front

1100

Rear

1040-1200

Wheel Base(mm)

1645

Ground Clearance (mm)

295

Rated Traction Force(N)

5980

Construction Mass(kg)

1140

Min.Turning Radius(m)

2.80

Theoretical Speed(Without creeper)( km/h)

Forward

1.73,3.42,5.71,8.01,15.80,26.40

Reverse

1.37,6.35

Theoretical Speed (With creeper)( km/h)

Forward

0.32,0.64,1.06,1.49,2.95,4.92

Reverse

0.26,1.18

Engine
Specifications

Model

   Y385/KM385

Type

3-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

18.4/25

Rated Speed (rpm)

2350

Bore*Stroke(mm)

85*90

Total Displacement(L)

1.532

Drive
System

Clutch

Dual-Stage

Gear Box

(3+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

External gearing, Spur Gear

Traveling
Mechanism

Tyre

Front

6.00-16

Rear

9.5-24

Steering Gear

Full Hydraulic Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

4200

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6-35Rectangular Spline

OPTIONSROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB
