Home > Products > Farm Tractor > 25HP JINMA Tractor Mahindra Mini Tractor Price With 2014 EPA4

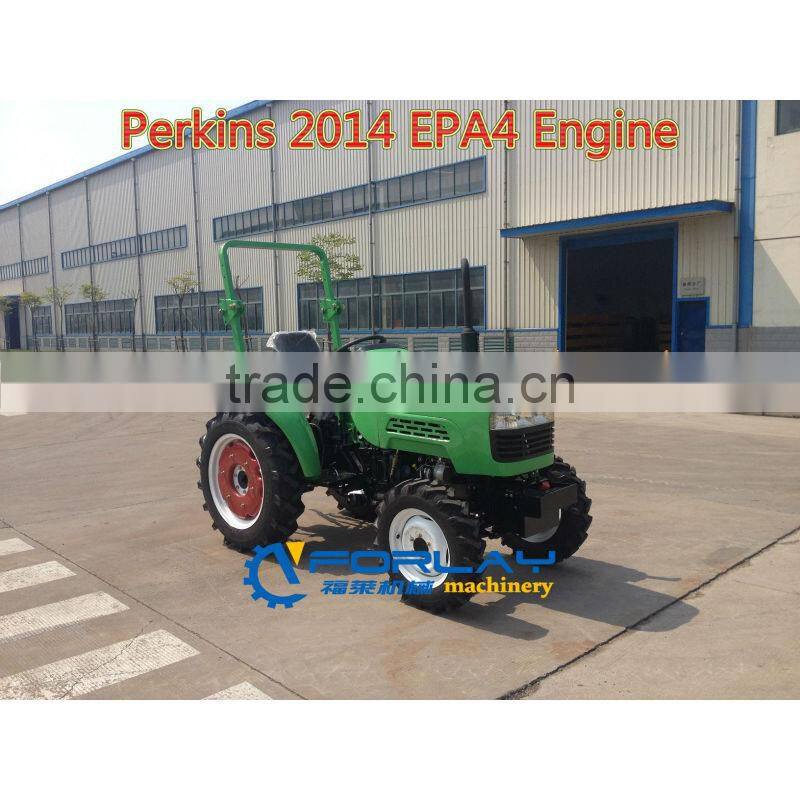

25HP JINMA Tractor Mahindra Mini Tractor Price With 2014 EPA4

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	18400
Certificate	CE	Brand Name	JINMA
Model Number	JM-254	Place of Origin	Jiangsu, China
After-sales Service Provided	Engineers available to service machinery overseas

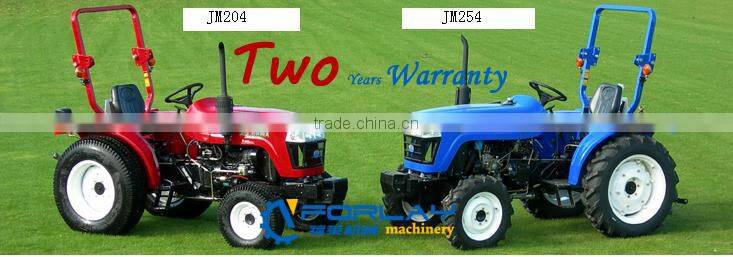

JM254 Small Agricultural Tractor
25hp,4WD farm tractor
EEC/COC, EPA, OECD approved
Turf tyre available

Product Description

our JINMA series tractors have better performance and cheap price. JM254 tractor is the most popular model amoung our sales.

Model				JM-254
Drive Type				4WD
Overall Dimensions LWH(mm):				3080x1440x1930
Wheel Track(mm)	Front			1100
	Rear			1040-1200
Wheel Base(mm)				1645
Ground Clearance (mm)				295
Rated Traction Force(N)				5980
Construction Mass(kg)				1140
Min.Turning Radius(m)				2.80
Theoretical Speed(Without creeper)( km/h)		Forward		1.73,3.42,5.71,8.01,15.80,26.40
		Reverse		1.37,6.35
Theoretical Speed (With creeper)( km/h)		Forward		0.32,0.64,1.06,1.49,2.95,4.92
		Reverse		0.26,1.18

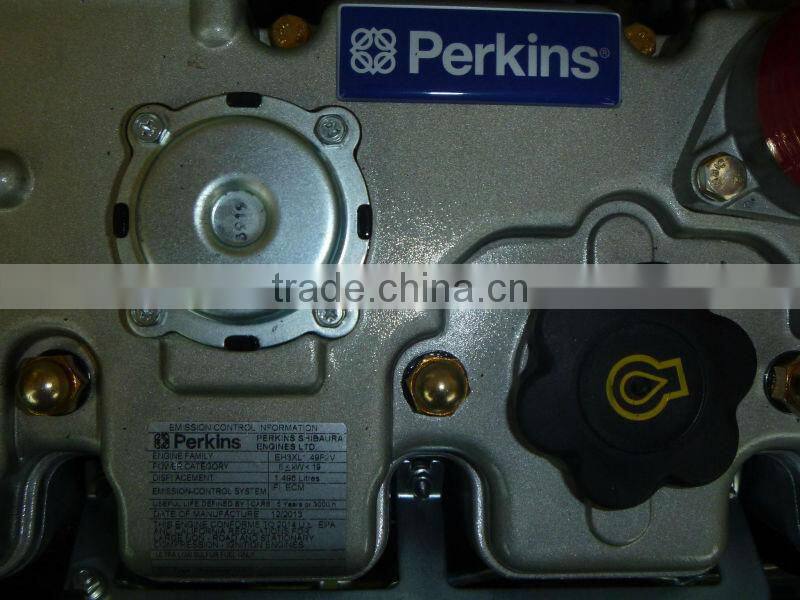

Engine Specifications	Model				Y385/KM385
	Type				3-Cylinder Vertical,water cooled,4 stroke cycle
	Rated Power(kw/hp)				18.4/25
	Rated Speed (rpm)				2350
	Bore*Stroke(mm)				85*90
	Total Displacement(L)				1.532
Drive System	Clutch				Dual-Stage
	Gear Box				(3+1)*2
	Main Drive				One Pair of Spiral Bevel Gearing
	Differential				Bevel Gear
	Differential Lock				Jaw Lock
	Final Transmission				External gearing, Spur Gear
Traveling Mechanism	Tyre		Front		6.00-16
			Rear		9.5-24
	Steering Gear				Full Hydraulic Steering
	Brake				Disc type
Working Device	Hydraulic System		Lifting Capacity at 610mm Behind Lift Point (N)		4200
			3-Point Suspension		Category:I
	P.T.O Shaft		Speed (rpm)		540/1000
			Spline Size		6-35Rectangular Spline
OPTIONS					ROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB
