Home > Products > GASOLINE GENERATOR SET > 2KVA~5KVA Gasoline Generator

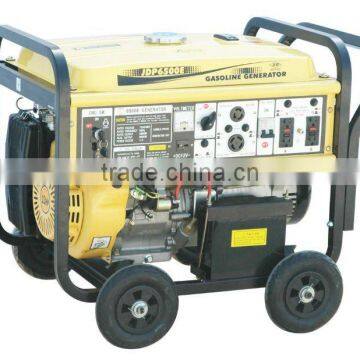

2KVA~5KVA Gasoline Generator
Negotiable
/ Set
20 Sets(Min.Order)
- 1000 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP | |
| Model Number | JDP2500~6500E | Output Type | AC Single Phase | |
| Speed | 3000/3600RPM | Frequency | 50/60 | |
| Rated Power | 2KVA~5KVA | Rated Voltage | 110/120/220/230/240V | |
| Rated Current | 18-45A |
Product Description
Specifications
2KVA~5KVAGasoline Generator1.electric start
2.round pipe frame
3.Air cooled
4.open type
| Model | JDP2500(E) | JDP3500(E) | JDP4500(E) | JDP5500(E) | JDP6500(E) | ||
| Generator | Type | Revolving Maginetic Field,Self-excitating,2-pole,Single-phase | |||||
| Voltage Regulation | Capacitance/AVR | ||||||
| Frequency(Hz) | 50/60 | ||||||
| Max.AC Output(KVA) | 2.2/2.5 | 2.8/3.0 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 | ||
| Rated AC Voltage(V) | 110/120/220/230/240 | ||||||
| Rated AC Output(KVA) | 2/2.2 | 2.5/2.8 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 | ||
| Power Factor cosφ | |||||||
| Engine | Model | JDP168F(E) | JDP168FA(E) | JDP177F(E) | JDP182F(E) | JDP188F(E) | |
| Type | Single-cylinder 4-stroke,25°inclined with Air-cooled | ||||||
| Displacement(cc) | 163 | 196 | 270 | 338 | 389 | ||
| Max.Output(HP) | 5.5 | 6.5 | 9 | 11 | 13 | ||
| Fuel | Unleaded Gasoline | ||||||
| Fuel Tank Capacity(L/gal) | 15/4.0 | 25/6.6 | |||||
| Oil | SF or Higher Grade | ||||||
| Oil Capacity(L/oz) | 0.6/20 | 1.1/37 | |||||
| Ignition System | Non-contact transistorized ignition(T.C.I) | ||||||
| Starting System | Recoil or electric start | ||||||
| Standard Features | Fuel Gauge | 0 | |||||
| Voltmeter | 0 | ||||||
| AC Circuit Breaker | 0 | ||||||
| Low Oil Level Protection | 0 | ||||||
| Engine Switch | 0 | ||||||
| DC Output 12V/8.3A | 0 | ||||||
| DC Circuit Breaker | 0 | ||||||
| AC Socket | 0 | ||||||
| Optional Features | Pilot Light | + | |||||
| Remote Control | + | ||||||
| GFCI Socket | + | ||||||
| Handle&Wheels | + | ||||||
| Hours meter | + | ||||||
| Package | Dimension(L×W×H)(mm) | 610×460×510 24.1×17.7×18.5 | 695×525×560 28.0×20.1×22.9 | ||||
| G.W(kg/lbs) | 47/103 | 51/112 | 85/187 | 86/189 | 88/194 | ||
| N.W(kg/lbs) | 45/99 | 49/108 | 82/180 | 83/182 | 85/187 | ||
