Power Lock Z2 Type ISO Standard,Chinese Power Locking Device in Power Locks

Specifications

Power Lock Z2 type ISO standard

Z2-type expansion sleeve of the double cone by an inner opening, an opening of the double cone outer ring and two double cone clamping ring. Tighten with hex bolts, tighten the elastic ring when there is no relative axial movement of the hub, and Z1-type comparison, the same clamping force can produce a greater radial pressure to deliver greater payload. For ease of removal, in a hold-down ring with the screw holes on the demolition, along the circumference of a total of 2 to 4. Widely used in packaging, printing, textile, machine tools and other machinery.

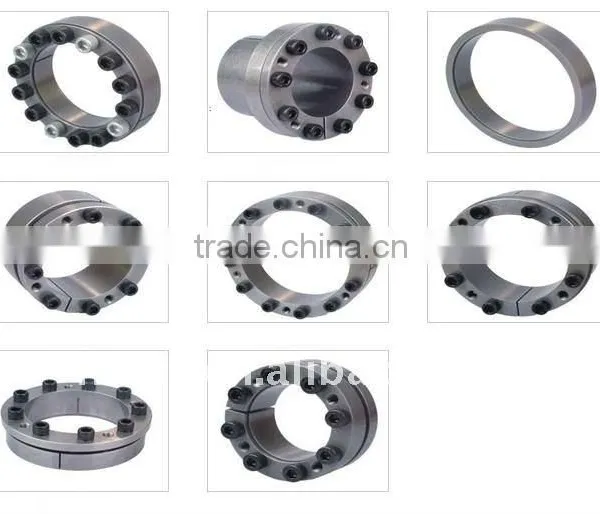

lock assembly,power lock,lock device Z3,Z4,Z5,Z6,Z7,Z8

Z1 Locking Devices Z11 Locking Devices

Z2 Locking Devices Z13 Locking Devices

Z3 Locking Devices Z7B Locking Devices

Z4 Locking Devices Z12A Locking Devices
Z5 Locking Devices Z19A Locking Devices
Z6 Locking Devices Z19B Locking Devices

... ...

Feature:
1. Easy to install and dismantle.
2. High degree of flexibility
3. Long lifetime and high efficient transmitting
4. Low notching effect
5. Protection of the expensive equipment under over load running.
6. In compliance with quality requirement of developed coutries.
7. Super high quality with lowest price.
