Specifications

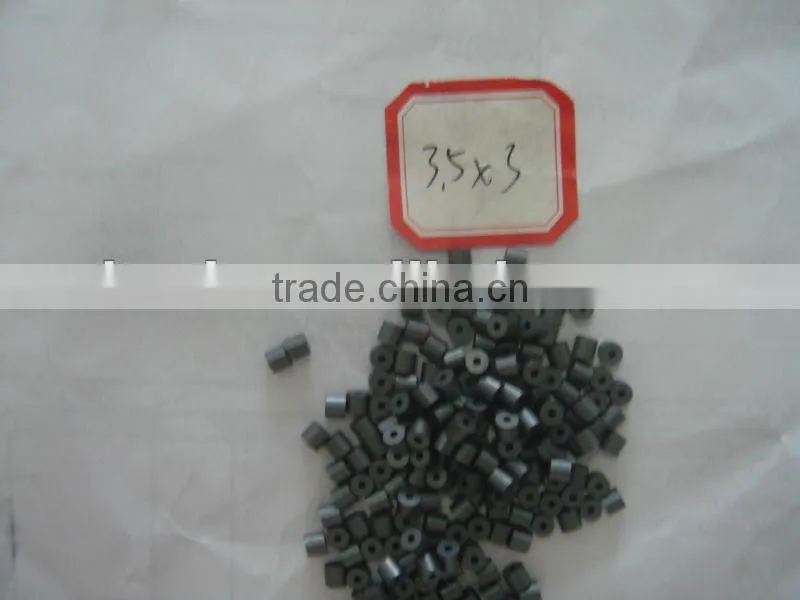

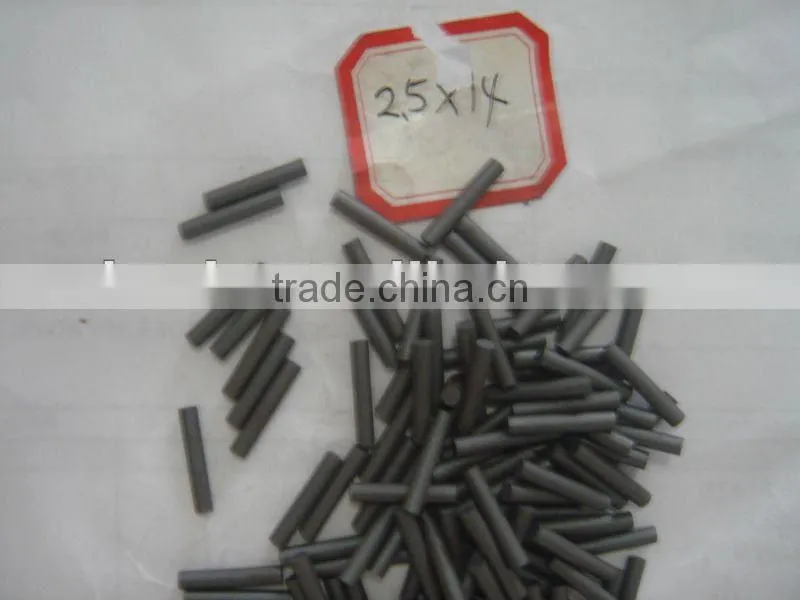

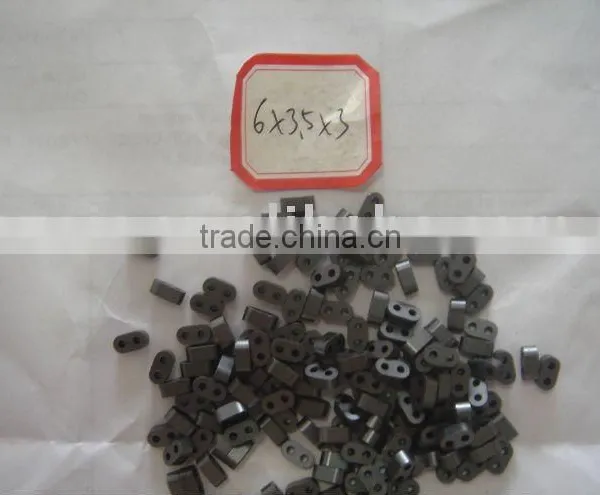

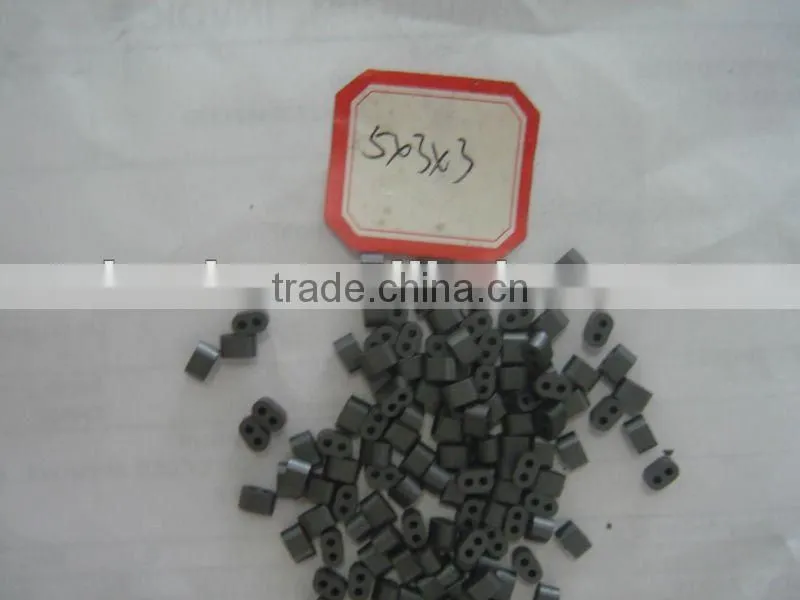

RH Ferrite Cores,Ferrite core,soft ferrite core,mn-zn ferrite core,ni-zn ferrite core,soft iron core1.Merchandise name:
Ferrite core,soft ferrite core,mn-zn ferrite core,ni-zn ferrite core,big size ferrite core,transformer core,magnetic core,mn-zn ferrite magnet,ferrite rod,rod core,ferrite magnet,nizn core,sdenoid core,ei core,ferrite magnet cores,magnet sheet,pot core,mn zn cores,core,special core,faucet parts,hose fittings,iron core,iron transformer core,c-core,silicon steel, filter drier core,radiator core,aluminum radiator core,steel core,dvd movies,valve,soft iron core
2.Specifications:
Core material:Soft magnetism Ferrite cores
Core specification is complete
Be supplied with their match bobbins
3. Features:
1.Core material: NI-ZN Soft magnetism Ferrite cores
2.Core cost:very cheap
3.Core range: EI Cores,EE Cores,EER/ETD Cores,UU Cores,UYF Cores,EP Cores, RM Cores,PM Cores,PQ Cores,ET/FT Cores, T Cores,RH Cores,RC,SH Core,DR Cores, R,RID Cores
5.Can be supplied with matching bobbins
6.Core Usefulness : be used for Transformer, inductor and other electronic products
For more detail info, please feel free to inquire us at any your convenience
4.Main Markets:
North America
South America
Eastern Europe
Southeast Asia
Mid East
Western Europe
5.Advantage:
Hongqiao magnets has years experiences in magnets producing and we can supply the magnets according to your own design and specification.
We deliver in time and has the perfect. after-service.
We can give the most competitive china mainland price for you.
We will always welcome your inquiry!
6.Applications :
Internal floppy disk and hard disk ribbon cables
Internal ribbon cables between circuit boards and data connectors.
Internal ribbon cables with series digital signal busses.
| Type | A | B | C |
| RH2.5X1X3 | 2.5±0.1 | 1.0±0.15 | 3.0±0.2 |
| RH3X1X12 | 3.0±0.15 | 1.0±0.15 | 12.0±0.4 |
| RH3.5X0.8X8 | 3.5±0.2 | 0.8±0.15 | 8.0±0.3 |
| RH3.5X1.2X12 | 3.5±0.2 | 1.2±0.15 | 12.0±0.4 |
| RH3.5X1.3X8 | 3.5±0.2 | 1.3±0.15 | 8.0±0.3 |
| RH4.0X1.5X8 | 4.0±0.1 | 1.5±0.15 | 8.0±0.4 |
| RH4X2X6 | 4.0±0.2 | 2.0±0.1 | 6.0±0.2 |
| RH4X2X10 | 4.0±0.2 | 2.0±0.1 | 10.0±0.3 |
| RH5X2.2X6 | 5.0±0.2 | 2.2±0.1 | 6.0±0.2 |
| RH5X2.2X12 | 5.0±0.2 | 2.2±0.1 | 12.0±0.3 |
| RH6X1X6 | 6.0±0.2 | 1.0±0.15 | 6.0±0.3 |
| RH6X2.5X30 | 6.0±0.2 | 2.5±0.2 | 30.0±1.0 |
| RH6X3.0X10 | 6.0±0.2 | 3.0±0.2 | 10.0±0.3 |
| RH6X3X15 | 6.0±0.2 | 3.0±0.2 | 15.0±0.3 |
| RH7.5X2.39X7.5 | 7.5±0.2 | 2.39±0.2 | 7.5±0.3 |
| RH8X4X4 | 8.0±0.2 | 4.0±0.2 | 4.0±0.2 |
| RH8X4X20 | 8.0±0.2 | 4.0±0.2 | 20.0±0.3 |
| RH9.7X4.7X10.4 | 9.7±0.2 | 4.7±0.2 | 10.4±0.3 |
| RH10X5.1X24.5 | 10.0±0.2 | 5.1±0.2 | 24.5±0.5 |
| RH10X6X20 | 10.0±0.2 | 6.02±0.2 | 20.0±0.3 |
| RH12.5X8X6 | 12.5±0.3 | 8.0±0.2 | 6.0±0.2 |
| RH12.5X8X20 | 12.5±0.3 | 8.0±0.2 | 20.0±0.3 |
| RH14.2X8X28 | 14.2±0.6 | 8.0±0.8 | 28.0±0.8 |
| RH16X8X30 | 16.0±0.3 | 8.0±0.2 | 30.0±0.5 |
| RH17.5X9.5X28.5 | 17.5±0.8 | 9.5±0.6 | 28.5±0.8 |
| RH25.7X13X28.5 | 25.7±0.8 | 13.0±0.8 | 28.5±0.8 |
