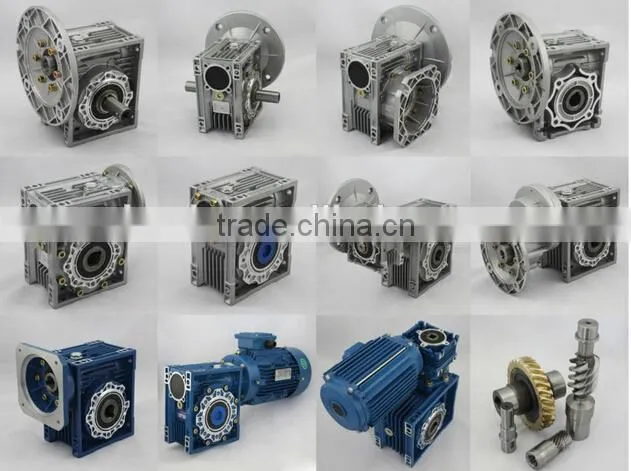

NMRV +NRV worm gear reducer worm gearbox
Features:
1) Aluminum alloy die-casted gearbox
2) Compact structure save mounting space
3) Highly accurate
4) Runs forward and backward
5) High overload capacity
6) Stable transmission with reduced vibration and noise
Characteristics:
1. High quality aluminum alloy quadrate case .
2. High efficiency.
3. Small size, compact constructure and light weight.
4. Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio.
Technical Data
1. Input power: 0.06kW-15kW
2. Output torque: 7.8-1195N.m
3. Speed ratio: (5-100) 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
4. Adapt for IEC, NEMA, SERVO
Material:
1. From RV25 up to RV105: Aluminium alloy housing.
2. From RV110 to RV150: Cast iron housing.
3. Seal: NAK Seal
4. Bearing :homemade Bearing
Color:
1. RAL5010
2.Blue
3. Silver
Quality control:
1.Quality guarantee: 1 year
2.Certificate of quality: ISO9001:2008
3.Every product must be tested before packing
General Technical datas:
| Item name: |
NMRV+NRV double gear reduction boxes
|
| size number: |
25,30,40,50,63,75,90,110,130,150
|
| ratio: |
1/100-1/5000
|
| color: |
blue,silver,RAL5010 color
|
| material: |
housing -casting iron- HT200-250#/aluminum worm gear-KK alloy worm-20CrMnTi with carburizing and quenching,surface hardness is 58-62HRC shaft-chromium steel-45# |
| packing: | Inner pack: use plastic bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
| bearing: |
NSK & Homemade bearing
|
| seal: |
NAK seal from TAIWAN
|
| input power: | 0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw |
| Lubricant: |
Synthetic & Mineral |
| IEC flange: |
56B5,63B5,71B5,80B5,90B5,100B5,112B5,132B5 |
| output form: | solid shaft,hollow shafts |
| weight: | 0.7-87.8KGS |
| application: |
In industrial machine:food stuff,ceramics,chemical, packing,printing,dyeing,woodworking,glass and plastics
|
| warranty: | 1 year |
