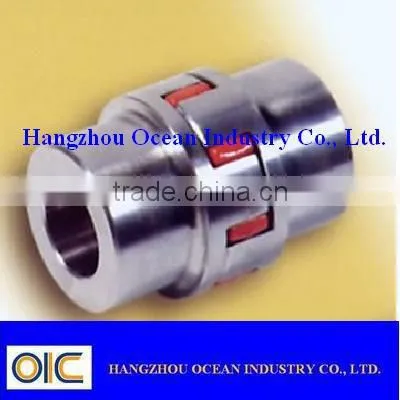

GR Flexible Couplings

GR Flexible Couplings thumbnail-1
GR Flexible Couplings photo-1
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Structure:
Jaw / Spider
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Hangzhou Ocean Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Jaw / Spider
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Steel
Brand Name mw
Place of Origin Zhejiang, China
Model Number GR COUPLING

GR flexible couplings

1.ISO 9001:2008 qaulified
2.Made to drawing and order
3.Fast delivery and response



GR Couplings
(metric)
TYPE MATERIAL OD ID HARDNESS colour THICKNESS quantity of petal
GR-10 CAST IRON/PU  20   SHORE A 98 Red/Blue/Yellow 8 4
GR-14 CAST IRON/PU  30   SHORE A 98 Red/Blue/Yellow 10 4
GR-19 CAST IRON/PU  40 18 90(A)-64(D) Red/Blue/Yellow 12 6
GR-24 CAST IRON/PU  54 26 90(A)-64(D) Red/Blue/Yellow 14 8
GR-28 CAST IRON/PU  65 30 90(A)-64(D) Red/Blue/Yellow 15 8
GR-38 CAST IRON/PU  80 28 90(A)-64(D) Red/Blue/Yellow 18 8
GR-42 CAST IRON/PU  95 46 90(A)-64(D) Red/Blue/Yellow 20 8
GR-48 CAST IRON/PU  104 51 90(A)-64(D) Red/Blue/Yellow 20.5 8
GR-55 CAST IRON/PU  120 60 90(A)-64(D) Red/Blue/Yellow 22 8
GR-65 CAST IRON/PU  135 68 90(A)-64(D) Red/Blue/Yellow 26 8
GR-75 CAST IRON/PU  161 81 90(A)-64(D) Red/Blue/Yellow 30 10
GR-90 CAST IRON/PU    200 100 90(A)-64(D) Red/Blue/Yellow 34 10
GR-100 CAST IRON/PU  224 111 90(A)-64(D) Red/Blue/Yellow 38 10
GR-110 CAST IRON/PU  255 121 90(A)-64(D) Red/Blue/Yellow 38 10
GR-125 CAST IRON/PU  292 148 90(A)-64(D) Red/Blue/Yellow 46 10





Features:

1.Coupling assembled by pressing a polyurethane sleeve into hubs on both sides

2.Could absorb the vibration parallel ,angular misalignments and shaft end-play

3. Resistance to oil and electrical insulation

4.Identical clockwise and anticlockwise rotational characteristics

5.Three different hardness sleeves are available

6.flexible coupling
7.ISO 9001:2008 qaulified
8.Made to drawing and order
9.Fast delivery and response

10.Clamp type
