Latest Technology Large Stock Seasame Oil Making Machine

Latest Technology Large Stock Seasame Oil Making Machine

1,Latest Technology Large Stock Seasame Oil Making Machine For Pretreating

2,Raw Material of Latest Technology Large Stock Seasame Oil Making Machine

1. Peanut  2. Soybean  3. Sunflower seed  4. Cottonseed  5. Walnut  6. Rice bran  7. Caster beans

8. Chilli seed  9.Rape seed 10. Corn germ  11. Sesame  12. Camellia seed  13. Almonds  14. Pepper

seed  15. Benne 16. other oilsees crops

3,The Main Part of Latest Technology Large Stock Seasame Oil Making Machine

Raw materials feeder : the raw materials can go to the oil press machine through the feeder .

Vacuum filter : the crude oil go to the vacuum filter . In the filter , the pgysical impurities will be removed

 , which make the crude oil very clean and can be cooking directly .

Cake outlet : after the oil pressing section , the raw materials will be divided into two parts , one part

is vegetable oil and the other part is raw materials cake . The cake can be used for animal feed

Control panel : in the control panel , there are several buttons . The heating system can make the

 temperature of pressing environment about 120 degree , which can make perfect pressing section

working environment . When the temperature is higher than 120 degree , the heating system will be cut

off automatically . The design of heating system can guarantee the service life of the oil press machine .

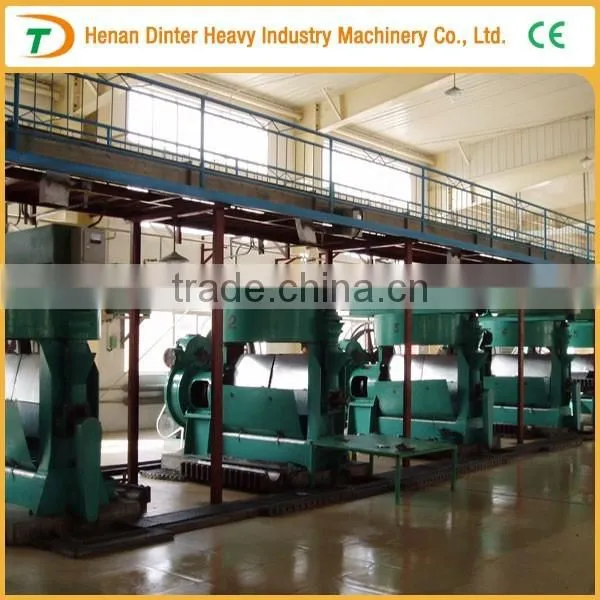

4,Pictures of Latest Technology Large Stock Seasame Oil Making Machine

5,Technical Parameter of Latest Technology Large Stock Seasame Oil Making

Machine

6,Working Principle of Latest Technology Large Stock Seasame Oil Making

Machine

Under the combined effects of several forces, such as the pressure generated as the space in the squeeze
chest becoming smaller, the propulsion of the revolving spiral axes, the resistance of the multilateral arc

curves on the squeeze loops, the extrusion & friction between the oil plants, oil squeezed from the oil

plants comes out from the squeeze bars and the grooves of the squeeze loops. The residue is conveyed

to the end of the press chest and discharges in thin strips of oil cake from the space between the cake

adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.

7,Operation Process of Latest Technology Large Stock Seasame Oil Making

Machine

1)Prepare raw materials

2)Adjust the machine, i.e. checking electricity, beginning heating (if it is cold pressing,heating is not needed.)

3)Open the machine, put seeds into the hopper.

4)Seeds flowed from hopper into screw bolt, pressing begins.

5)While pressing of oilseeds, crude oil flowed thought the board then into the vacuum filters; and cakes

discharged from outlet;

6)Once finished oil pressing, press stop button, then operation finished.

8,Feature of Latest Technology Large Stock Seasame Oil Making Machine

1)Wide application: ideal machine for pressing various oil seeds, such as peanut, soybean, sesame,

flax seed, etc;

2)High oil yield : the oil output is 35% - 50% higher than common oil press.

3)Low residual: the oil residual in cake is only about 5%.

4)Little land occupancy: only 10-20 square meter is enough.

9,Company Information

Henan Dinter Heavy Industry Machinery Co., Ltd. is a professional modern enterprise which

specialized in manufacturing cooking oil machines for various oilsees crops for many years with

rich experience, including both small scale cooking oil production line and large scale cooking

oil production line. We can realize total turn-key project from design to installation and commissioning. Our products have obtained certificates

of ISO9001:2000, ISO14001 and CE .

Our business including

10-500T/H oil material first cleaning,drying and storage section turn-key project.

100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project

30-1000T/D oil continuous grade two or one physical (chemical) refining production line.

20-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project

10-200T/D Fatty acid esterification production cooking oil production line.

10,Certification

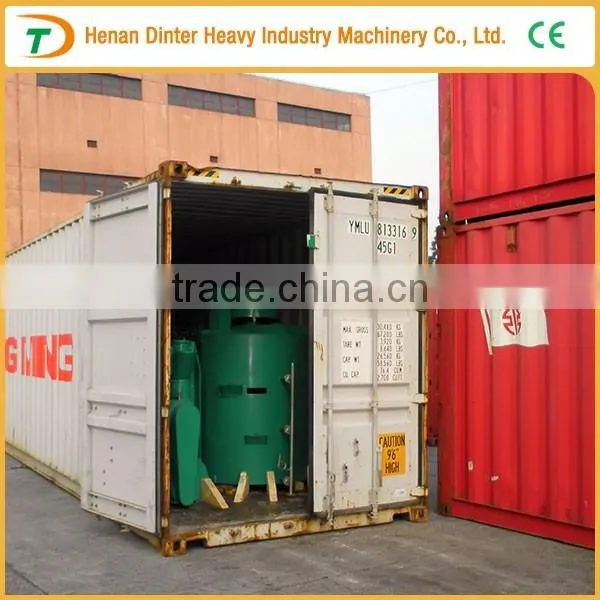

11,Shiping of Latest Technology Large Stock Seasame Oil Making Machine

1)Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Other Equipment will be packed by Color-Stripes Plastic Cloth.

2)The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack a
ll of them. The motor, gear box or other easilydamaged parts, we will put them into box. We have
a professional shipping department, they will try them best to save your container quantity.

12,Part of Our Customers

We have customers from all over the world like Indonesia, Malaysia.Uzbekistan, Kyrgyzstan, Kazakhstan,

and Canada,Chile, Argentina,Ethiopia, India, Malaysia, Zambia, Nigeria, Russia , Turkey, More than

30 countries .

13,Our service:

1)Provide all kinds of oil machine: mini oil plant, oil extraction mill, oil refinery machine, small oil factionry

mills, large oil processing line, etc.

2)Single oil machine and turnkey oil processing project are both available.

3)Oil plants include: coconut oil machine, palm oil mill, sesame oil plant, soya bean oil machine,rice bran

oil extraction machine , peanut groundnut oil plant, rapeseed oil machine, corn germ oil machine and other

vegetable oil plant.

4)Custom design for household oil machine and oil factory turnkey project with installing and adjusting.

More Details,do not hesiatate to contact Allen,24 hours are available for you.
