Best supplier oil from sunflower seed shell

Best supplier oil from sunflower seed shell

Brief introduction of oil from sunflower seed shell

1, pressing chamber pressure size range, good adjustable (0.1-150MPa);

2, can adapt to the process of various oil and various oil preparation, including cold pressing, hot pressing, high water slurry residue for oil and high oil content oilseed grinding pressure oil;

3, long production period, loading, unloading cake trouble, stand-alone production efficiency is low, equipment and large occupation area;

4, static squeezing out oil efficiency is low, the operation requirements "edge planing reconditioning, workshop insulation (35℃)," poor labor conditions. Therefore, this kind of oil equipment in general can only be used in some scattered oil (like rice bran) and the need to maintain the special flavour or nutritional (like cocoa beans, sesame) pulping hydraulic oil.

Operation Principle of oil from sunflower seed shell

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

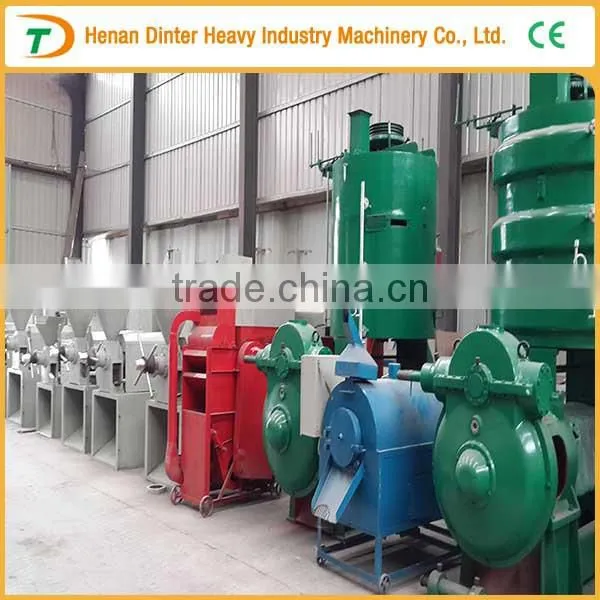

 Detailed pictures of oil from sunflower seed shell

  Parameters in oil press plant

Flow chart of oil press plant

Technology process of oil press plant

1. Cleaning

The de-ironing sunflower seed feed into single-deck screen clean sift for cleaning, large material expelled from discharge hole, and the bigger ones enter into grinder for smashing.

2. Cracking and flaking

Cleaned sunflower seeds enter into flaket from crusher which has two teeth roller with different speed .Then rolled into embryo under roller.

3. Cooking steaming process

Under cooking process, flakes come up complicated physical chemistry change, and the moisture and temperature of the materials can reach press term.

4. Pressing process

After reaching press term, The embryo enter into oil press for prepress. The dreg inclusion crude oil is pressed into settle oil tank through oil scraper blade.

    Henan Dinter Heavy Industry Machinery Company

Henan Dinter Heavy Industry Machinery Co., Ltd. is a professional modern enterprise which specialized in manufacturing oil press,oil extraction and oil refining machines, We have been engaged in manufacturing pyrolysis machine for 20 years including 10 years overseas market experience,over 100 kinds of grain machineries,the quality and function in the leading domestic level;selling and offering after-sale

service,our products have a good market in china,and exported to Asia,Europe and Africa.

                                         Main business

10-500T/H oil material first cleaning,drying and storage section turn-key project.

100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project

30-1000T/D oil continuous grade two or one physical (chemical) refining production line.

20-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project

10-200T/D Fatty acid esterification production cooking oil production line.

                                    Customers visiting

Company mission

Regard quality as the company life ,regard user as the god,mutual benefit and win-win situation with integrity,tenet

Quality oriented, Scientific and technological innovation,Service first Xinfeng piloing.
