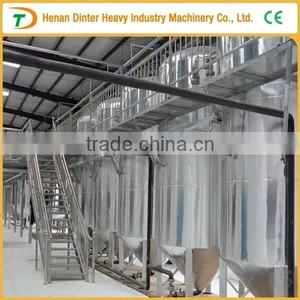

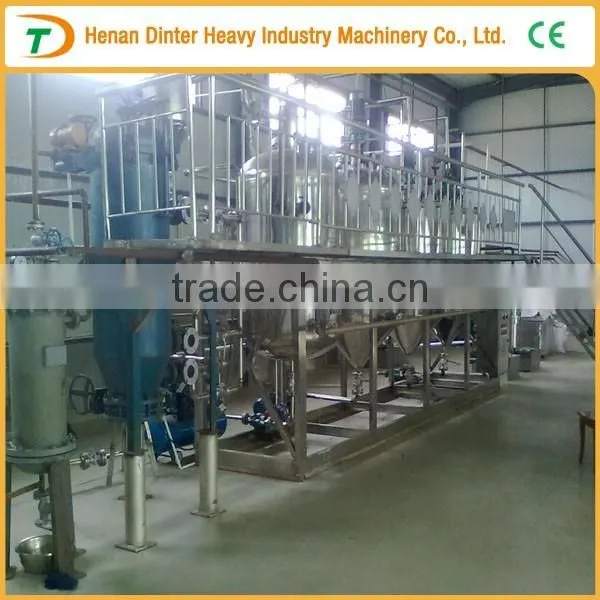

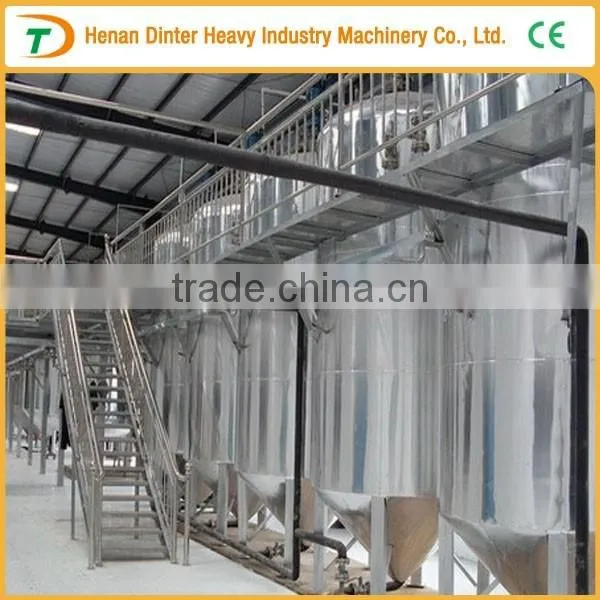

High efficiency small scale cottonseed oil refinery plant

• 10-500T/H oil material first cleaning,drying and storage section turn-key project.
• 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
• Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
• 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
• 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
• 10-200T/D Fatty acid esterification production cooking oil production line.

Henan Dinter Heavy Industry Machinery Co., Ltd. is a professional modern enterprise which specialized in manufacturing edible oil press machines suitable various oilseed crops, We have been engaged in manufacturing vegetable oil press machine for more than 30 years including 5 years overseas market experience. We have three manufacturing plants, tens of independent & professional departments to serve global customers. Our company constantly implements advanced management, sales and technology, and learn the domestic and foreign management mode. We combine advanced foreign technology with independent research, we move forward continuously to higher level product quality and after-sales service.

Website: /
Website on : http://hndt.en./

High efficiency small scale cottonseed oil refinery plant operating principle:

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

High efficiency small scale cottonseed oil refinery plant :

Degumming:  We are using a special wet degumming,Thorough removal of colloid.
Deacidfication: Removing the FFA by add caustic soda.
Decoloring :  Premixing the a certain amount of clay with 20% degumming oil in the premix tank , then using the oil pump, pump the premixing oil and the rest 80% oil in the vacuum decolorization tower to get rid of the pigment,then using platetype filter to separate the oil and the waste clay.
Deacidification /Deodorization:  Avoid large amounts of neutral oil accident losses, using high temperature and high vacuum environment, by using the method of steam stripping deodorization, removing acid.

Our advantages about  High efficiency small scale cottonseed oil refinery plant

More than 30 years including 5 years overseas market  experience of designing and installing

complete small scale oil refinery plant , we are now a leading company in  mini oil press plant field.

We supply various small scale oil refinery plant and connected equipments

(1) High oil yield , obvious economic benefit .

(2) Lower residual oil rate in the dry meal .

(3) Improving the quality of the meal .

(4) Low processing cost , high productivity.

Our sercives of  High efficiency small scale cottonseed oil refinery plant

1.Ensure providing complete equipment and its accessories on time.

2.Ensure the installation and adjustment of small scale oil refinery plant are once accepted.

3.Ensure providing high-quality equipments with competitive price.

4.Providing new products and advanced technology preferentially;

5.Providing the operating technicians professional training to ensure operate independently.

6.Appointing you a inspector during the installation process.

7.Arranging an professional installation team which will be managed by our PM.

Q1 : Which kind of materials can be processed?

All kinds of oil seeds. For example, sunflower seeds, rice bran, corn germ, palm fruit, palm kernel,coconut,peanut, soybean, sesame, cottonseeds, rapeseed, etc.

Q2 : What's the capacity?

Generally, 10-5000 tons per day. We can also manufacture as per customers' requirements.

Q3 : How long is the warranty?

The main parts of the machine come with one year warranty and after the expiration our engineer is available overseas to do the maintenance work.

Q4 : Can the machine be installed locally?

We can do the turn-key projects or other services according to customers'requirements,according to this condition,our services can be manufacturing,purchasing,transporting,installation,training labors etc.

Q5 : How to operate the machine?

Our engineers will be available to guide and train your labors how to operate and run the machine.
