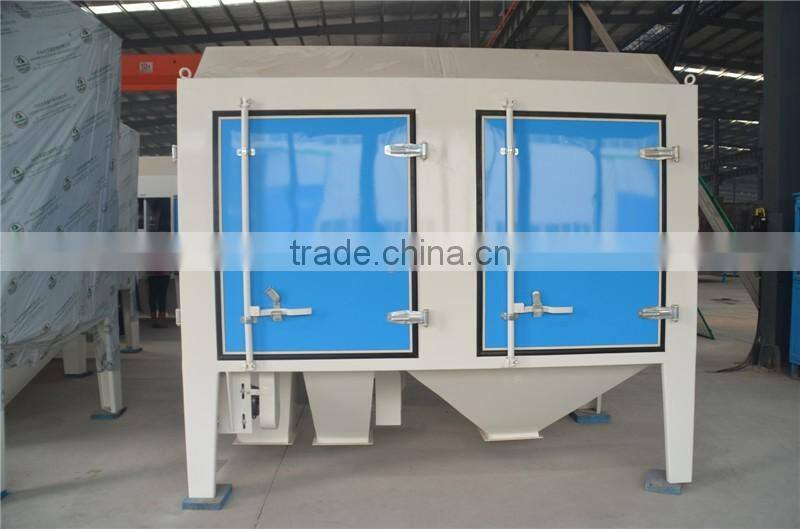

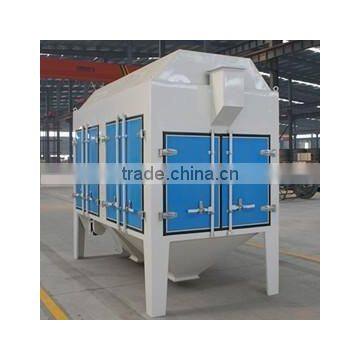

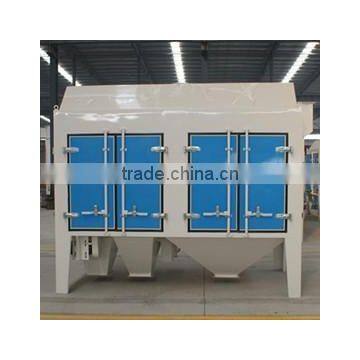

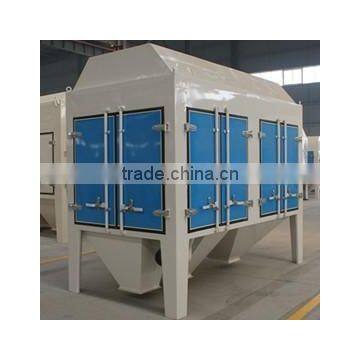

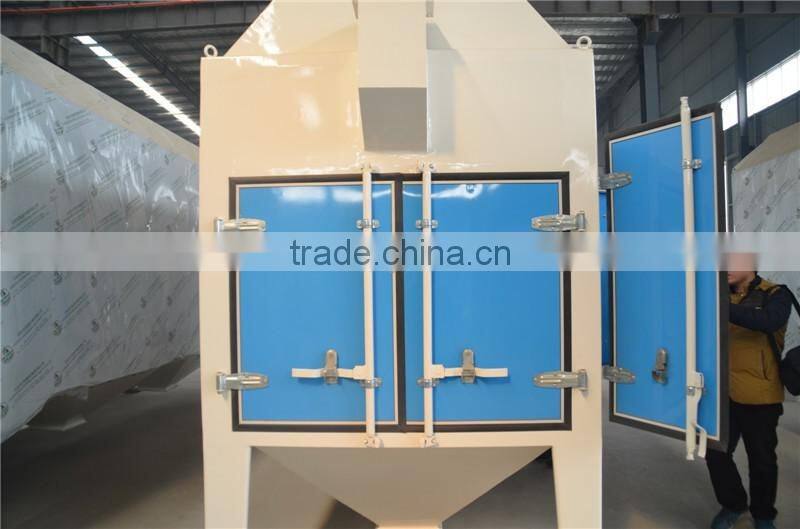

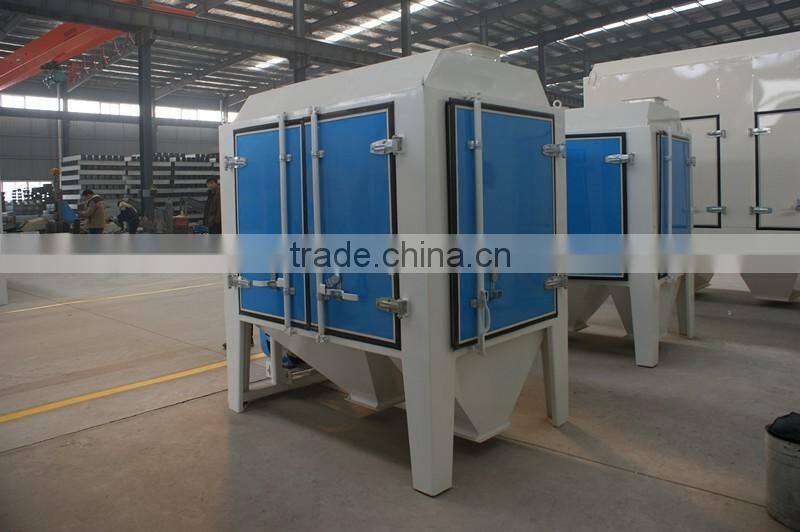

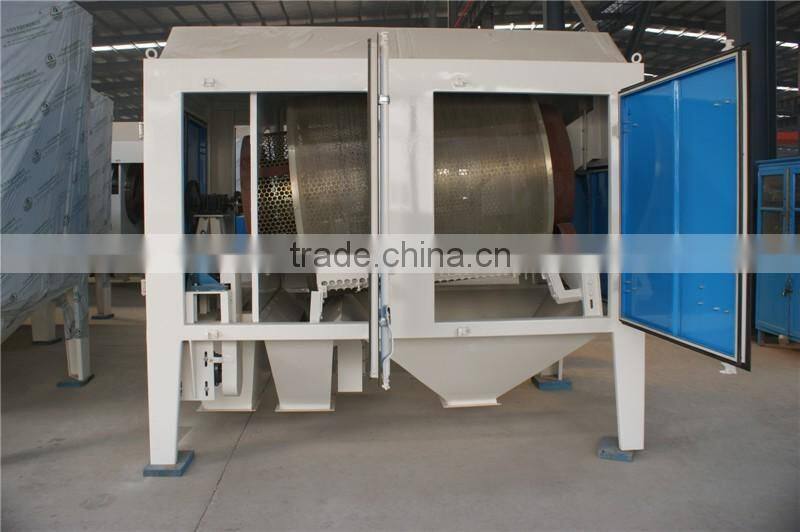

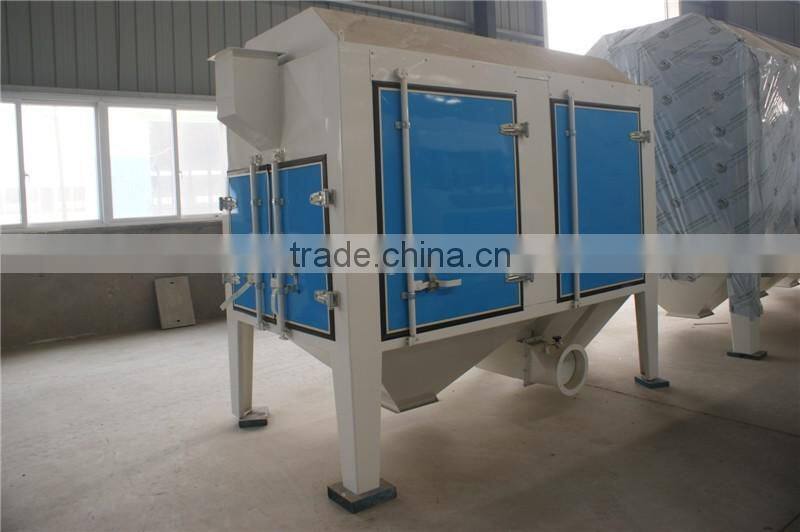

Grain Bean Drum Pre-cleaner
INTRODUCTION OF Grain Bean Drum Pre-Cleaner :
5XZP-D Series Grain Bean Drum Pre-Cleaner has double durm screen, it can effectively separate the light impurities, big impurities and small impurities from the grains. With the inclination angle screen drum and the independent support plus the aspiration device, the pre-cleaner is featured with steady operation and good cleaning effect.We can provide pre-cleaner for different grains with different screen size at different capacity from 30t/h to 180t/h.
*Heavy duty roller support system for high throughput operation
*Adjustable drum angle for flexible process and high efficiency
*Outer screen cleaning mechanism for clog free production
*Reliable roller chain drive mechanism for stable processing
*Dust cover structure on top/ at stream outlet for hooking up into central cleaning system
*Option of portable structure
*Laser cutting applies to sheet metal components for quality and accuracy
Grain |
Parameter |
Capacity(t/h) |
|
|
Wheat |
Inner sieve hole diameter(mm) |
Φ22 |
80 |
Φ20 |
70 |
||
Φ18 |
60 |
||
Φ16 |
50 |
||
Outer sieve hole diameter(mm) |
Φ1.8-Φ3.2 |
|
|
Maize |
Inner sieve hole diameter(mm) |
Φ24 |
85 |
Φ22 |
75 |
||
Φ20 |
65 |
||
Φ18 |
50 |
||
Outer sieve hole diameter(mm) |
Φ4.5-Φ6.5 |
Up to moisture and grind content |
|
Soybeen |
Inner sieve hole diameter(mm) |
Φ24 |
85 |
Φ20 |
75 |
||
Φ18 |
65 |
||
Φ16 |
50 |
||
Φ14 |
40 |
||
Outer sieve hole diameter(mm) |
Φ2.5-Φ5 |
Up to moisture and grind content |
|
Paddy |
Inner sieve hole diameter(mm) |
Φ24 |
60 |
Φ22 |
50 |
||
Φ20 |
40 |
||
Outer sieve hole diameter(mm) |
Φ1.6-Φ2.5 |
|
|
