multi function wheat seed cleaner
- 1 Set / Sets per Month
- Xingang
- T/T
Product Details
Type: | seed cleaning and processing machine | Use: | seed cleaning | Certification: | ISO, TUV,SGS,ITS |
Place of Origin: | Hebei, China | Brand Name: | Synmec | Model Number: | 5XZS-10CDS |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

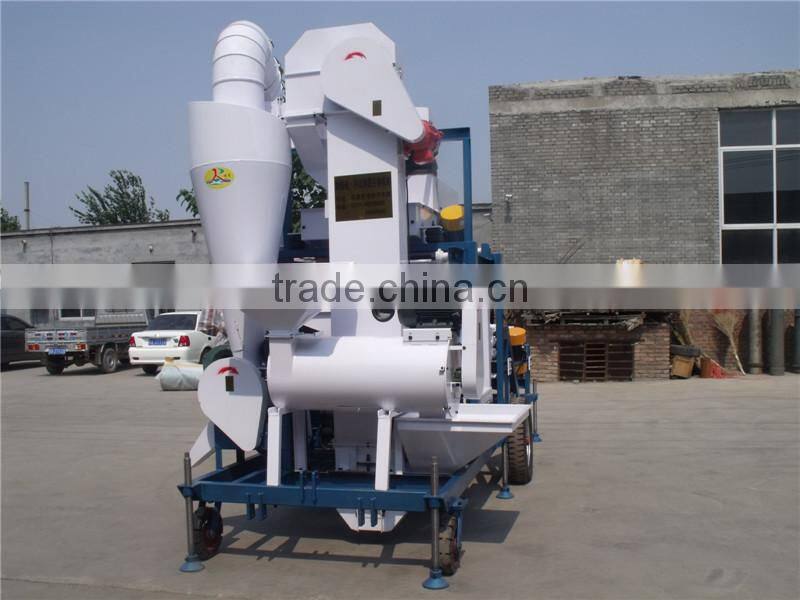

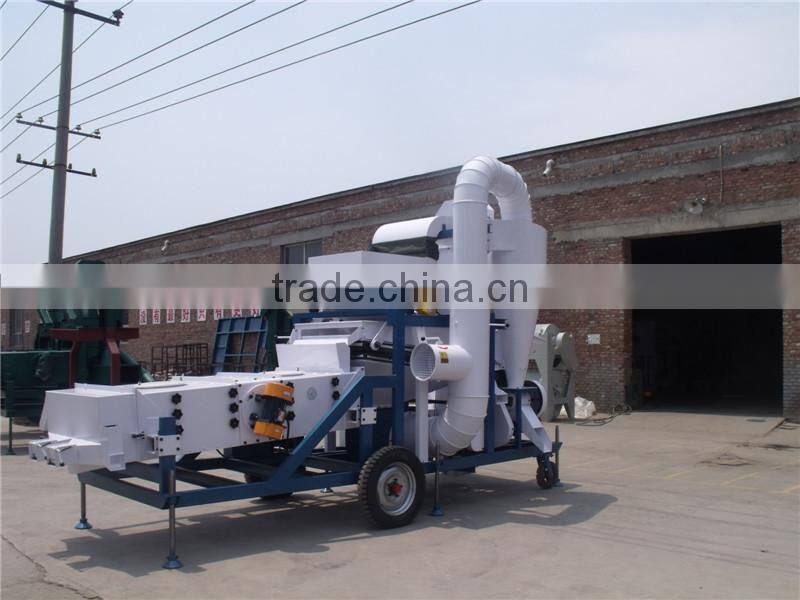

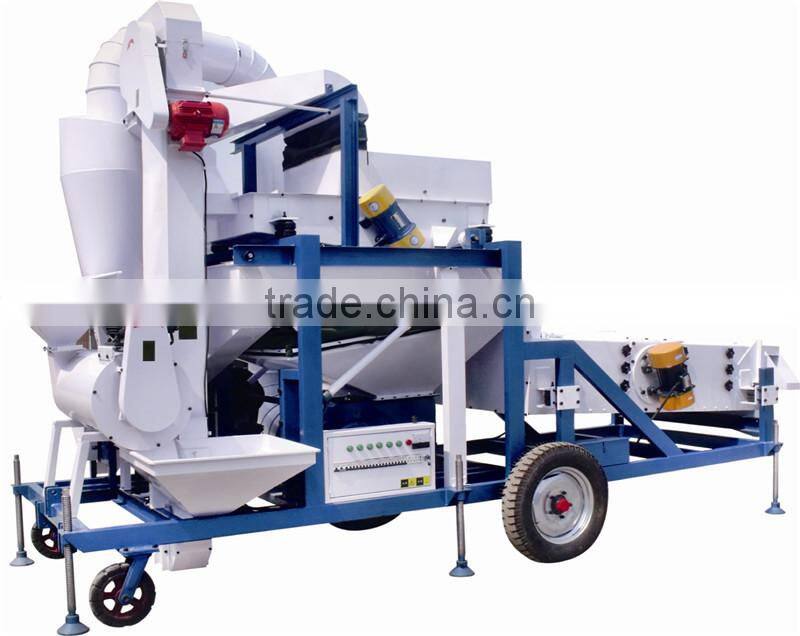

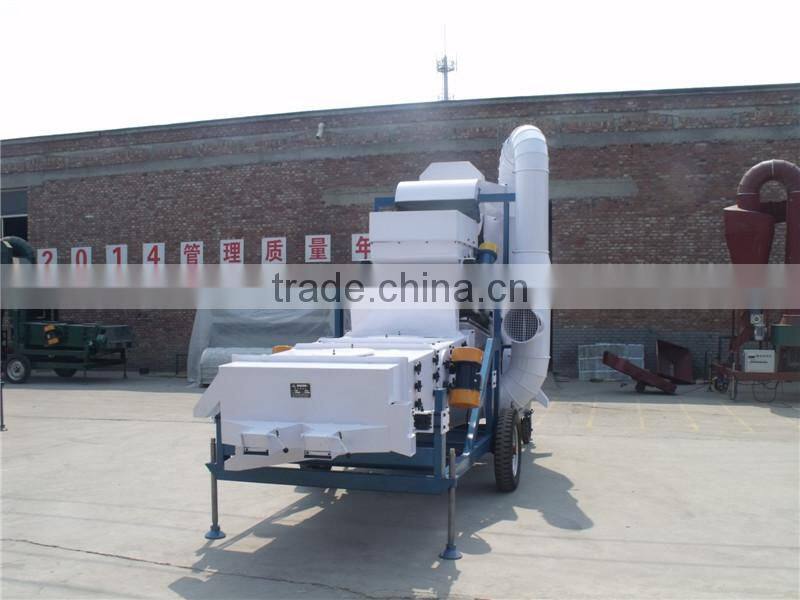

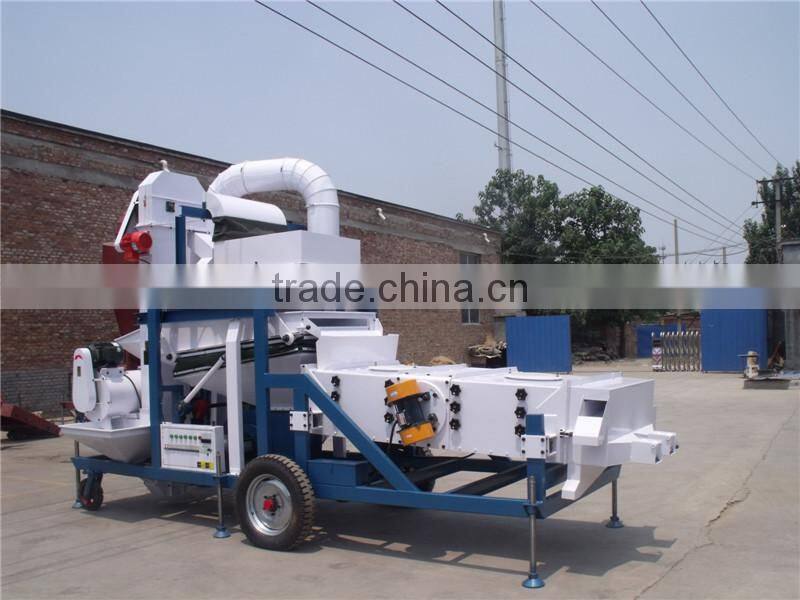

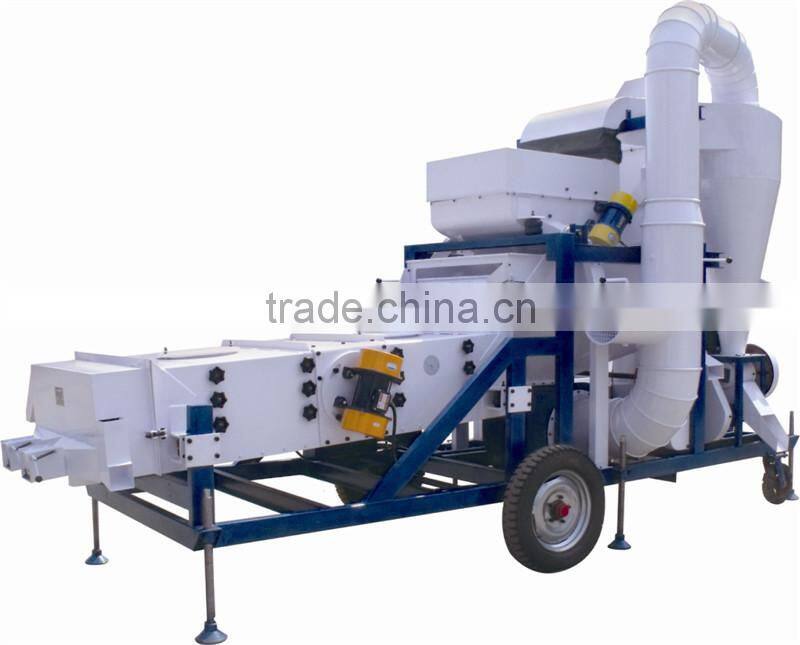

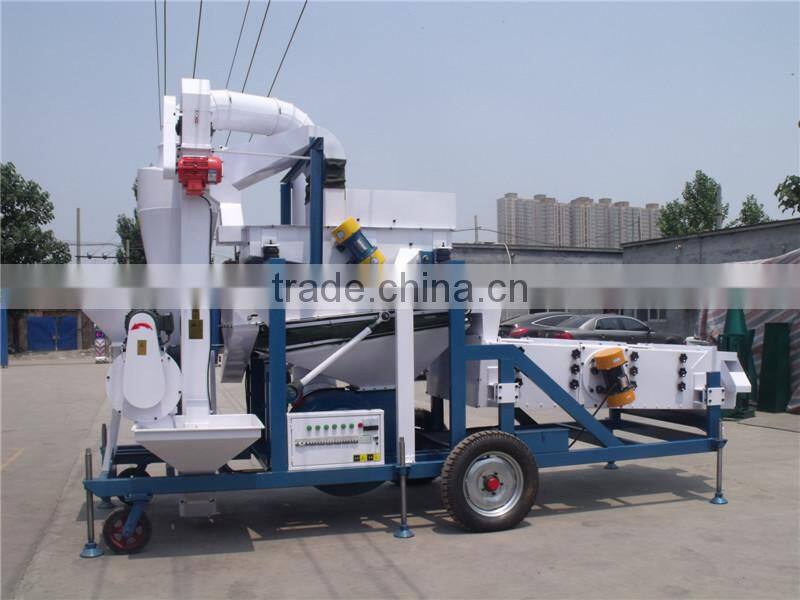

multi function wheat seed cleaner
Feature
The 5XZS-5CDS Seed Cleaning & processing machine is uniquely designed with wheat hulling, air cleaning, gravity separating, vibratory sieve separating and grading maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changeability, it is a patent product in 2014.
The intake hopper enables wheat filling into the wheat huller to hulling the wheat, following lifting up by the bucket elevator to enter to the vibratory air cleaning chamber, which is patent design and lead to the best air cleaning efficiency, then the air cleaned wheat enter to the gravity separator for remove the bad seed (partially eaten, immature, insect damaged, sick seed,, etc), then enter to the vibratory sieve for remove the large and small impurity, also grading your seed to different levels by size. The grain after processed by that machine, it will become seed which can be sowing.
Note: .When you process other grains (not wheat), you can put the grain into the hopper of bucket elevator straight way, and turn off the wheat huller. We also have other model available which without wheat huller such as 5XZS-5DS Seed Cleaning & Processing Machine.
Data Sheet
Model | Capacity (metric tons per hour) | Power (KW) | Weight (KG) | Dimension Length * Width * Height (mm) | Sieve layer size Length*Width (mm) | Remark |
5XZS-5CDS | 5 | 15.34 | 2400 | 4950*1900*3200 | 2000*1000 | With Wheat Huller |
5XZS-5DS | 5 | 11.34 | 2200 | 4950*1900*3200 | 2000*1000 |
|
5XZS-10CDS | 10 | 23.6 | 3200 | 6000*2200*3300 | 2400*1500 | With Wheat Huller |
5XZS-10DS | 10 | 15.6 | 2900 | 6000*2200*3300 | 2400*1500 |
|
.
FCL package show
FCL (full container load) goods packing: Machinery has been well coated by white plastic film, fixed in the container by blet fasteners, strong irowire and steel wedge.These fasten measure ensure your goods safety in shipping.
Other machine may you are interested
1. Seed cleaner & grader : remove dust,light impurity by air suction,remove big and small impurity by sieve grading.
2. Destoner: use to remove stones and other heavy impurity as glass, metalic pieces from grain seeds.
3. Gravity Separator: used to remove the partially eaten,immature, damaged, sick ones, especially for seed separation.
Synmec also built different processing plants worldwide.
Barley Seed Processing Plant in Australia
Hebei Ruixue Grain Selecting Machinery Co., Ltd was established in 2002. We are professional grain seed processing machine manufacturer. Seed cleaner, destoner, gravity seprator, etc are all our competitive machines. In 2010 we founded SYNMEC, as an International brand and works on international marekt. Our professional teams are motivated to provide efficient solutions to clients over the world. Up to Jan 2016, we exported machines over 100 countries and building 58 sets grain seed processing plants wordlwide.Sincerely wish to cooperate with you.
Factory workshop
Q1. Which machine is suitable for my grain/seed?
Plese inform us your raw material condition, our engineer will recommend suitable machine to you.
Q2.How can I know the machine performance?
We have machine test video for your reference.
Q3.What is your company after-sales service?
Everey machine enjoy 1 year warranty. We will offer fully guidance on operation questions. Any parts problem happended during the warranty year, our company will offer you spares. After warranty, we help clients solve problem patiently as our repsonsibility.
Any question or idea feel free to contact me by following contact details.
Contact person: Ms.Joyce Liu
Contact e-mail: joyce at
Tell/Fax No.: 0086-311-67663887
Mobile No.: 0086-13180064751 Whatsapp:008613180064751
Skype: synmec-joyce QQ: 1523721875
Trade Manager: cn220238132
Website:
