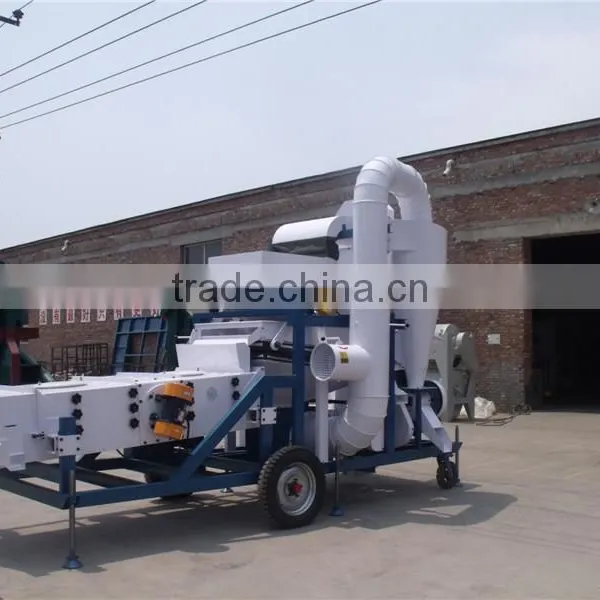

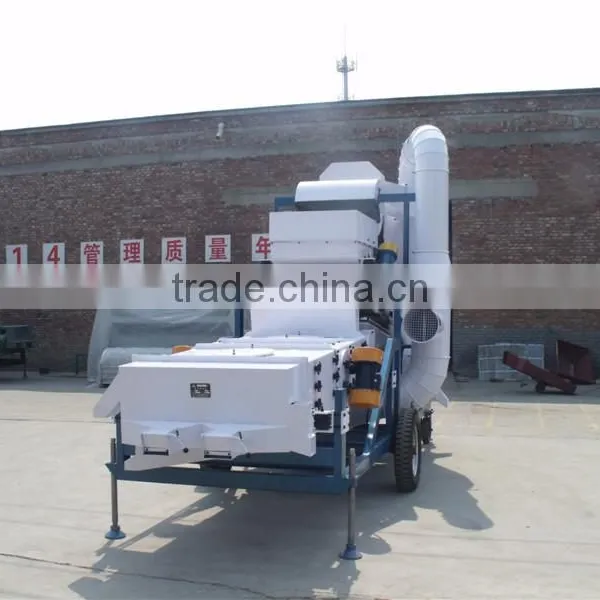

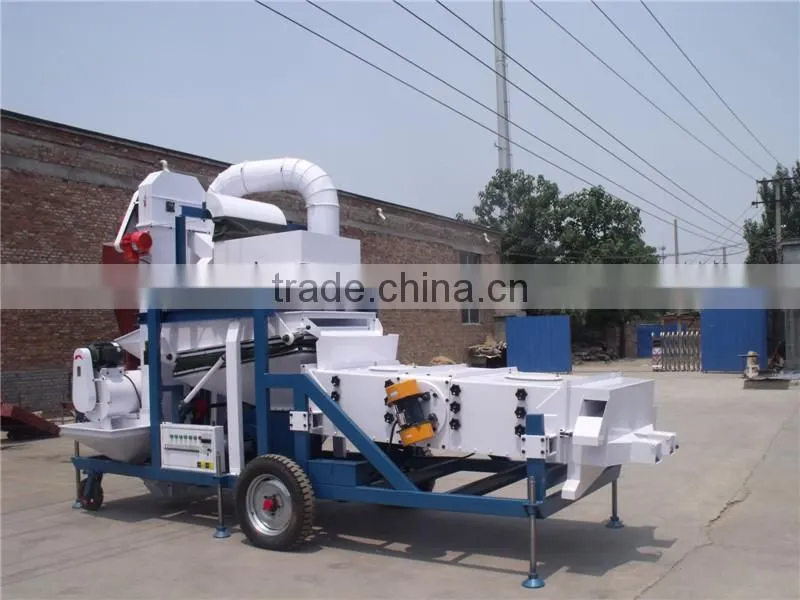

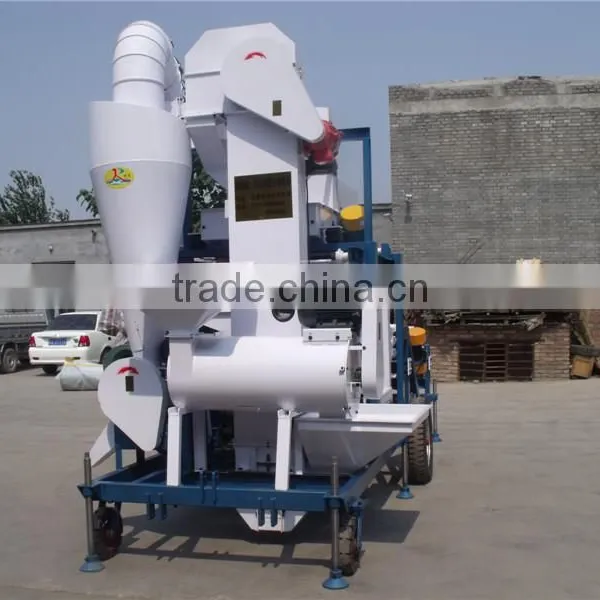

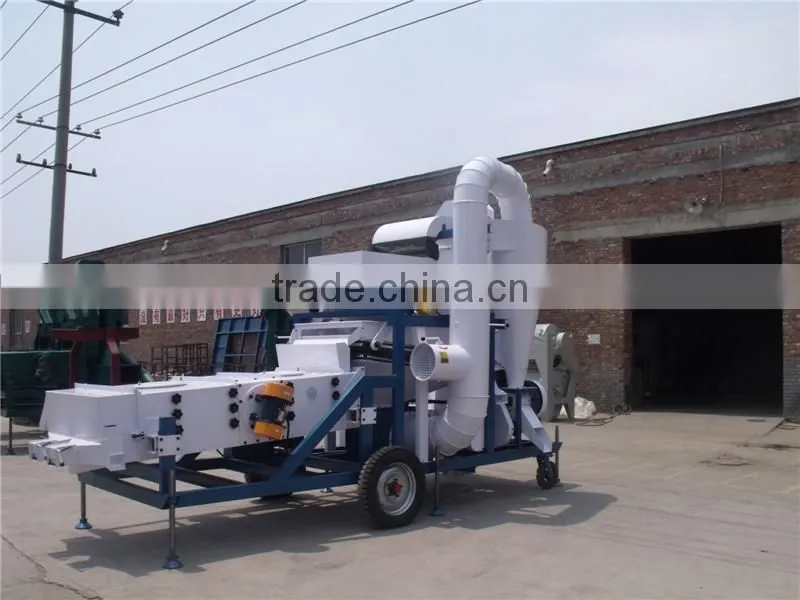

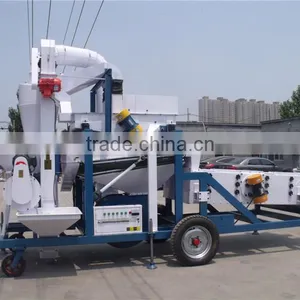

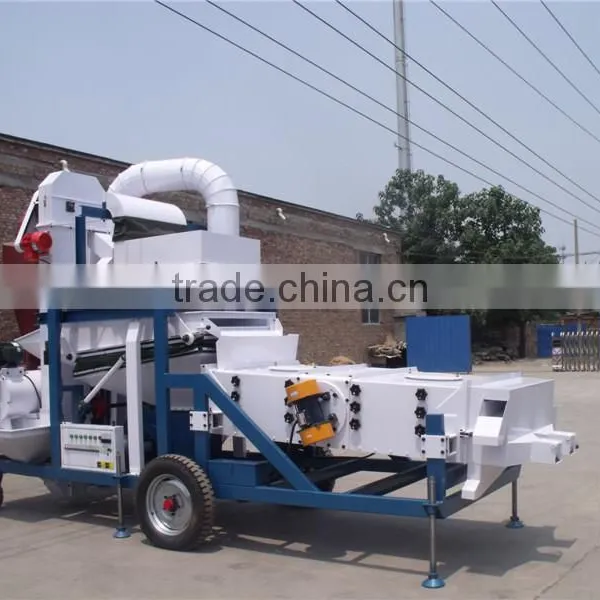

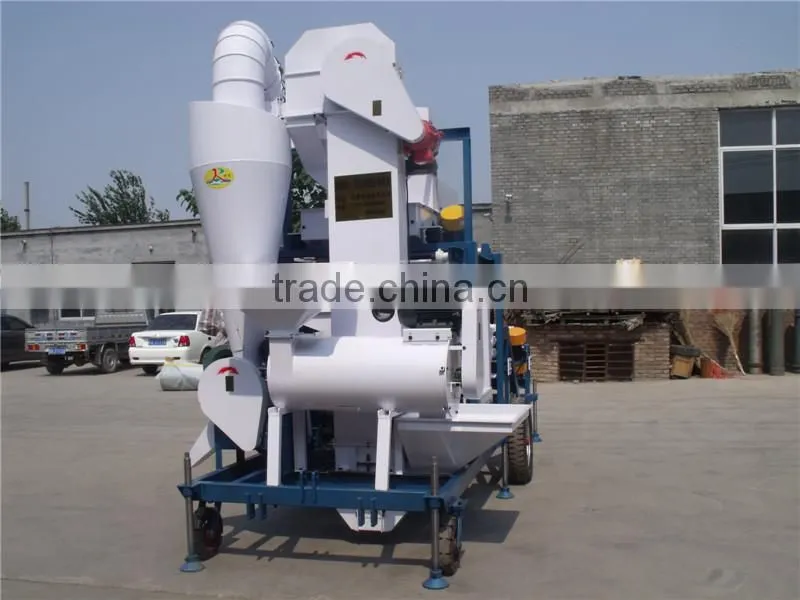

Air Screen Cleaner with Gravity Table
Appliacation of Air Screen Cleaner with Gravity Table :
The Air Screen Cleaner with Gravity Table is uniquely designed with wheat hulling, air cleaning, gravity separating, vibratory sieve separating and grading .
maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changeability,
it is a patent product in 2014.
Note: .When you process other grains (not wheat), you can put the grain into the hopper of bucket elevator straight way, and turn off the wheat huller.
Working process of 5XZS Air Screen Cleaner with Gravity Table :

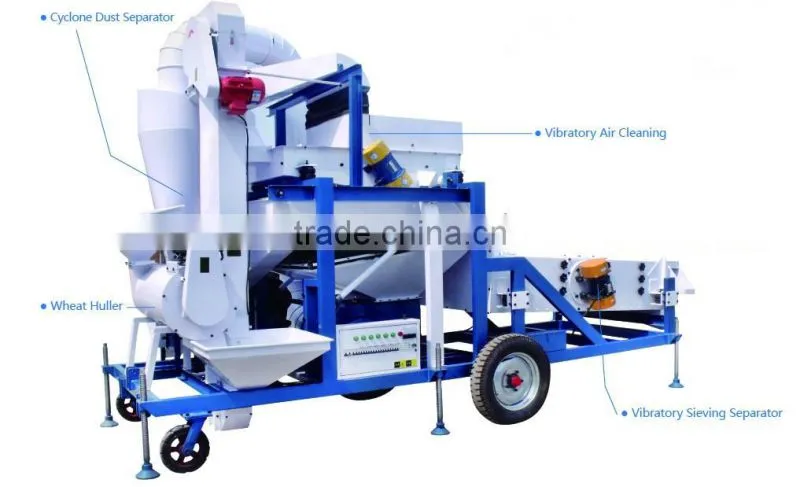

The intake hopper enables wheat filling into the wheat huller to hulling the wheat, following lifting up by the bucket elevator to enter to the vibratory air cleaning chamber, which is patent design and lead to the best air cleaning efficiency, then the air cleaned wheat enter to the gravity separator for remove the bad seed (partially eaten, immature, insect damaged, sick seed,, etc), then enter to the vibratory sieve for remove the large and small impurity, also grading your seed to different levels by size. The grain after processed by that machine, it will become seed which can be sowing.
Technician Information of 5XZS Air Screen Cleaner with Gravity Table :
Model |
Capacity (metric tons per hour) |
Power (KW) |
Weight (KG) |
Dimension Length * Width * Height (mm) |
Sieve layer size Length*Width (mm) |
Remark |
5XZS-10CDS |
10 |
23.6 |
3200 |
6000*2200*3300 |
2400*1500 |
With Wheat Huller |
5XZS-10DS |
10 |
15.6 |
2900 |
6000*2200*3300 |
2400*1500 |
|
The multifunctional seed processing machines has functions same with
Seed Cleaner and Gravity Separator:
5XZC-5DH Seed Cleaner and Grader 5XZ-6 Gravity Separator
Other machines that you may interested with:
5XZF-7.5F seed cleaner and grader 5XZD-15AC large capacity seed cleaner
5XQS-5 Destoner 5BY-5B Seed Coating Machine
We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.
Our company is manufacturer and also distributer in Agricultural, Food Processing, Construction machinery equipments and tools.
We are specifically manufacturing and exporting seeds processing machines, such as seeds cleaner, seed separator ,destoner, seed treater and packing machine etc. and also provide turnkey solutions for all kinds of seed processing line.
we have clients in over 70 countries around the world, and earns a goood reputation.
