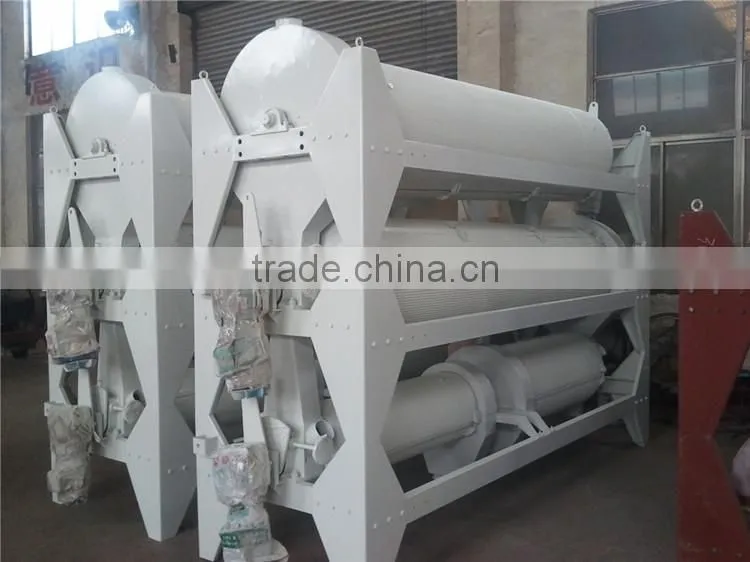

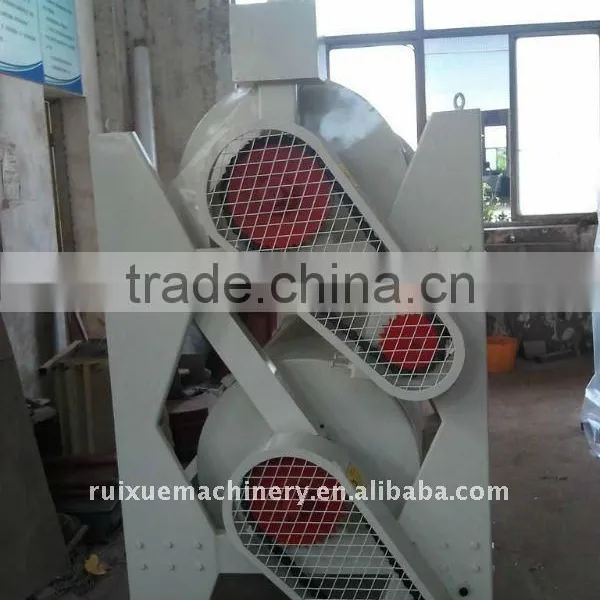

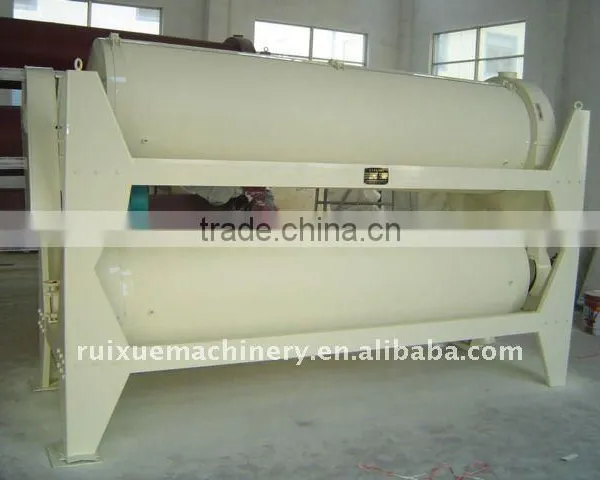

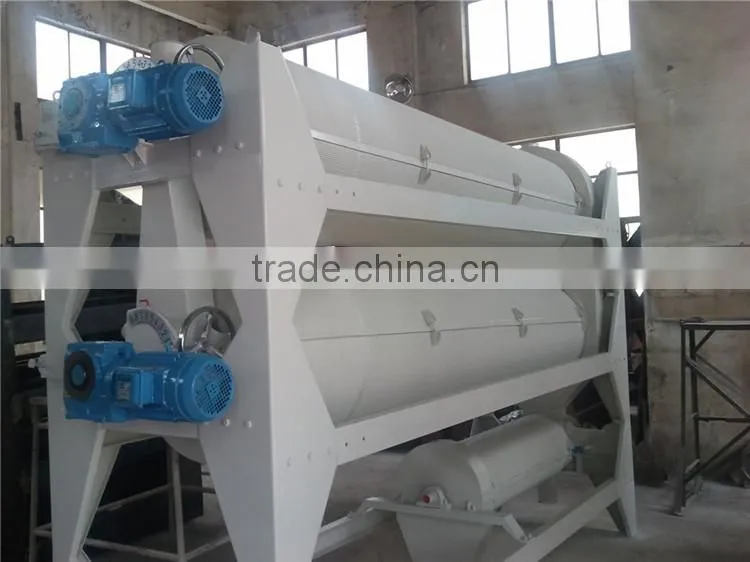

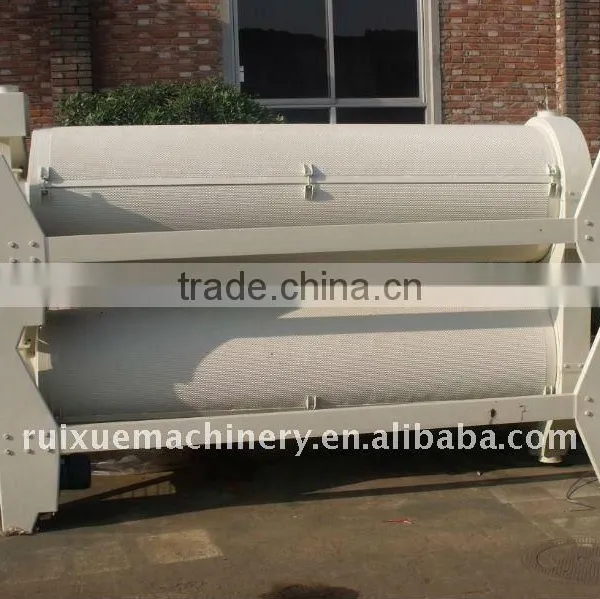

Indented cylinder separator
Application of indented cylinder separator :
indented cylinder separator can be used to clean and classify granule materials according their length. It can clean long and short mishmashes from wheat, barley, paddy, maize, rice etc; also can has the function of classifying them.
Features of indented cylinder separator :
The cylinder has two connection ways: in series connection and parallel connection, they are chosen according to the capacity and the grading levels requested, which improve the flexibility and efficiency.

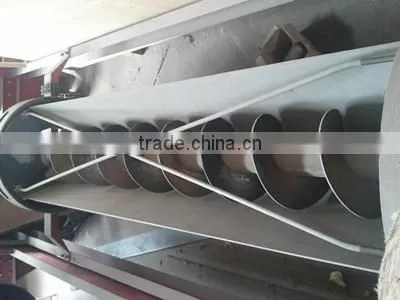

Discharging system adopt curve-path structure, Whole body adopts cabinet enclosed construction, having good tightness.

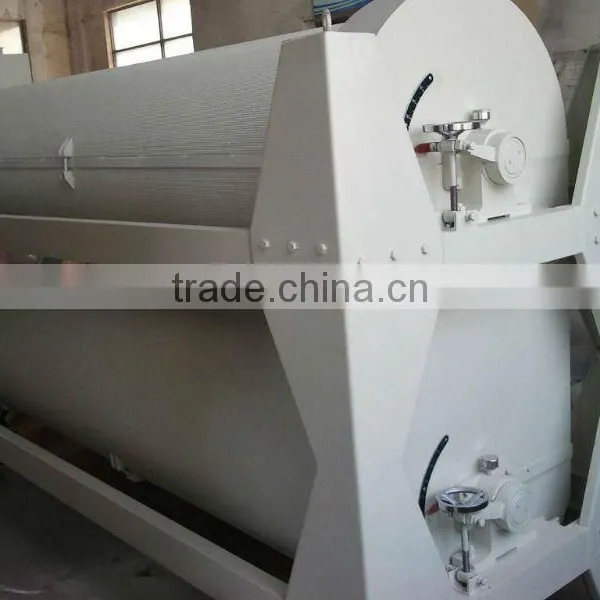

Main parameters can be regulated according to stepless control mode. So it can realize fine processing for different crops.
Model No. |
Capacity (kg/h) |
Cylinder Length (mm) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
5XWM-63X41S |
12000 |
Main Cylinder 630*3000mm Anxiliary cylinder :415*1250mm |
5.5 |
3750*1000*2700 |
2200 |
Model No. |
Capacity (kg/h) |
Cylinder Length (mm) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
5XWM-63X56D |
8000 |
Main Cylinder 630*3000mm Anxiliary 1st cylinder :415*1250mm Anxiliary 2nd cylinder :560*1250mm |
5.9 |
3800*1000*2700 |
2400 |
We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.
If you have interest in other grain processing machines, please click the photos for further information.
It is used to remove dust,light impurities, and remove large, small impurities from good grain, it can also grading good grain into different levels by size.
It can remove immature, moldy, insect damaged grain , half broken or hollow grain etc from good grain.
It can remove heavier impurities, like stones, metals or glasses from good grain.
It can pack grain into different weighing range, such as 1-5kg , 1-10kg, 5-25kg and 10-50kg per bag.
