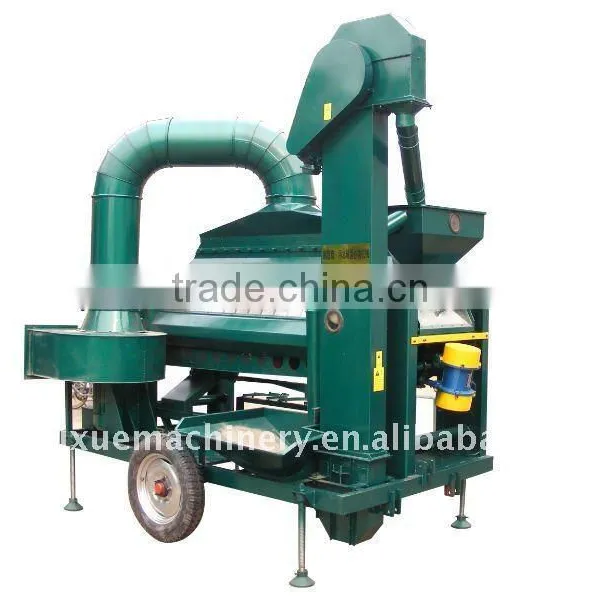

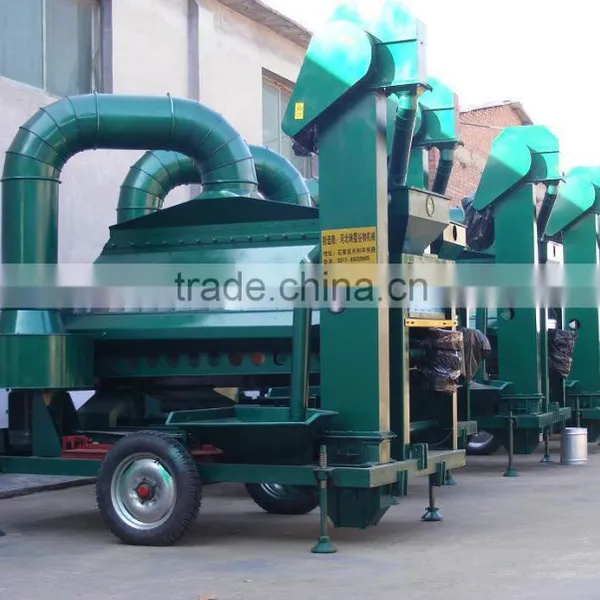

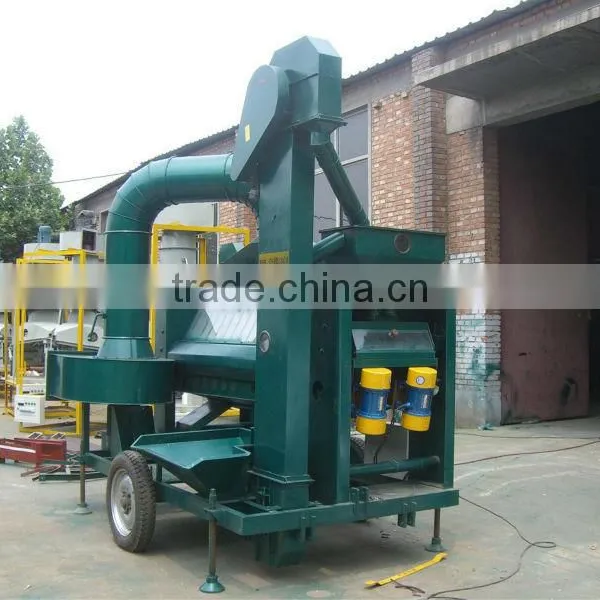

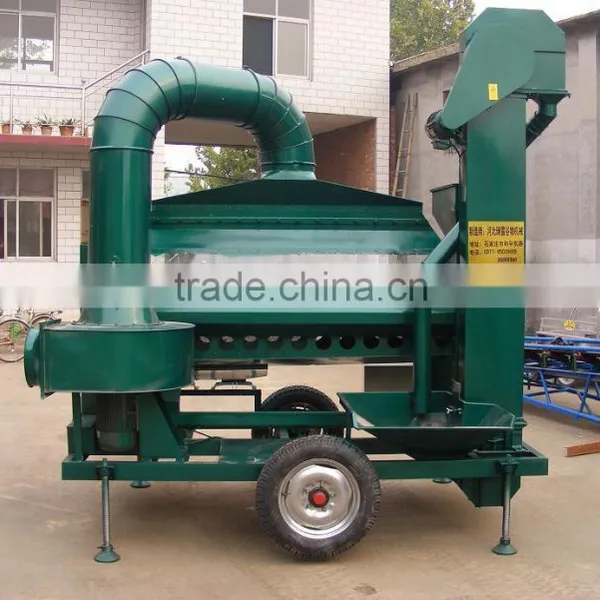

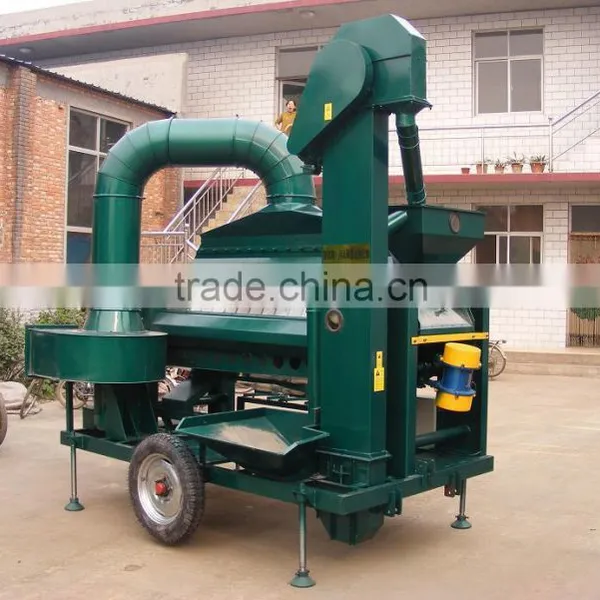

Barley Seed Gravity Separator
Features of 5XZ-5B Barley Seed Gravity Separator:
5XZ-5B Barley Seeds gravity separator is used to separate seed and grain with same size but difference in specific weight.
The 5XZ-5B Barley Seeds gravity separator is suction type gravity separator.
Application of 5XZ-5B Barley Seed Gravity Separator:
5XZ-5B Barley Seeds gravity separator is the most popular gravity separator model in China , widely used in seed and grain industry ,with best performance for wheat, maize, corn and other proved by users.
5XZ-5B Barley Seeds gravity separator can efficiently remove immature seed, insect damaged seed, sick seeds, etc.
Working Principle of 5XZ-5B Barley Seed Gravity Separator:
By air aspiration and sieve shaking, seed is fluidized and into two layers.
Heavy seed sink into the sieve bottom layer, while light seed (bad seed) suspend to the top layer.
Good seed and mixed seed in Bottom layer fall through the sieve and discharge from different outlets, and mixed seeds will return back by reflow vibrate feeding gear and do one more time separation.
At the same time bad seed which in top layer will discharged directly.
Model |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
Sieve Size L×W(mm) |
Dimension L×W×H (mm) |
Remarks |
5XZ-3A gravity separator |
3 |
5 |
1200 |
2000×325 |
4000×1800×2750 |
Suction type with dust cyclone separator |
5XZ-5A gravity separator |
5 |
9.62 |
1600 |
2000×475 |
4000×1900×3100 |
Suction type with dust cyclone separator |
5XZ-3B gravity separator |
3 |
4.25 |
1100 |
2000×325 |
4000×1800×2750 |
Suction type |
5XZ-5B gravity separator |
5 |
9 |
1550 |
2000×625 |
4000×1900×3100 |
Suction type |
If you have interest in other grain processing machines, please click the photos for further information.
It is used to remove dust,light impurities, and remove large, small impurities from good grain, it can also grading good grain into different levels by size.
It can remove immature, moldy, insect damaged grain , half broken or hollow grain etc from good grain.
It can remove heavier impurities, like stones, metals or glasses from good grain.
It can pack grain into different weighing range, such as 1-5kg , 1-10kg, 5-25kg and 10-50kg per bag.
