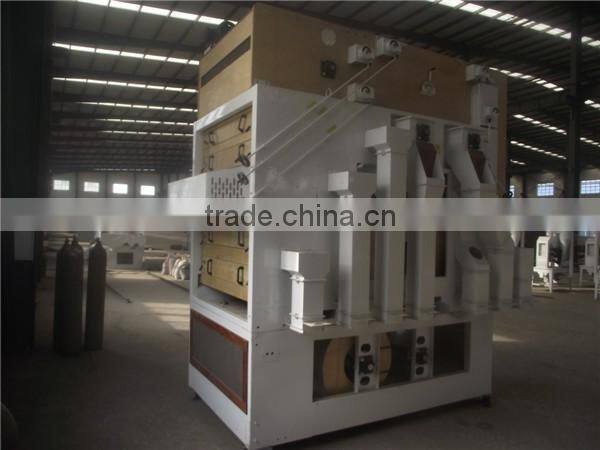

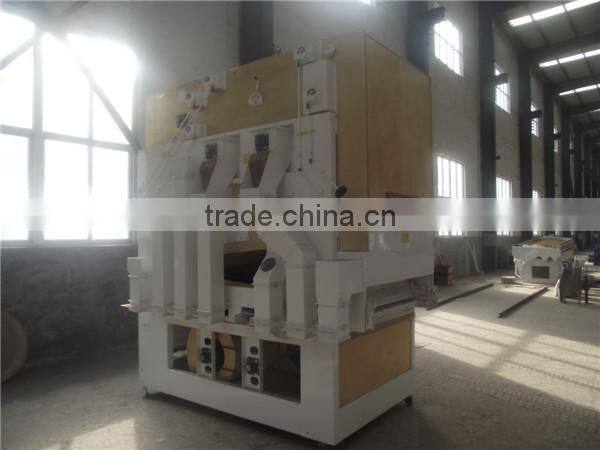

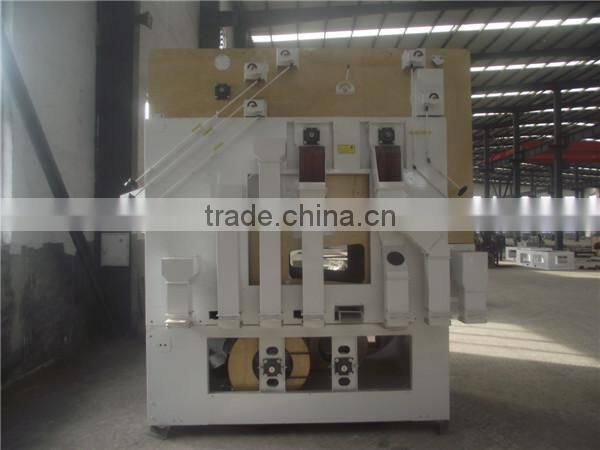

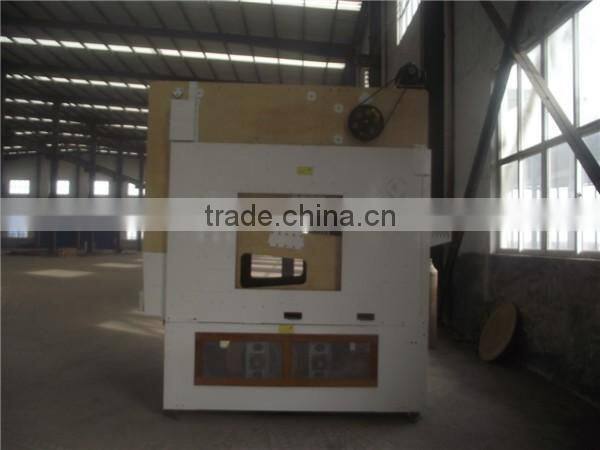

Grain Cleaner Seed Vibration Cleaner
Introduction of 5X Grain Cleaner Seed Vibration Cleaner :
The 5X series Grain Cleaner Seed Vibration Cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre- and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X series Grain Cleaner Seed Vibration Cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
Characteristics of Grain Cleaner Seed Vibration Cleaner :
l Easy and quick operation and screen changing
l The screen boxes are made of wear resistant plywood, which is approved for food
l Screen cleaning with special rubber balls
l Built-in light.
l Durable surface of the machine owing to high-quality powder lacquering
Model |
5X-5 |
5X-12 |
Dimension(L×W×H) |
3200×1920×3600 mm |
3790×1940×4060 mm |
Overall weight |
3250 kg |
3600 kg |
Rated capacity |
5 t/h |
12 t/h |
Overall air volume |
8200 m3 |
12520 m3 |
External air blower |
4-72N0-6A, 7.5 kW |
4-79N0-6A, 5.5kw |
Vibration sieve motor(gear motor) |
2.2 kW |
2.2 kW |
Back lifting system motor |
3.0 kW |
3.0 kW |
Feeding motor |
1.5 kW |
0.75kw |
Total Power |
6.7 kW |
11.45kw |
Air Blower Type |
centrifuge air blower |
|
Top air blower Rotary speed |
4-79NO6A,1400 r/min |
|
Back lifting air blower Rotary speed |
100~1000 r/min |
|
Screen Type |
piercing screen |
|
Screen Dimension (L×W) |
800×1250 mm |
|
Frequency |
300(80~400) times/min |
|
Amplitude |
30 mm |
|
Layers and number |
4 layers,7 pieces |
5 layers,15 pieces |

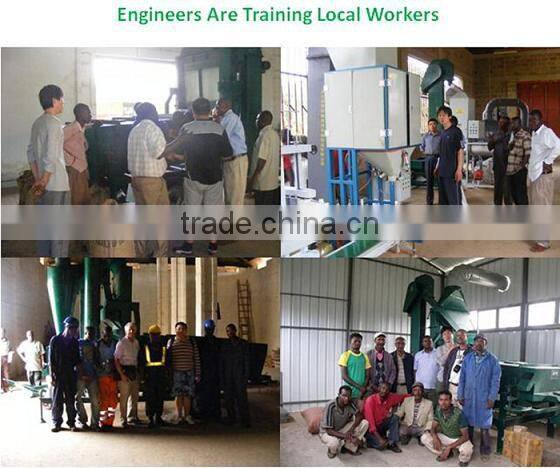

We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.
If you have interest in other grain processing machines, please click the photos for further information.
It is used to remove dust,light impurities, and remove large, small impurities from good grain, it can also grading good grain into different levels by size.
It can remove immature, moldy, insect damaged grain , half broken or hollow grain etc from good grain.
It can remove heavier impurities, like stones, metals or glasses from good grain.
It can pack grain into different weighing range, such as 1-5kg , 1-10kg, 5-25kg and 10-50kg per bag.
