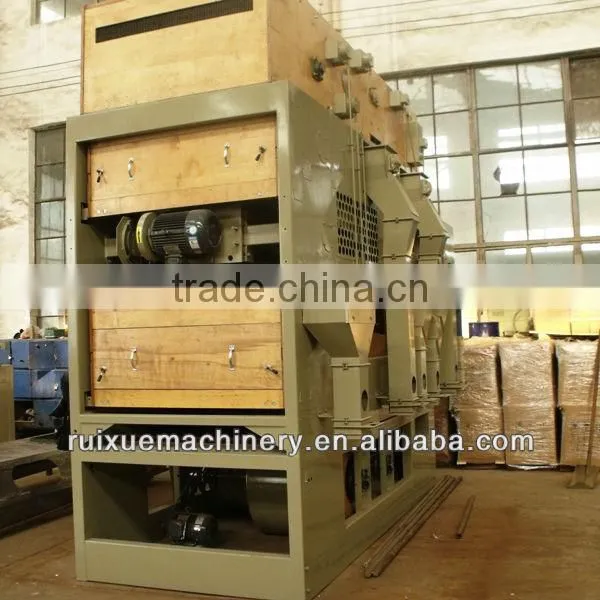

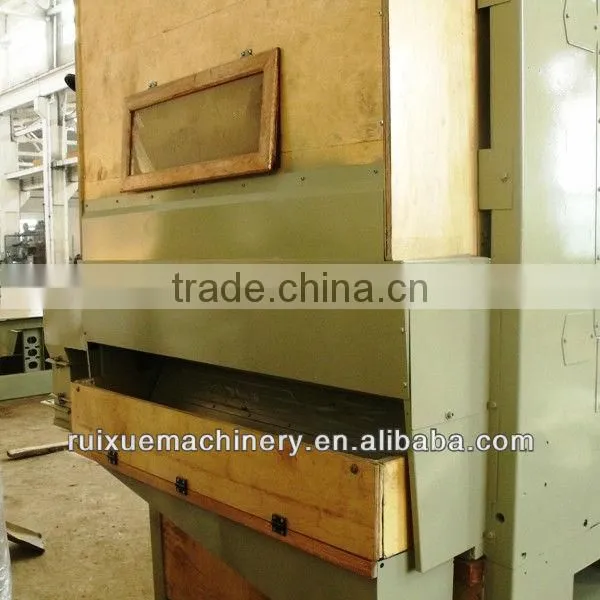

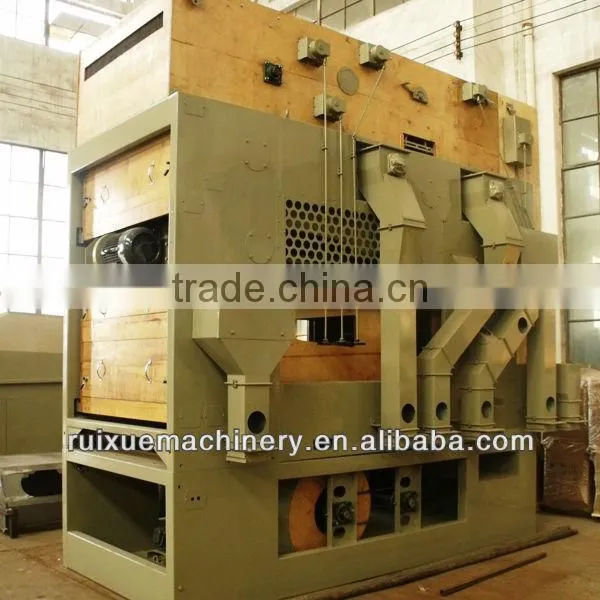

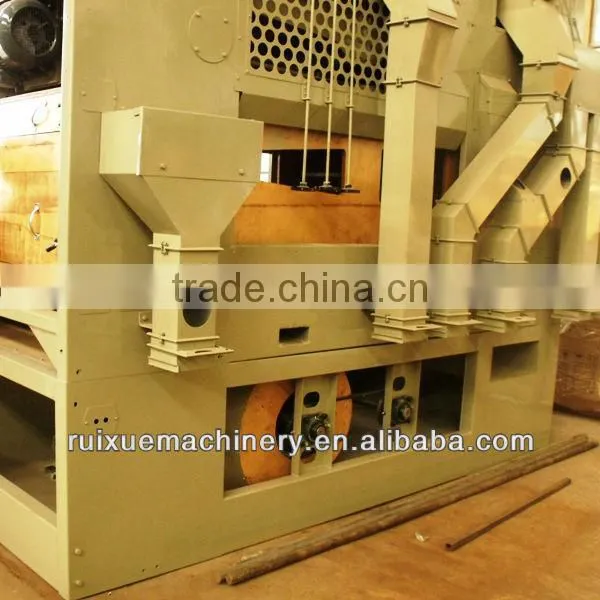

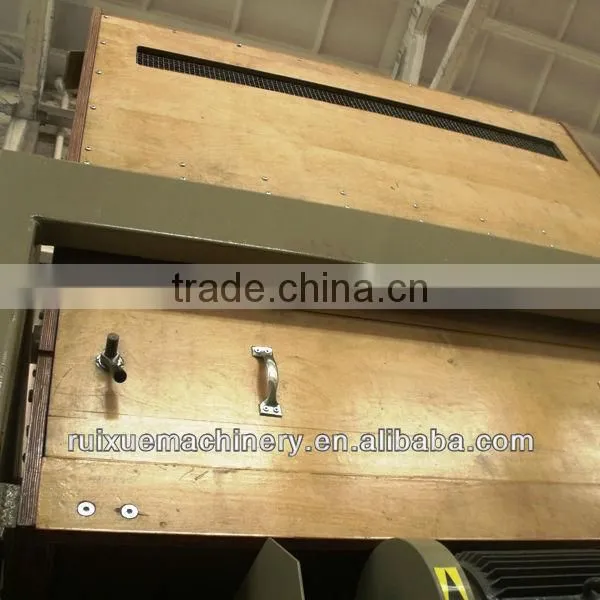

Chinese High Quality Wheat Cleaner / Grain Cleaning Machine Equipment with a Big Capacity (5000KG/H)
INTRODUCTION of Chinese High Quality Wheat Cleaner / Grain Cleaning Machine Equipment with a Big Capacity (5000KG/H)

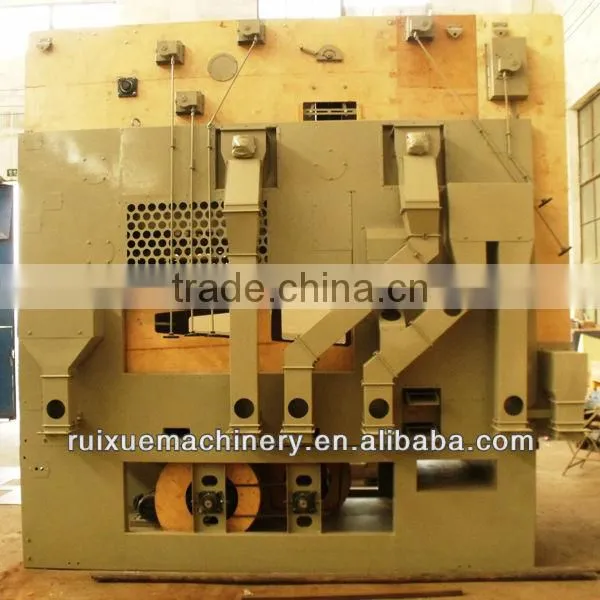

The 5X series Chinese High Quality Wheat Cleaner / Grain Cleaning Machine Equipment with a Big Capacity (5000KG/H) is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X series Chinese High Quality Wheat Cleaner / Grain Cleaning Machine Equipment with a Big Capacity (5000KG/H) is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
- Easy and quick operation and screen changing
- The screen boxes are made of wear resistant plywood, which is approved for food
- Screen cleaning with special rubber balls
- Built-in light
- Durable surface of the machine owing to high-quality powder lacquering
SPECIFICATION of Chinese High Quality Wheat Cleaner / Grain Cleaning Machine Equipment with a Big Capacity (5000KG/H)
Model |
5X-5 |
5X-12 |
Dimension(L×W×H) |
3200×1920×3600 mm |
3790×1940×4060 mm |
Overall weight |
3250 kg |
3600 kg |
Rated capacity |
5 t/h |
12 t/h |
Overall air volume |
8200 m3 |
12520 m3 |
External air blower |
4-72N0-6A, 7.5 kW |
4-79N0-6A, 11kw |
Vibration sieve motor(gear motor) |
2.2 kW |
2.2 kW |
Back lifting system motor |
3.0 kW |
3.0 kW |
Feeding motor |
1.5 kW |
1.5kw |
Total Power |
6.7 kW |
6.7kw |
Air Blower Type |
centrifuge air blower |
|
Top air blower Rotary speed |
4-79NO6A,1400 r/min |
|
Back lifting air blower Rotary speed |
100~1000 r/min |
|
Screen Type |
piercing screen |
|
Screen Dimension (L×W) |
800×1250 mm |
|
Frequency |
300(80~400) times/min |
|
Amplitude |
30 mm |
|
Layers and number |
4 layers,7 pieces |
5 layers,15 pieces |
Screen number and type | ||
level 1 |
1 piece round hole |
3 pieces slot hole |
level 2 |
2 pieces slot hole |
3 pieces slot hole |
level 3 |
2 pieces slot hole |
3 pieces slot hole |
level 4 |
2 pieces slot hole |
3 pieces slot hole |
level 5 |
null |
3 pieces slot hole |
