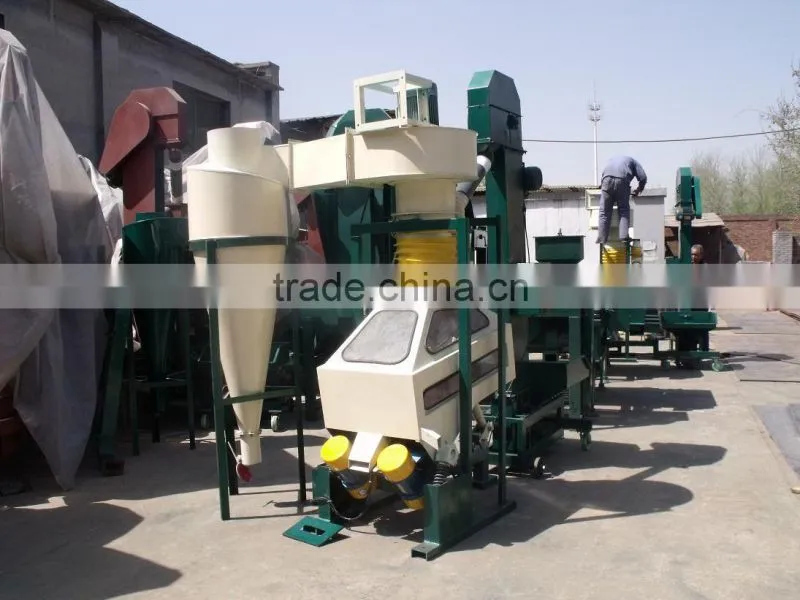

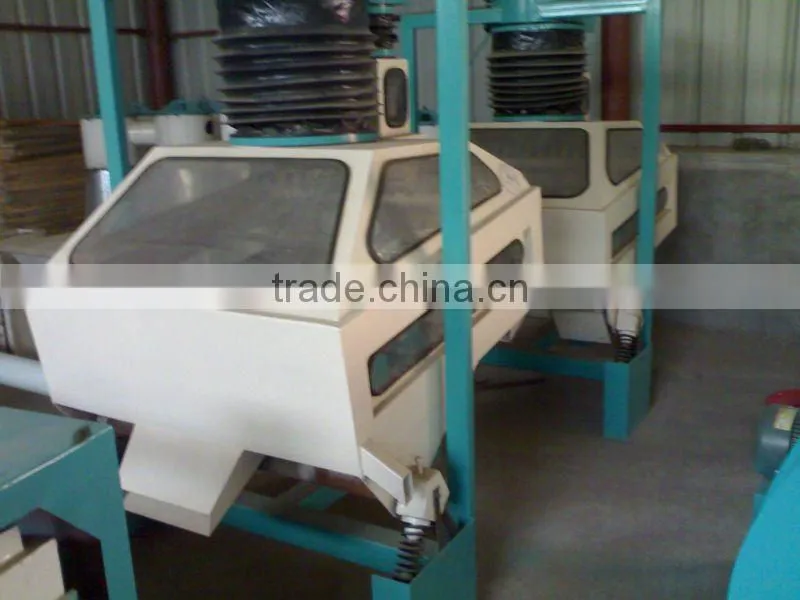

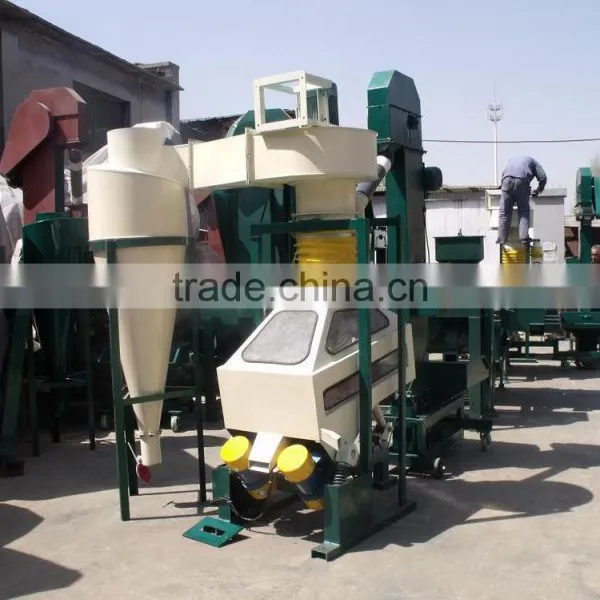

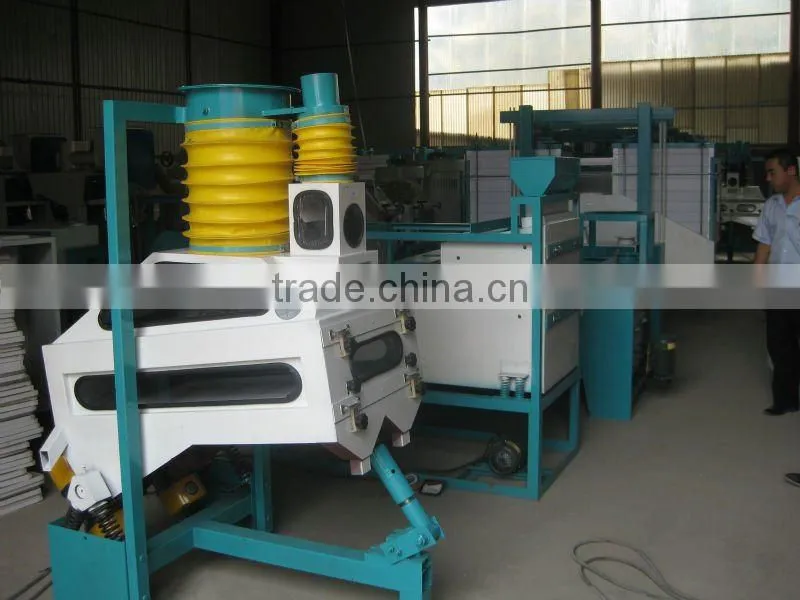

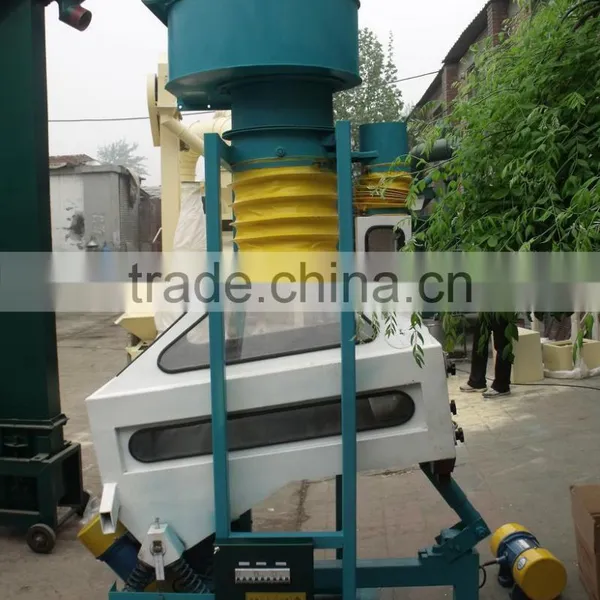

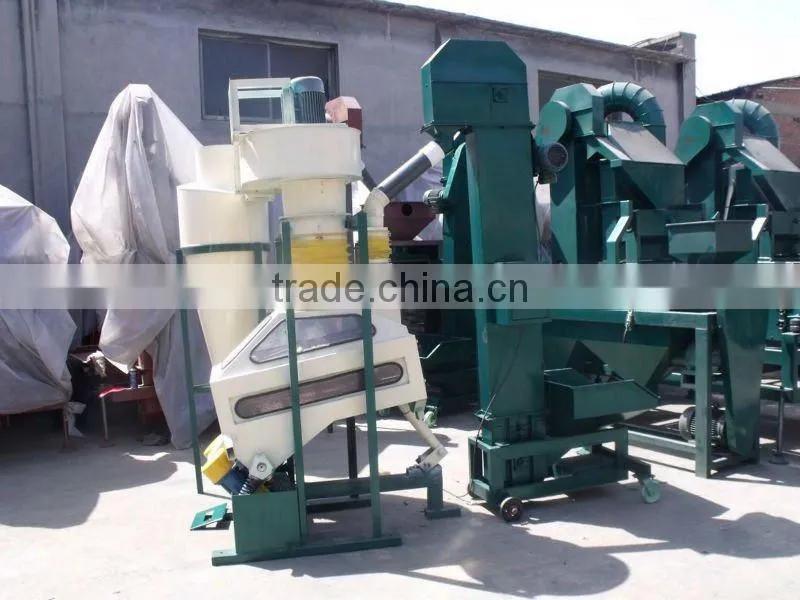

Oats Destoner
Introduction of TQSF Series Oats Destoner :
TQSF Oats destoner is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.
Features of TQSF Oats Destoner :

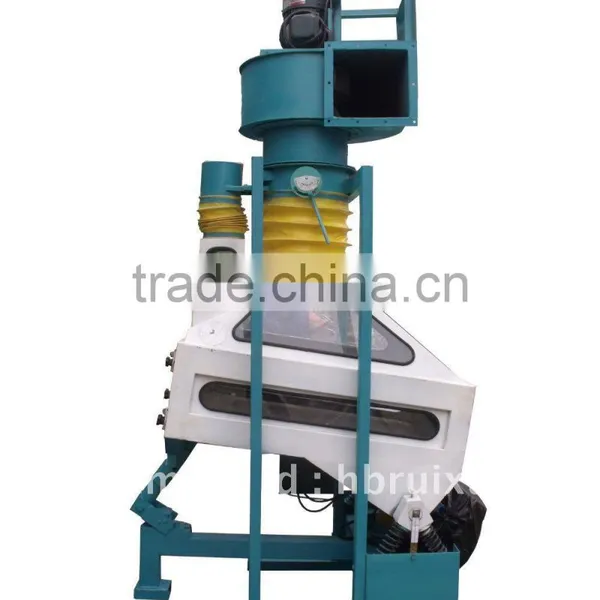

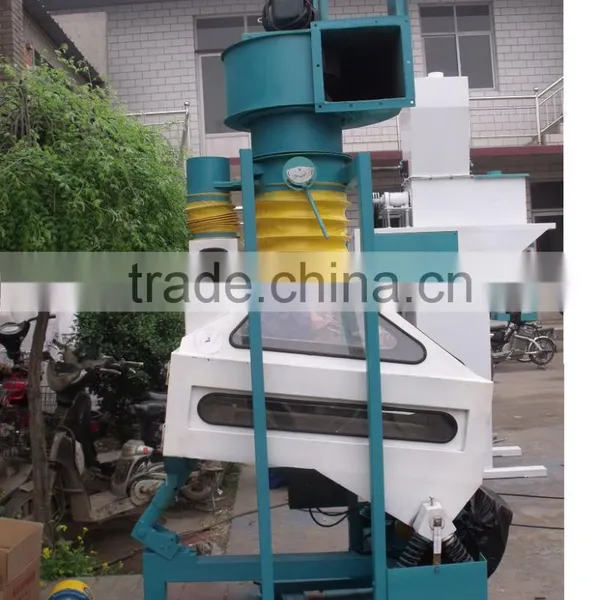

TQSF-60 Oats Destoner is suction type destoner, but it has two sieve layers, the first sieve layer to remove out some large impurities such as straws, and the second sieve layer is used for remove out stones.
Working Principle of TQSF Oats Destoner :

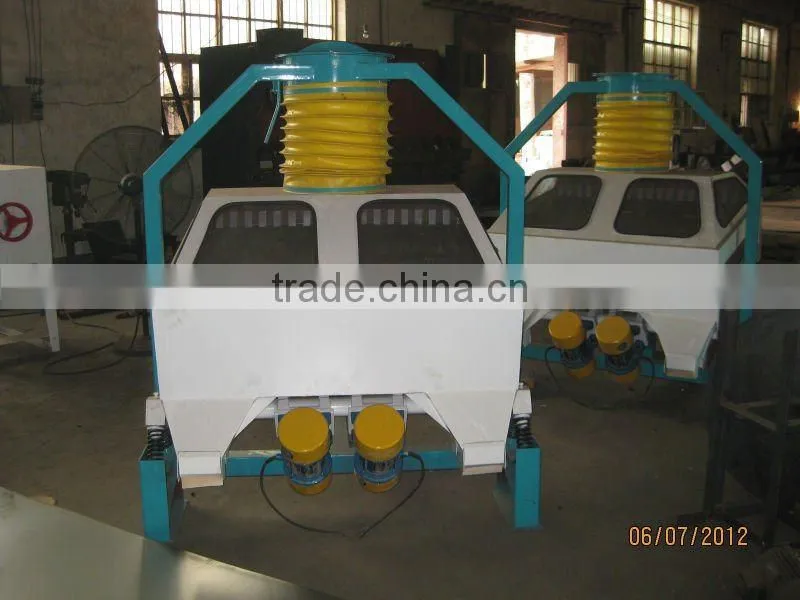

The sieve box normally equipped with two-layer sieves, and its vibration depend on two vibratory motors.
The grain feed in with an elevator, and then the grain stream fluided by the vibration of the screen and air suction from bottom to top. The light particles collect at the top, and the heavy ones including the stones at the bottom.
The lower layer with the heavy particles flows upward and transport to the stone outlet. The stone-free grain streams on the two screens float on cushions of air, flowing slowly toward the grain outlet.
To achieve the optimum degree of separation, the inclination of the screens, the air volume and final separation can be adjusted accordingly.
Model |
Capacity (tone/hour) |
Power (kw) |
Weight (kg) |
Dimension (L×W×H)mm |
Remarks |
5XQS-3 Destoner |
3 |
4.75 |
600 |
2200×1200×1600 |
Blowing type |
5XQS-5 Destoner |
5 |
7 |
700 |
2500×1660×1600 |
Blowing type |
QSX-85 Destoner |
5 |
3.55 |
400 |
1300×1500×3200 |
Suction type |
TQSF-60 Destoner |
5 |
3.5 |
320 |
1450×876×1800 |
Suction type |
TQSF-80 Destoner |
7.5 |
3.5 |
400 |
1450×1046×1800 |
Suction type |
TQSF-100 Destoner |
10 |
3.5 |
480 |
1450×1246×1920 |
Suction type |
If you have interest in other seed processing machines, please click the photos for further information.
It is used to remove dust,light impurities, and remove large, small impurities from good grain, it can also grading good grain into different levels by size.
It can remove immature, moldy, insect damaged grain , half broken or hollow grain etc from good grain.
It can remove heavier impurities, like stones, metals or glasses from good grain.
It can pack grain into different weighing range, such as 1-5kg , 1-10kg, 5-25kg and 10-50kg per bag.
We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.
