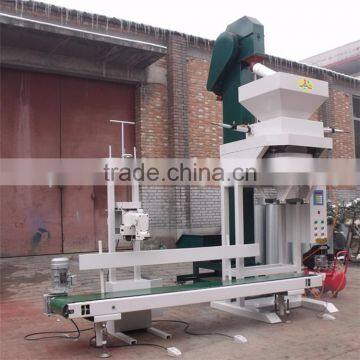

soybeans bagging scale/automatic bagging scales
Application of soybeans bagging scale/automatic bagging scales:
It is suitable for quantitative of granule materials in chemical, grain, food industry.This Bagging Machine can be applied both for free flowing and non-free flowing granule materials, such as the seed, commissariat, feedstuff, chemical raw material and chemical fertilizer etc.
Features of soybeans bagging scale/automatic bagging scales:
The DCS-B Bagging Machine is suitable for packing open-mouth bags made from paper, plastic, jute paper, or cotton with a filling weight ranging from 5 - 25 kg or 10 - 50kg depend on weight sensors. Its capacity ranges from 4 to 6 bags per minute.
Flowing Process of DCS-50B soybeans bagging scale/automatic bagging scales:
Manual Bag handling→Automatic filling→Automatic weighing→ bag conveyer→ bag sewing or sealing .
Advantages of DCS-50B soybeans bagging scale/automatic bagging scales:
1.DCS-50B Bagging Machine has the advantage of wide quantitative extent, high calculating precision, stable functioning, digital demonstration and easy operation.
2.The auto-adapted software has the function of controlling the parameter setup, the self-correcting of the fall height and fault self-diagnostics etc.
3.DCS-50B Bagging Machine adopts the imported sensor and pneumatic implementation mechanism which makes the work reliable, the maintenance easy and no pollution.
4.DCS-50B Bagging Machine 's cabinet adopt advanced plastic-sprayed craft and component contacted with raw material all adopt imported stainless steel that can be used for a long period, for its high sanitation standard and anticorrosion.
| Type |
Weighing Range (kg) |
Accuracy |
Throughput (bags) |
Working Environment | Power and Bag |
|
DCS-5B Bagging Machine |
0.5-5 | 0.2%F.S. | >400 |
-10ºC ~ +40ºC Relative Humidity ≤90% 4N-AV380V,50HZ |
2.5KW 0.3-0.5MPA Compressed air 1m³/h Able to use most common bag form |
|
DCS-10B Bagging Machine |
1-10 | 0.2%F.S. | >360 | ||
|
DCS-25B Bagging Machine |
5-25 | 0.2%F.S. | >360 | ||
|
DCS-50B Bagging Machine |
10-50 | 0.2%F.S. | >240 |

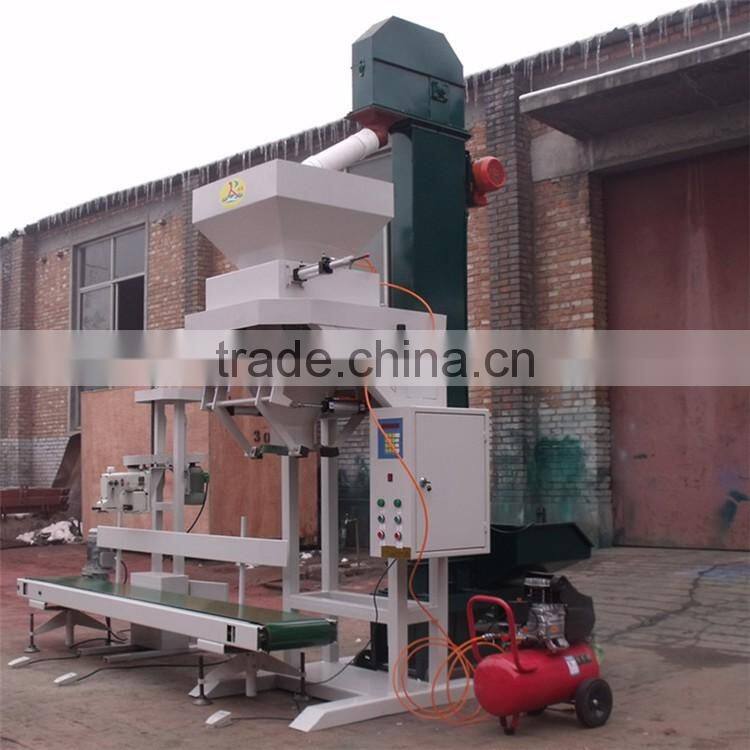

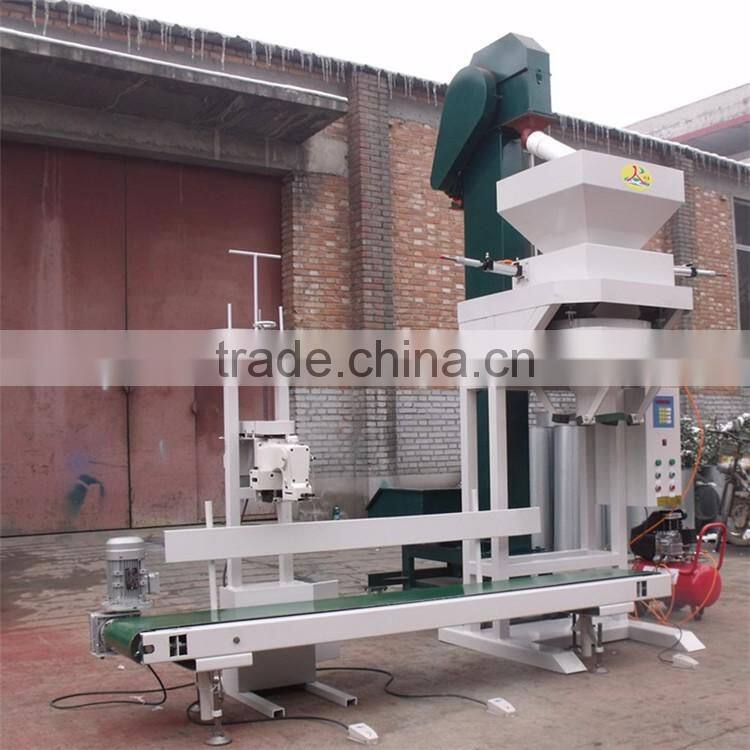

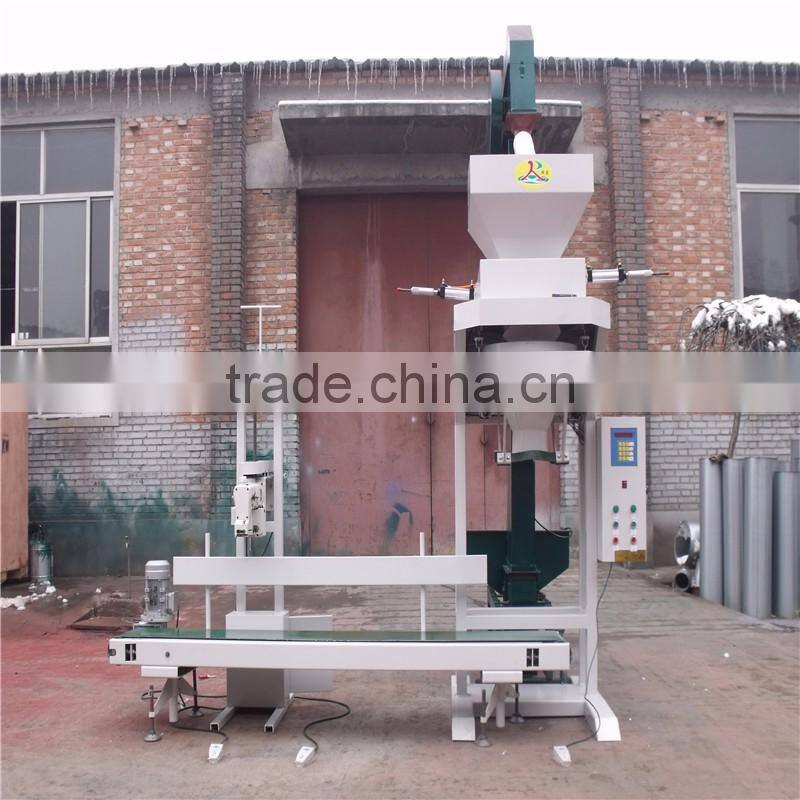

Whole system include weighting scale, bucket elevator, belt conveyor , air compressor, sewing machine or heat-sealing machine.

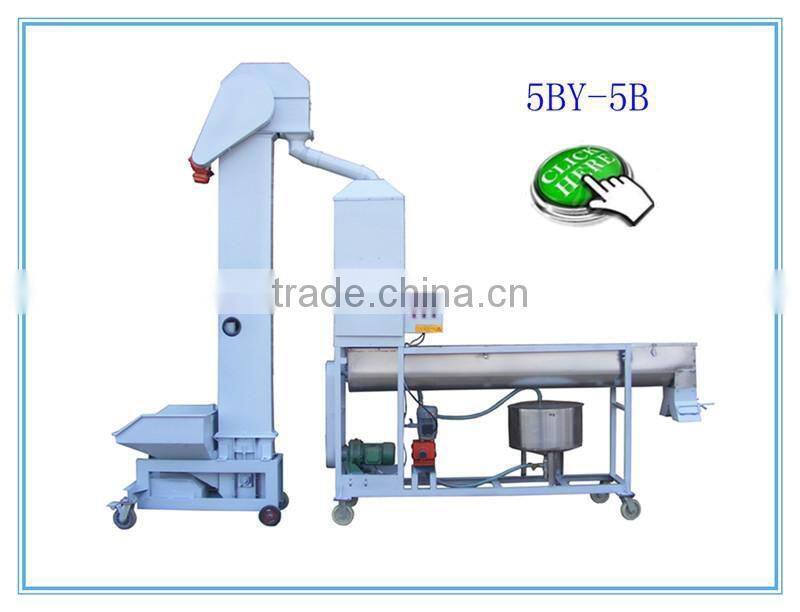

How about seed coating machine,to protect seeds from insects eating and help seed growing stronger?

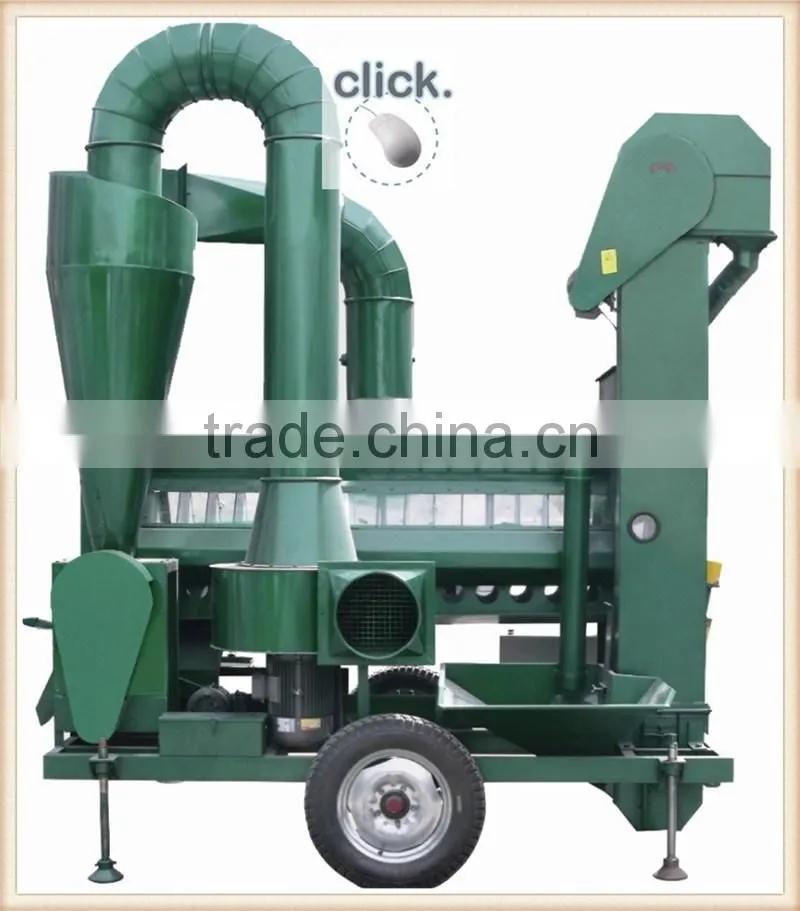

To remove the bad seeds,you need gravity separator:

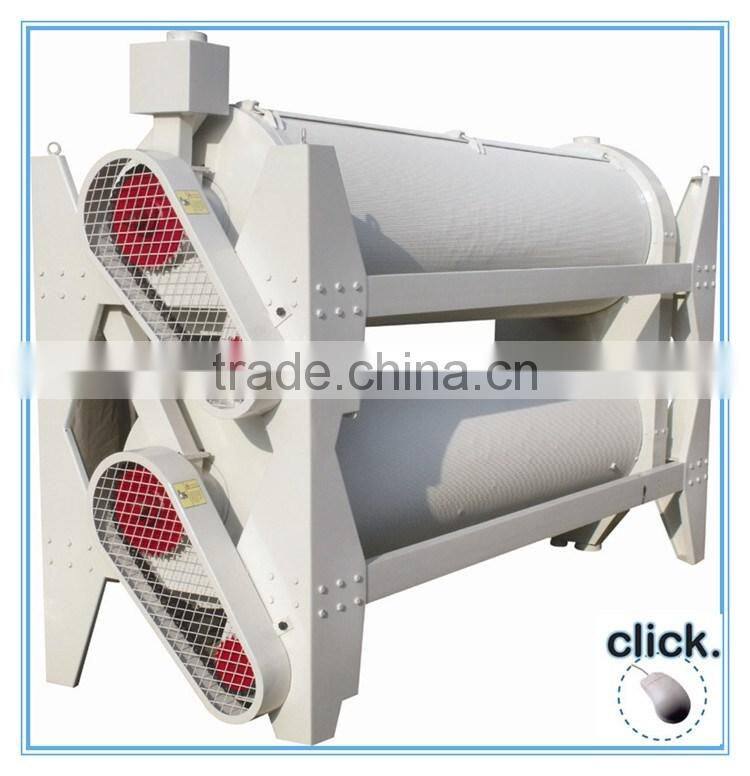

The indented cylinder is good at grading seeds according to length:

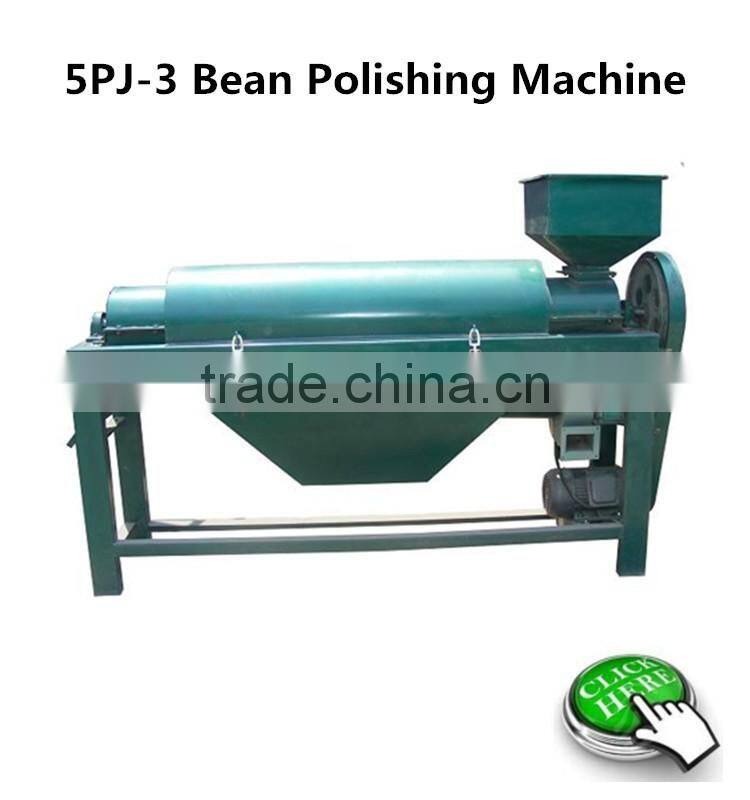

Use bean polishing machine to make beans smooth,shiny and pearly!

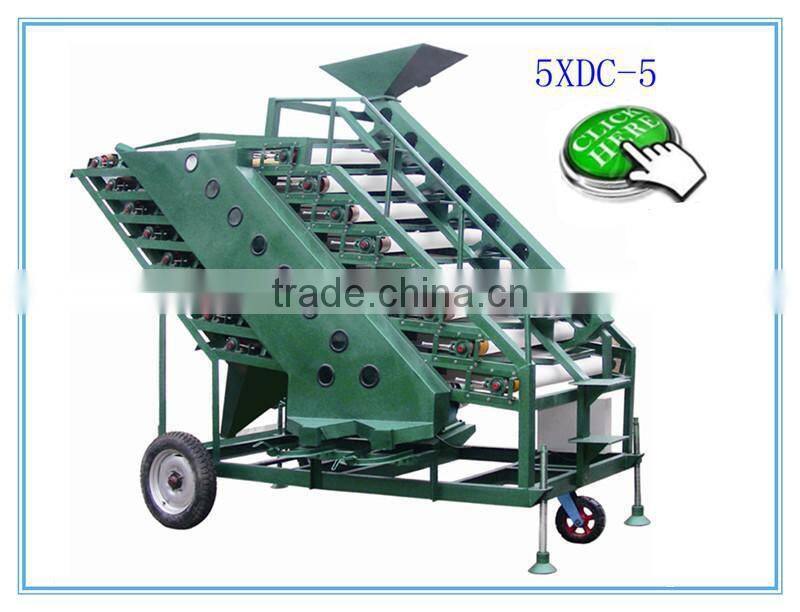

Our best selling round bean separator:

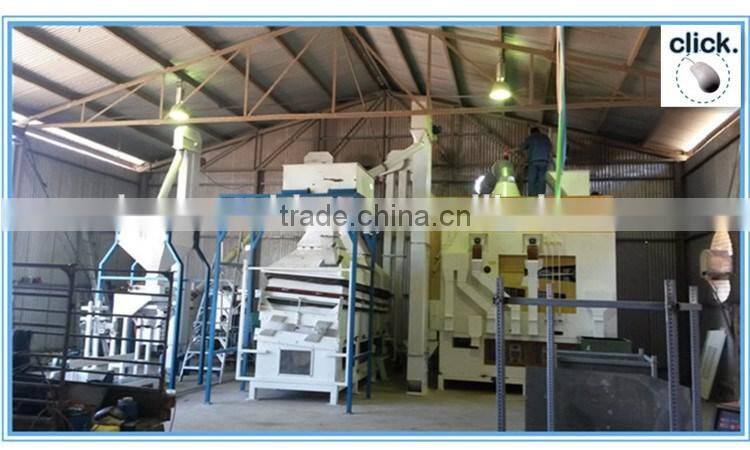

We can also provide complete line:
Pre-sales Service
1. Technical Consulting Service
Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit
Before placing orders, customers are warmly welcome to visit us and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.
In-sales Service
1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.
After-sales Service
1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.
SYNMEC,an international trading company also a professional manufacturer for grain cleaning and seed processing machinery.Our factory's name is Hebei Ruixue Grain Selecting Machinery CO.Ltd,SYNMEC as an international brand of " Ruixue Grain Selecting Machinery",also is an independent corporate entity' SYNMEC international trading Ltd.'So we can provide professional international trading service.

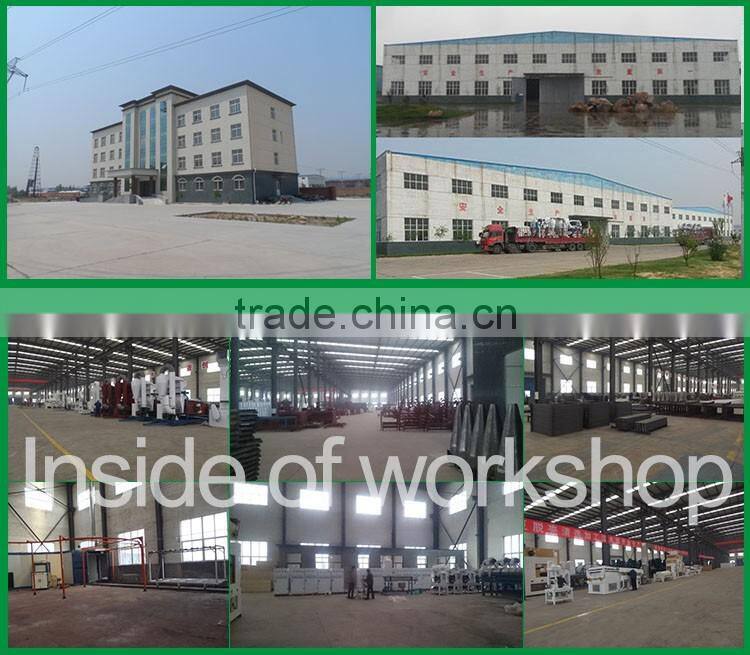

Customers' visiting:
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
