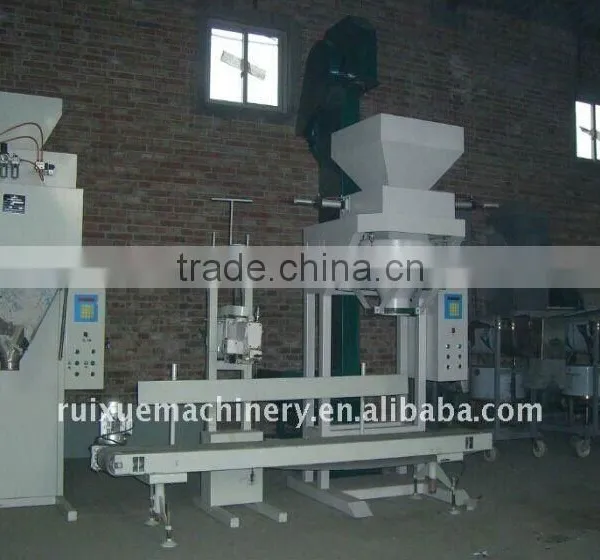

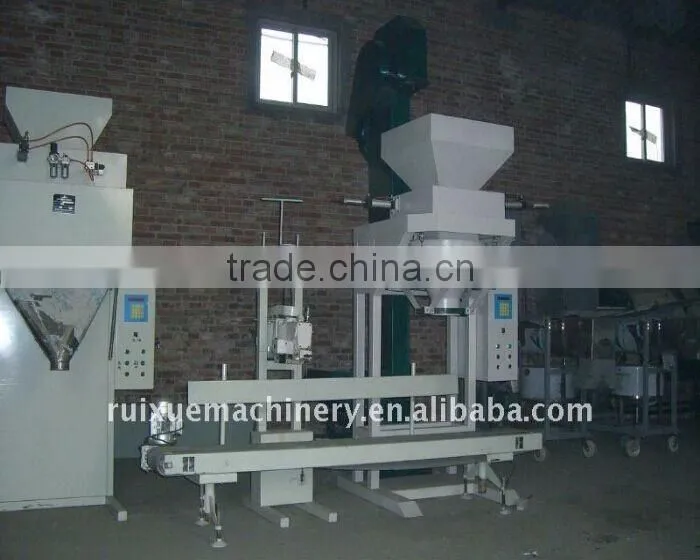

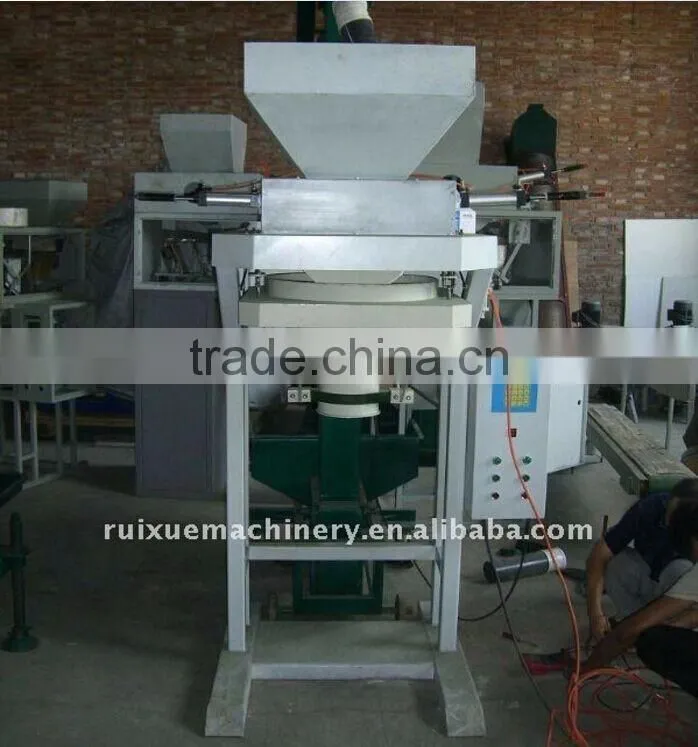

Flour Filling and Packing Machine
Product features of flour filling and packing machine
1. This unit is specially designed for ultrafine floury materials, with unique structure, accurate weighing and stable reliability;
2. The weighing control system is controlled centrally by PLC and is designed according to IP54 (dustproof and waterproof) requirement;
3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy;
5. Options: Multiple devices available for free selection (conveyor, bag sewing machine, sealing machine, elevator, air pump, dust collector, metal detector,
Over-allowance checker...
6. It can be tailor-made according to the customer's need and site.
Design basis and bagging performance of flour filling and packing machine
Ø Material name: Flour;
Ø Material feature: Non-corrosiveness, fluidity good,
Ø Machine material: The parts contains material use SUS304 stainless steel, other parts use carbon steel, the elevator you choose carbon steel or stainless steel, price is different;
Ø In one year, Non-artificial damage, can free change accessories, All the products are under one-year warranty and life maintenance
Ø Feeding parts outfit cover cap, to prevent dust and sundries fall in. All conveyor part outfit cover cap, ensure non-pollution when pack
|
Weighing range |
10-50kg |
| Weighing accuracy | ±0.1%-0.5% |
| Weighing rate | 120-400 bags/h |
| Power/current | 5kW/10A |
| Air supply pressure | 0.36MPa |
| Metering mode | Suspension sensor |
| Frequency/voltage | 50Hz/60Hz/220V/380V |
| Power supply mode | 3-phase 5-wire system |
| External dimensions (L*W*H) | 4000*2000*3500(mm) |
| Unit weight | 800 kg |
If there are a lot of stones in your material, you can choose:
For better seed cleaning,you may want:
To remove the bad seeds,you need gravity separator:
The indented cylinder is good at grading seeds according to length:
Use bean polishing machine to make beans smooth,shiny and pearly!
Our best selling round bean separator:
We can also provide complete line:
