Before buy the produce you should know the following questions, we will design the drip irrigation system according to your information.
1. The length and width of the land?
2. What plant do you grow ?
3. The distance of the row?
4. The source of water , from well or river or others?

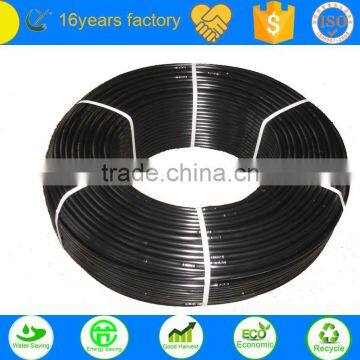

The Layflat PE hose adopt, the Polyethylene resin as the main raw material adding nanomaterials
modified materbatch, vacuum sizing made by extrusion.
Material:Polyethylene resin.
Performance:Nontoxic, odorless, acid corrosion, fluid resistance is small, easy to install, easy to store and transport.
Applied to:irrigation water transportation pressure lower than 0.25MPA, temperature no higher than 25C.
Packaging of PE flat hose | |||||
Size of flat hose |
Wall thickness |
Meters/roll |
Packing size |
Kg/roll |
Flow M3/H |
32 |
0.5 |
400 |
0.8*0.8*0.2 |
32 |
6 |
40 |
0.6 |
170 |
1*1*0.07 |
11 |
9.4 |
50 |
0.7 |
150 |
1*1*0.08 |
20 |
14.7 |
63 |
1.0 |
110 |
1*1*0.1 |
21 |
23.4 |
75 |
1.3 |
100 |
1*1*0.12 |
30 |
33.3 |
90 |
1.5 |
50 |
1*1*0.14 |
26 |
47 |
110 |
1.8 |
50 |
1*1*0.17 |
32 |
71 |
PE flat pipe working pressure:0.2Mpa, burst pressure 0.45Mpa
Main technical date of PE hose | |
Diameter: |
32-110MM |
Wall thickness: |
0.5-5MM |
Working pressure |
0.2-0.45MPA |
Packaging of PE flat pipe | |||||
Size of flat pipe |
Wall thickness |
Meters/roll |
Packing size |
Kg/roll |
Flow M3/H |
32 |
0.5 |
400 |
0.8*0.8*0.2 |
32 |
6 |
40 |
0.6 |
170 |
1*1*0.07 |
11 |
9.4 |
50 |
0.7 |
150 |
1*1*0.08 |
20 |
14.7 |
63 |
1.0 |
110 |
1*1*0.1 |
21 |
23.4 |
75 |
1.3 |
100 |
1*1*0.12 |
30 |
33.3 |
90 |
1.5 |
50 |
1*1*0.14 |
26 |
47 |
110 |
1.8 |
50 |
1*1*0.17 |
32 |
71 |
PE flat pipe working pressure:0.2Mpa, burst pressure 0.45Mpa
1.Why use a drip irrigation system?
Answer:Drip irrigation system is a system which can make you saving the water/labor/fertilizer.
2.What kind of products should i choose for my land?
Answer: It is according how much your land is and what do you want to plan , if you do not know it so well,
just ask me with no hesitate, i will give you a suggestion according to your information.
3.Does this system cost much?
Answer:It is depend on the design, we will try our best to give you a design that cost less but efficient.
4. Any certification?
Answer: standard:GB/T 17187-2009. ISO9001
5.How about your after-sales service?
15years experiences eliminate your worriers about both of the quality and installation.
Tianjin Chunyuan Longrun Micro-irrigation Technical CO.,LTD began its work in 1999, and established the
company in 2000,which is the first company engaged in the production of drip irrigation system for saving
water agriculture. After 15 years development , we have three system now, drip irrigation system, spray
irrigation system and garden irrigation system.The main products including drip pipe, PE pipe, PE hose,
filter system, fertilizer tank , pipe fittings. All of them have pass the ISO 9001 certification .
