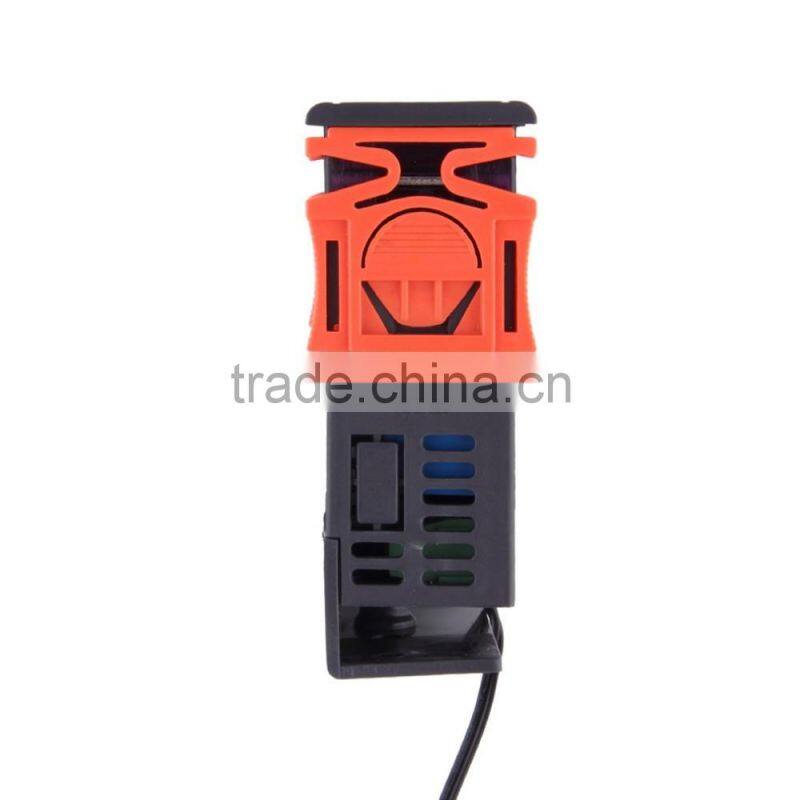

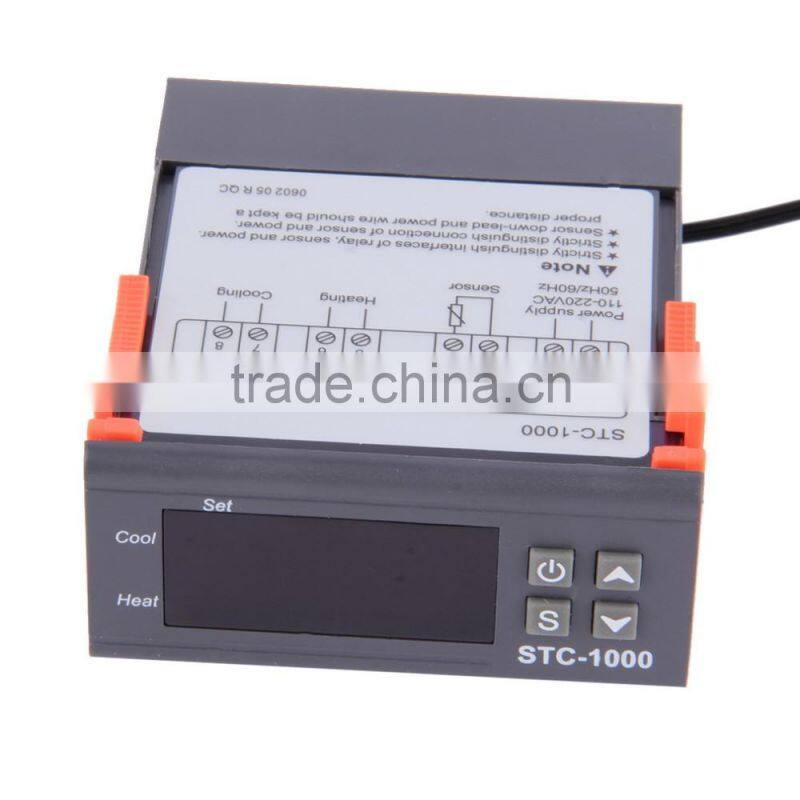

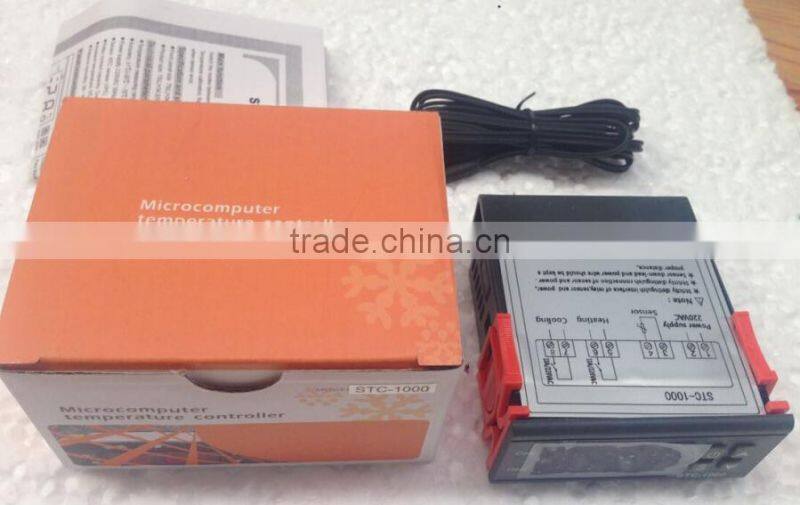

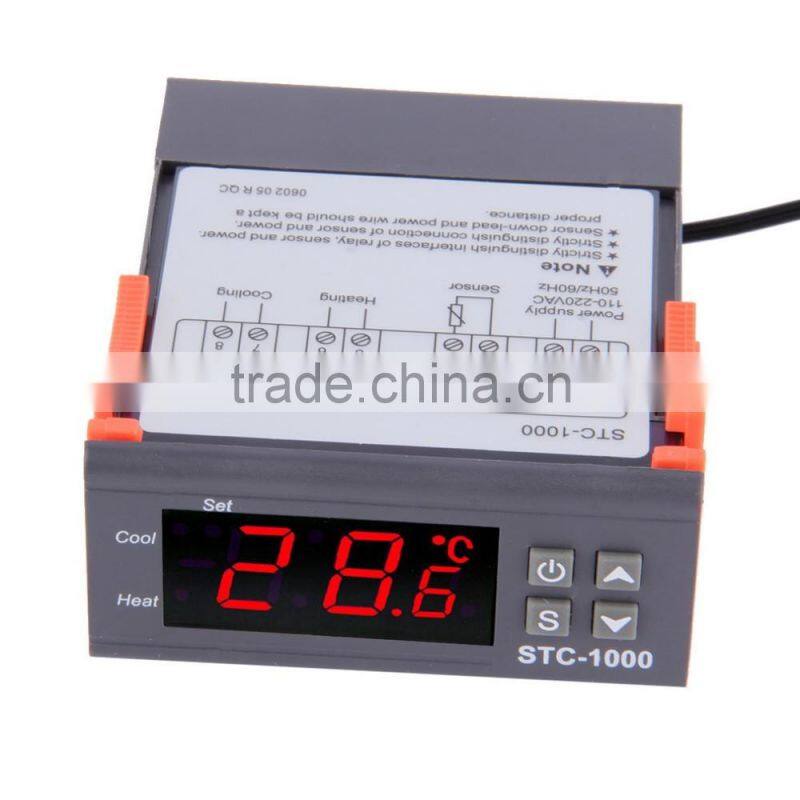

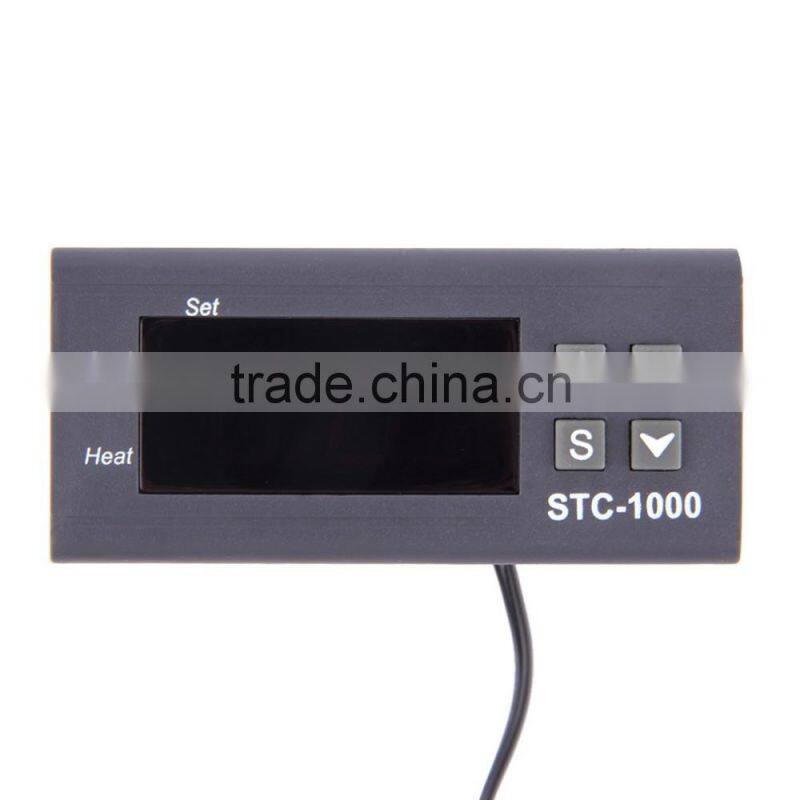

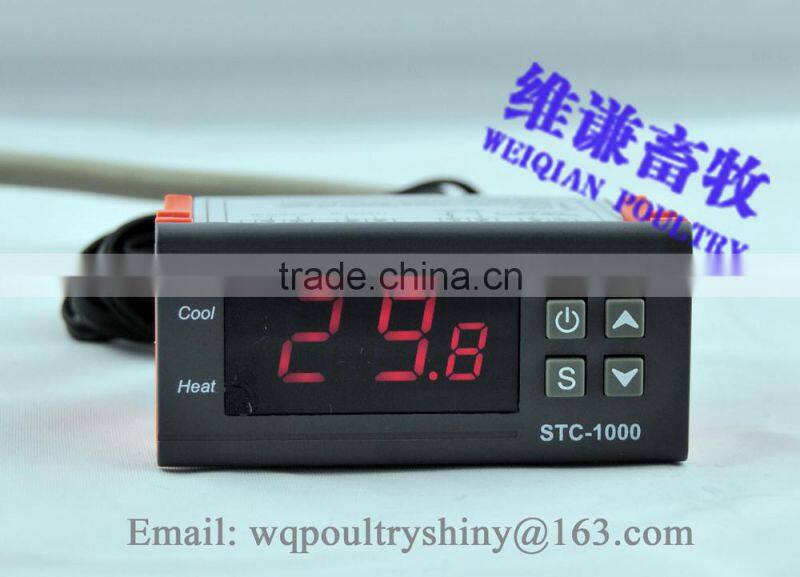

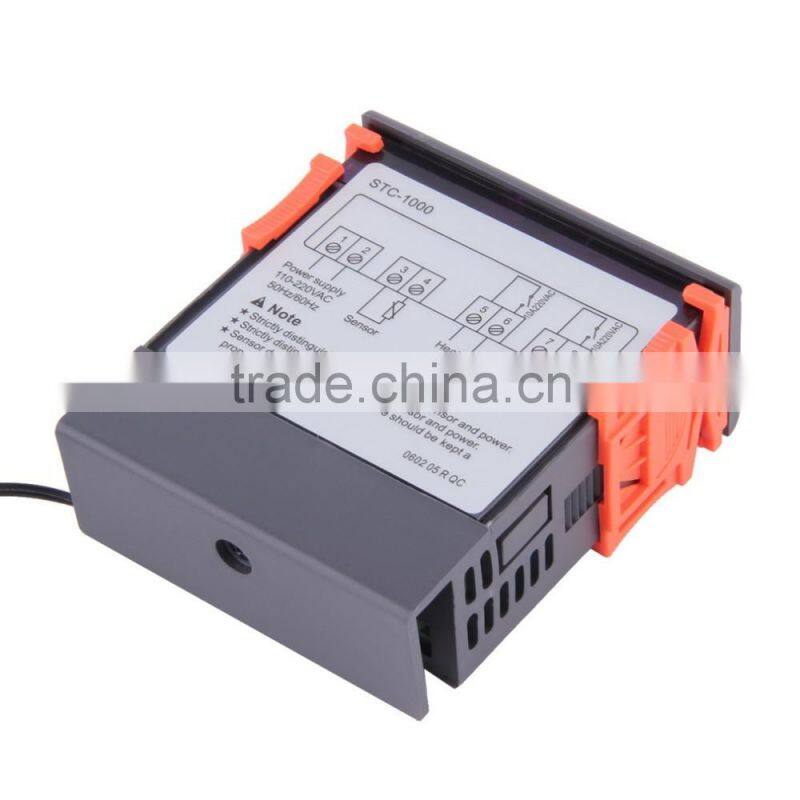

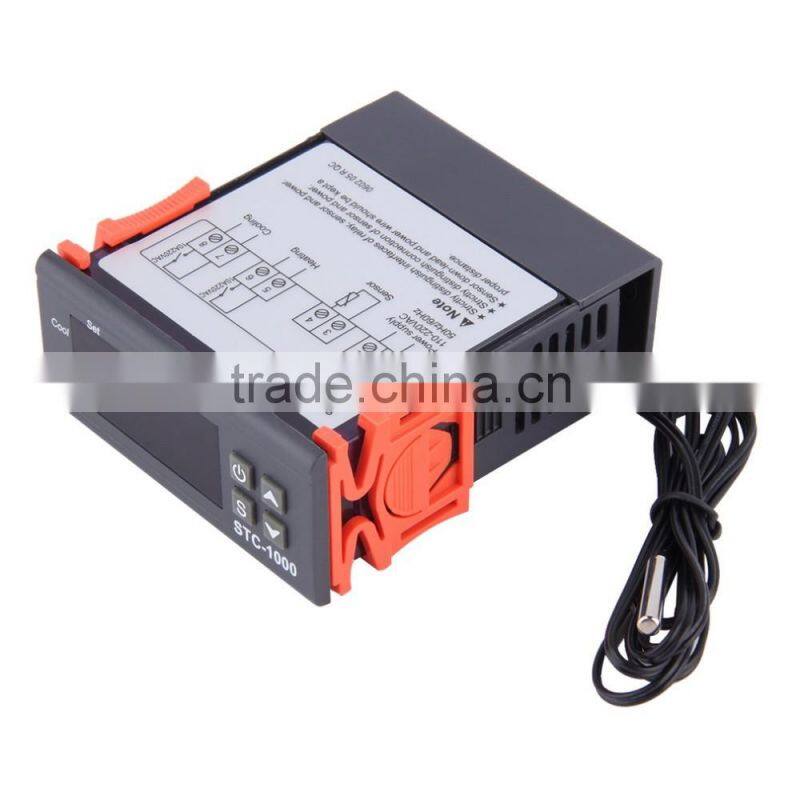

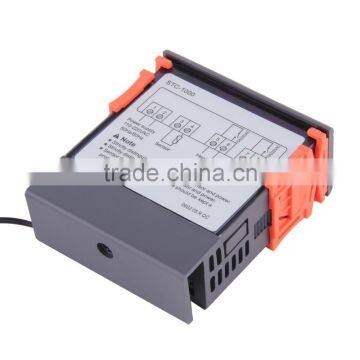

STC-1000 Two Relay Output AC DC 12V/10A Digital Temperature Controller Thermostat Cooling and Heating with 1m NTC sensor
- 60000 Set / Sets per Month
- qingdao port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | Weiqian | Model Number: | Stc-1000 |
Usage: | Household | Theory: | Temperature Controller | Accuracy: | ±1oC (-50~70oC); |
Temperature Range: | 50~99oC; |
Product Description
STC-1000 Two Relay Output AC DC 12V/10A Digital Temperature Controller Thermostat Cooling and Heating with 1m NTC sensor
Measure range:-50~+99°c
Mounting size:71*29mm
Auto switch between refrigerating and heating
Retrun difference value
All-purpose Temperature Controller STC-1000:
Features:
Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.
Specification and Size:
1.Front panel size75(L)×34.5(W)mm;
2.Mounting size:71(L)×29(W)mm;
3.Product size75(L)×34.5(W)×85(D)mm;
4.sensor length2minclude the probe.
Technical Parameters:
1. Temperature measuring range: -50~99oC;
2. Resolution: 0.1oC;
3. Accuracy: ±1oC (-50~70oC);
4. Sensor error delay: 1 minute
5. Power supply: 220VAC±10%, 50/60Hz;
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10.Storage temperature: -30~75oC;
11.Relative humidity: 20%~85% (No condensate).
