Automatic Poultry Pan Feeding System for Broilers and Breeders Cheap Strong Very Much

Features of the Pan feeding system

 pan feeding system

1.This pan feeding system have 14/16 grids for chickens.

2.This pan feeding system make it easy for chickens to access to the feed and reduce feed waste.

3.This pan feeding system is easy to install and clean, long life span.

4.Hang style pan, easy to dismantle and to clean.

5.Smoothly edge can invoide hurting the chicken.

6.The bottom reduces the feeding stuff left in the pan, help to keep stuff fresh and reduce wasting.

Composition:

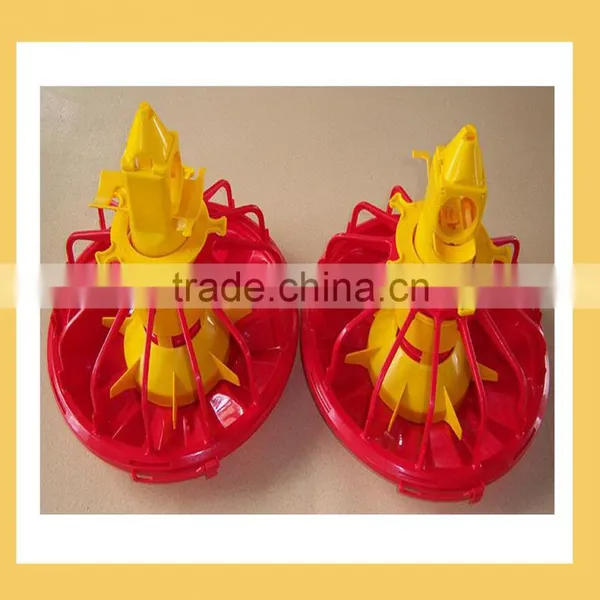

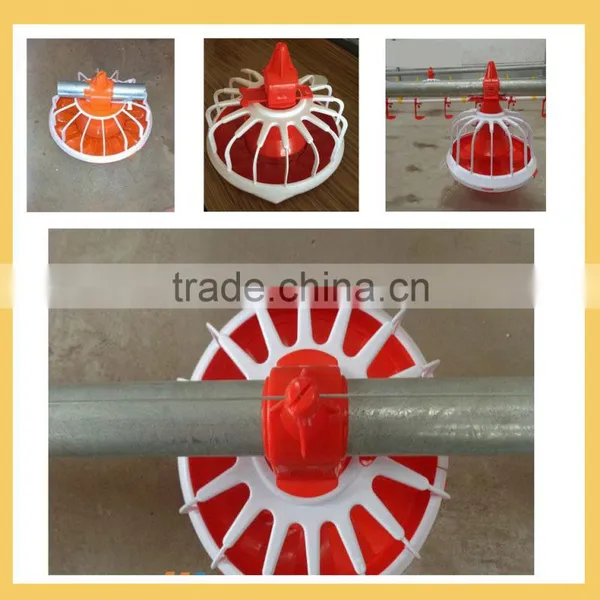

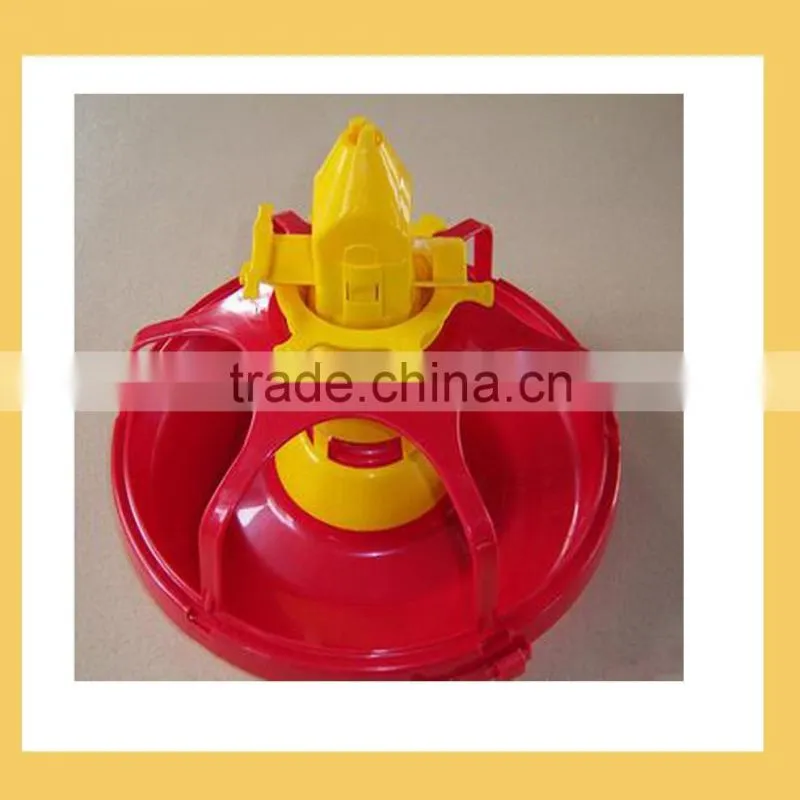

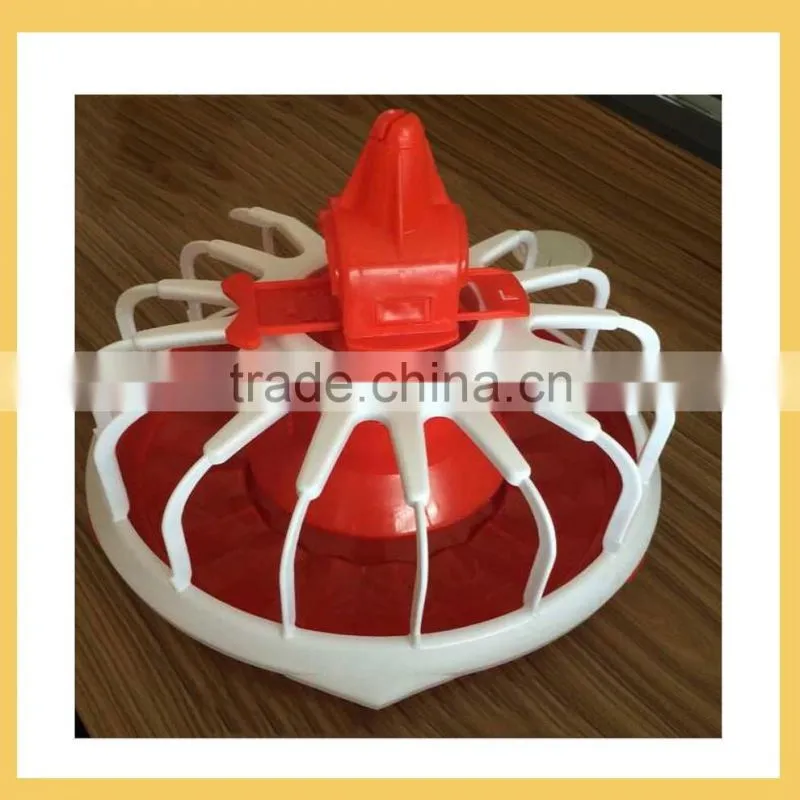

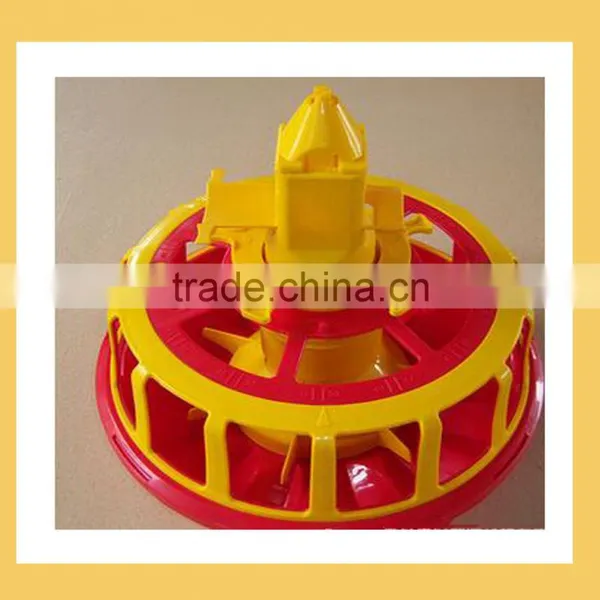

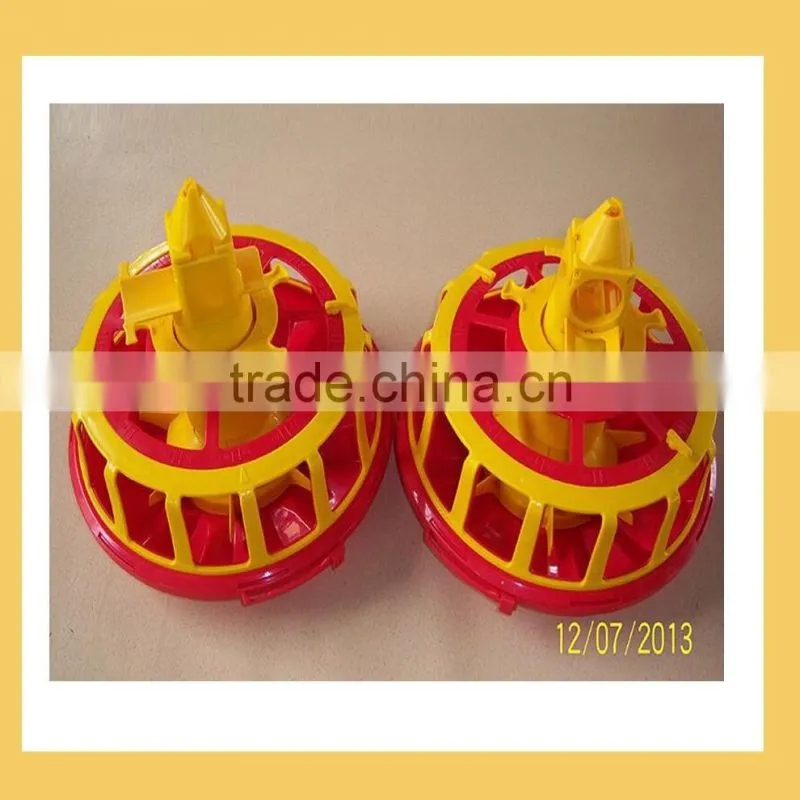

Feeder Pan: Diameter of plastic pan:360mm, 14 Grids

Large pulley: cast iron

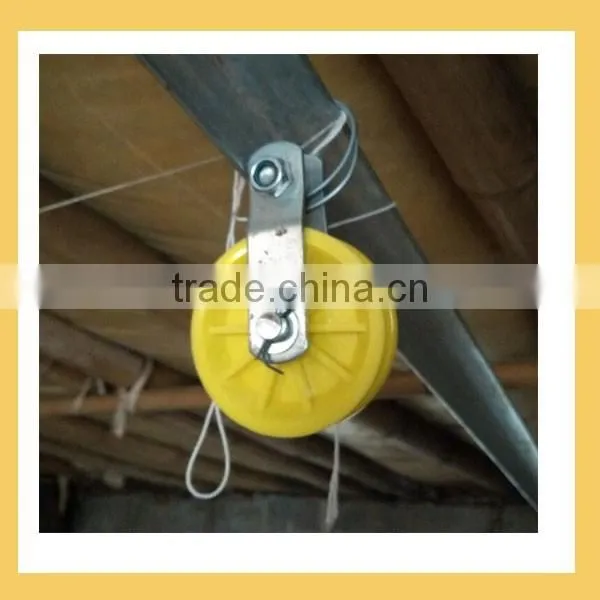

Sheaves: Plastic Material

Main rope: galvanized steel wire rope with 4 #

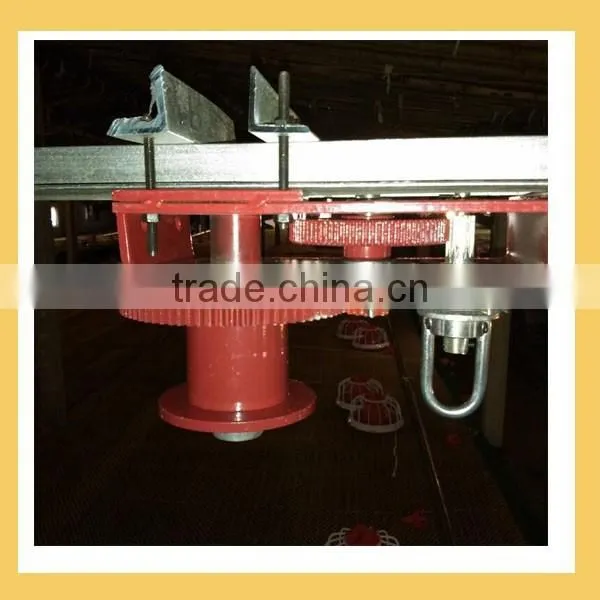

Lifting winch and winch crank: height-adjustable trays to meet the needs of the different stages of feeding.

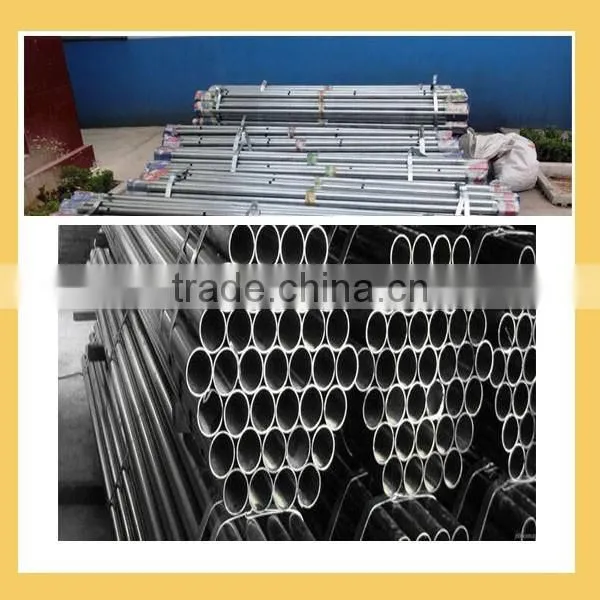

Feeding tube

1, Material: hot galvanized pipe, galvanized volume> 250g / m

2, diameter: 45mm

3, thickness: 1.2mm

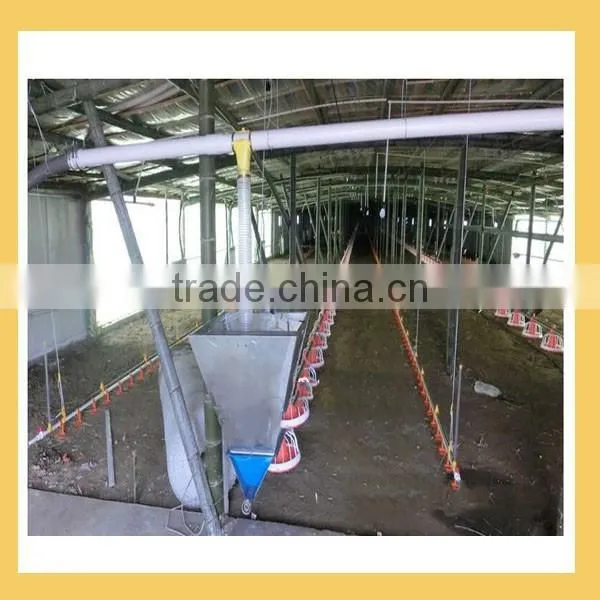

  Hopper: Container volume 120L,V hopper.
  Driving Motor: motor driver 750w,380v, transmission speed 450kg/h.

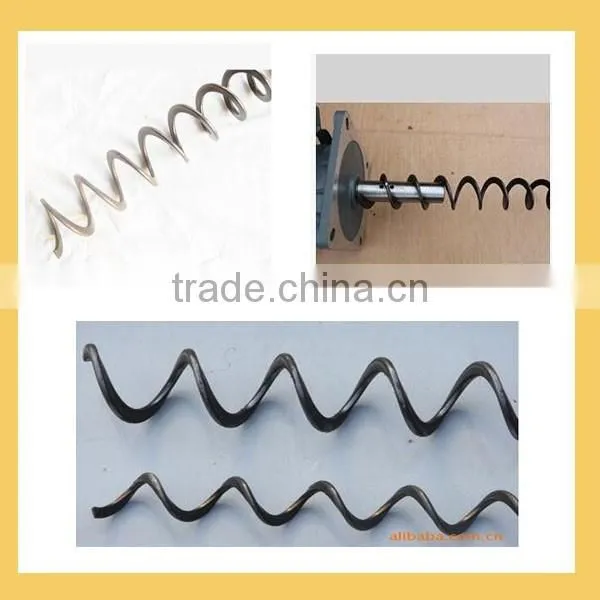

South Africa imported using screw auger:

Material: high-carbon steel, high surface hardness and wear resistance, toughness Haonai internal tension;

Outer diameter: 36mm;

Feeding capacity: 400kg / h;

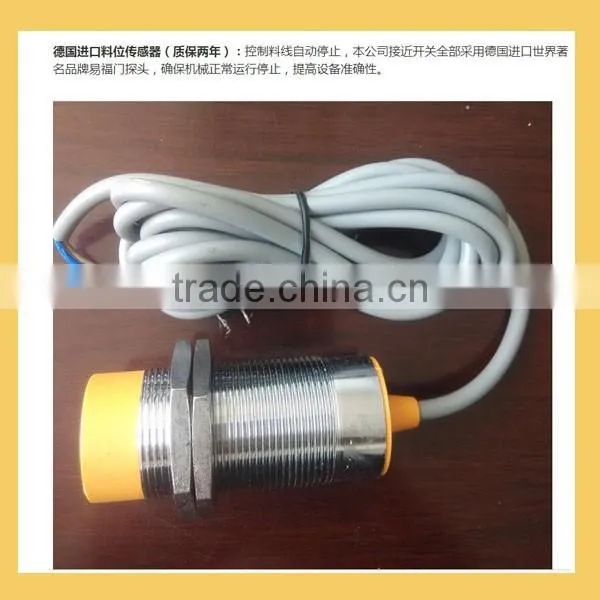

Germany imported material level sensor (two-year warranty): control feed line is automatically stopped, the Company proximity switches are all imported from Germany, the world-famous brand ifm probe, to ensure the normal operation of the mechanical stop, improve equipment accuracy.

Main conveying feed line: the delivery of material to the feed line silo hopper.

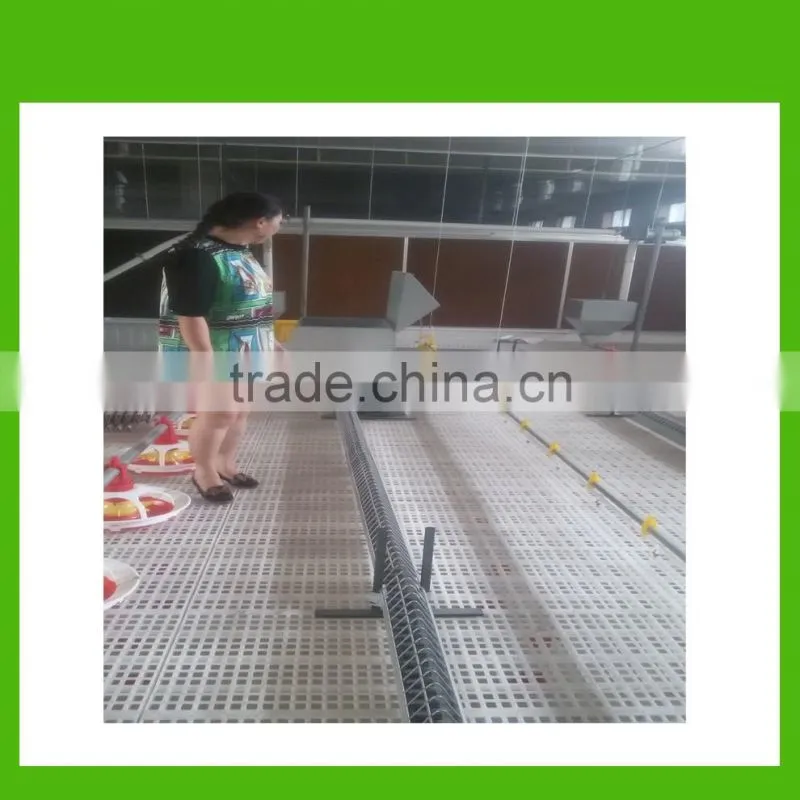

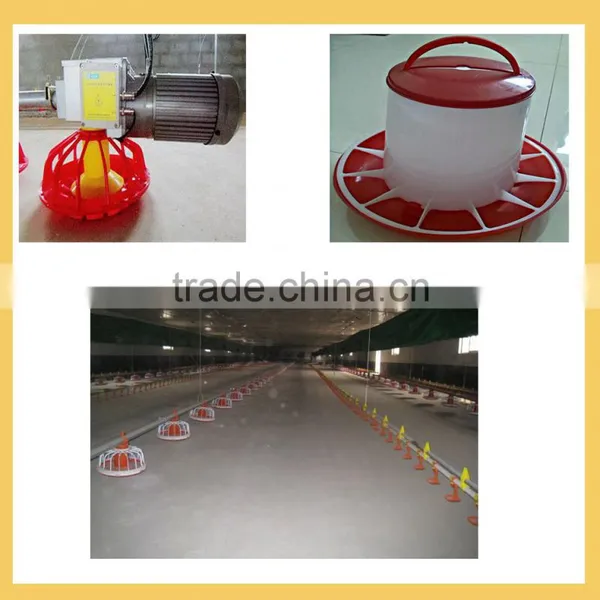

Product real shot chart

We also can provide you with overvalue services:

1. Poultry house site selection

2. Poultry house design and construction preparation guidance.

3. Breeding equipment installation

4. Breeding worker training

5. Breeding technology guidance

6. After-sale Service

We can design the good project as your shed size and chicken quantity.
