Home > Products > Modified Starch Process Line > Cassava modified starch production line

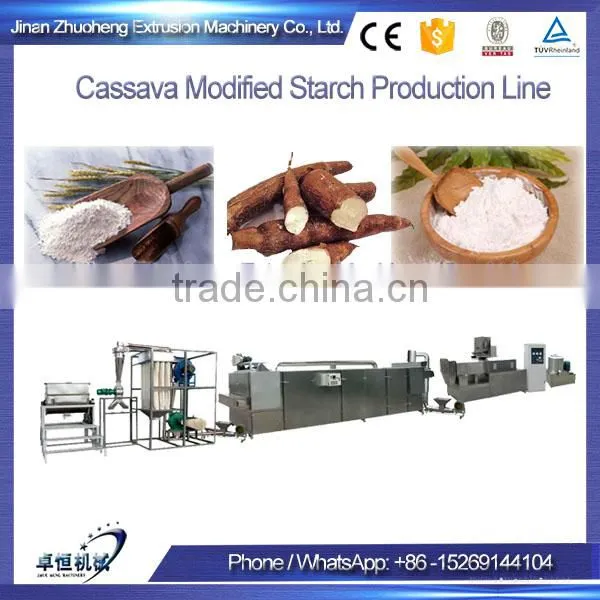

Cassava modified starch production line
- 20 Set / Sets per Month
- Qindao Shanghai Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
- mobile soft serve ice cream machine
- 2015 Commercial snack machine hot dog machine hot dog making machine on sale
- 2015 high quality popcorn machine A commercial popcorn and cotton candy machine
- 2015 high quality popcorn machine A industrial popcorn maker Aimee Liu
- delicious commercial popcorn making machine A high quality popcorn maker gas heating mode
- 2015 high quality popcorn machine A
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Zhuoheng |
Model Number: | ZH65,ZH70,ZH85,ZH95,ZH135 | Application: | Other, Cassava modified starch production line | Voltage: | 380V |
Power(W): | 55kw | Weight: | 1.2t | Dimension(L*W*H): | 4.0x1.2x1.8m |
Certification: | BV/TUV | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cassava modified starch production line
1. Description:
Pre-gelatinized starch/Modified starch making machine can product Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally acceptable and non-toxic. Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.
2. Raw materials: corn starch, cassava starch, potato starch,etc
3. Products: oil drilling starch, Pre-gelatinized starch
4. Capacity: 500kg/h, 1 ton/h, 2 ton/h, 3-4 ton/h,etc
5. Flow Chart: Mixing---Extrusion---Drying---Grinding---Blending—Packing
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7.Technical Parameters:
Model | Installed power | Real power | Output | Dimension |
ZH65 | 22kw | 35kw | 120-150kg/h | 21000x1200x2200mm |
ZH70 | 35kw | 49kw | 200-240kg/h | 23000x1500x2200mm |
ZH85 | 75kw | 110kw | 400-500kg/h | 28000x3500x4300mm |
ZH95 | 110kw | 151kw | 1 ton/h | 4700*1900*4800mm |
ZH135 | 335kw | 425kw | 3-4 ton/h | 5200*2000*4200mm |
8.The Reason Why You Choose Us ?
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIMENS(China) Motor
4. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5.Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9.Our Tech Details for You
1. Swiss technology , made in China
2. PLC touch screen for accurate and convenient control
3. Direct transmission of motor and distribution box reduces energy loss.
4. Imported bearing with high carring capacity.
5. Applied to various materials with totally enclosed type compulsive feeding way.
6. With water injecting device on barrel, it can adapt to the requirements of materials and quality.
7. The screw is made of high-speed tool steel with hardness > HRC=62 ,which has a longer servive life.
8.Cordwood combined screw is applied to different materials and products with certain screw combination.
9.Independent and precise temprature control in each section ,automatic water cooling system
10. Suspension type rotary cutter with liner bearing adjusting device to ensure quick ,safe and accurate cutter adjusting.
10.Here Provide Satisfied Service & Turnkey Solution
a.) Consultation service before, during, and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
e.) Provide 1 year complete warranty and life-time maintenance service.
f.) Design: All the machines are elaborately designed by our mechanical engineers who are rich of experience in this field. We accept special design according to customer’s request.
g.) Processing & Assembling: Parts processing, assembly, testing are based on standard test.
h.) Trial Run: Each machine has to be tested before its deliver.
11. Show Cases:
(zh65)modified starch machine for sale used in industry (zh65)modified starch machine for sale used in industry (zh65)modified starch machine for sale used in industry
