Specifications
fully automatichigh capacity
baby nutrition powder machine/infant food making machine
1. Description:

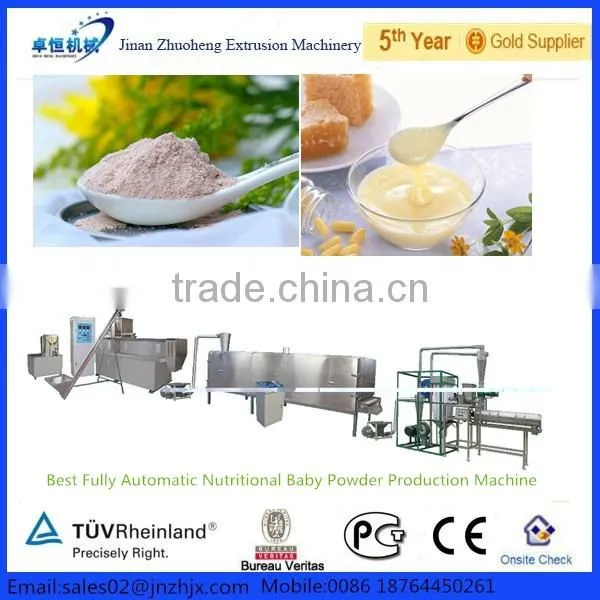

Baby food making machine uses rice, corn, beans and all kinds of grist as raw material. Through extruding and inflating, drying, crushing and mixing, it could produce all kinds of nutrition powder, such as infant rice flour, sesame paste, and beans powder and so on. This line could finish all the process automatically from the feeding to the end. It has features of easy operation, without leak of powder dust, sanitation, saving energy and easy to add all kinds of raw materials and nutriment.
2. Raw materials: adopts cereals flour (corn, wheat, rice, oat, soy, etc)
3. Products:baby food, FBF, CSB and samaposha etc
4. Capacity: 150kg/h, 240kg/h, 500kg/h

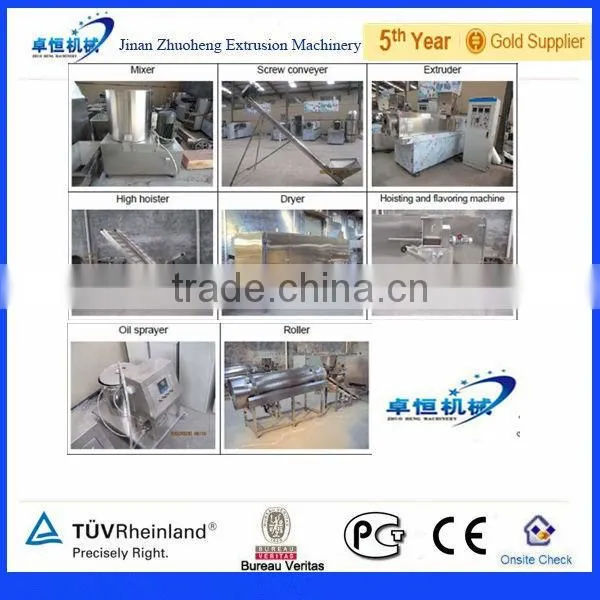

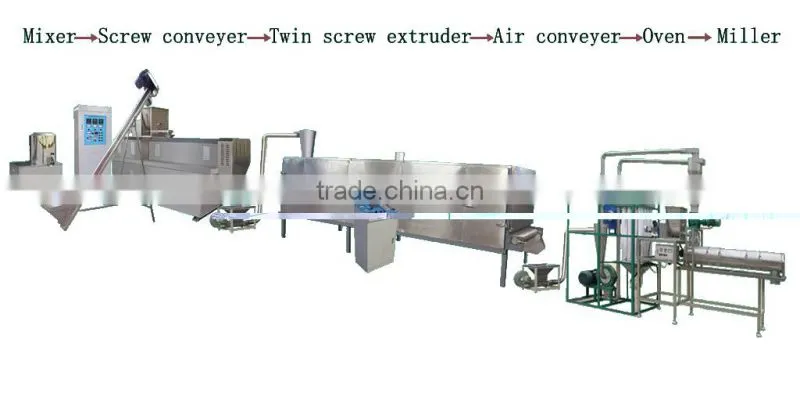

5. Flow chart:Mixing system---Extrusion system---- -Drying system----Milling system---Blending----Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines Materials:All the machines are made by stainless steel
8. Technical Parameters
Model |
Installed power |
Real power |
Output |
Dimension |
ZH65 |
70kw |
40kw |
100-150kg/h |
22000x1200x2200mm |
ZH70 |
90kw |
50kw |
200-240kg/h |
25000x1500x2200mm |
ZH85 |
120kw |
100kw |
400-500kg/h |
30000x3500x4300mm |
ZH95 |
135kw |
100kw |
800-1000kg/h |
30000x3500x4300mm |

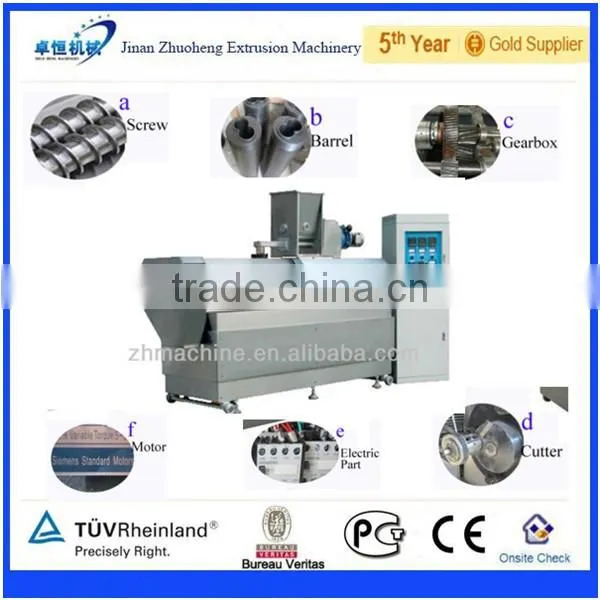

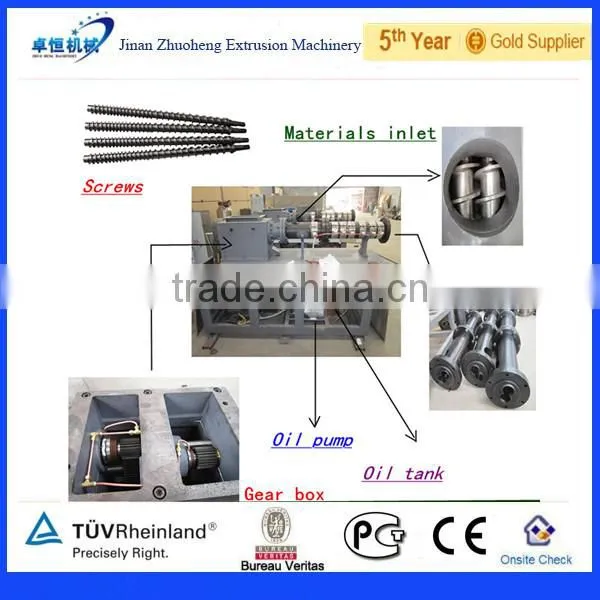

9. Features of Our Twin Screw Extruder:
a. Screw with 38CrMoAL excellent material and being Nitriding treatment Made in Zhoushan, Zhejiang Province China. The HRC hardness is around 60---62.The screws are made by alloy steel and special craft, the screw life is longer. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b.The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c.The gearbox has automatic lubrication function, with extends gear life.
d.Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e.We use SIEMENS (CHINA)electrical parts.
f. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent Performance
We Provide Satisfied Service & Turnkey Solution
a. We can keep product design in the same level with internationally advanced technology consistently.
b. We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
c. We can guarantee customers superior quality machines up to design requirements and perfect working state.
d. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
e. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
f. We provide 1 year complete Guarantee and life-time maintenance service.
If you have any needs or enquiries, please feel free to contact me. Thank you very much!
