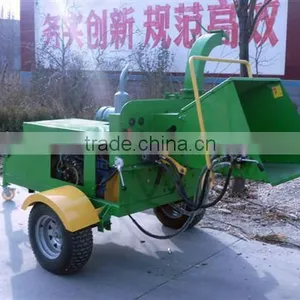

Wood Chipper FM-40 With CE Certificate

Wood Chipper FM-40 With CE Certificate thumbnail-1
Wood Chipper FM-40 With CE Certificate photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, new
Place of Origin:
Shandong, China
Brand Name:
FM
Contact Supplier Request Quote Chat Now
Weifang Fumei Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name FM
Model Number FM-40
After-sales Service Provided Overseas third-party support available

Specifications

1.engine:4L22B
2.rated output: 35hp
3.starting system:electric

Model

FM-40

Engine

Item

4L22B  diesel engine

type

Four cylinder, vertical, four-stroke

Combustion chamber type

Direct Injection

Cylinder diameter

85mm

Piston stroke

95mm

Piston displacement

2.156L

Compression ratio

18:1

Rated power

25.7KW/2350rpm

Fuel consumption rate

<238g/KW.h

Cooled style

Water-cooled

Start

Electric start

weight

200kgs

dimensions

695x494x620mm

Fuel

Diesel 0# in summer, -10# or -20# in winter

Chipper capacity

8”diameter/  200mm

Feeding system

hydraulic Roller feeding

Flywheel diameter

600mm

flywheel weight

85kg



1 stationary knife:, 2 rotary knives



200 x 220(inside),  800x640 (outside)

Discharge Hood Height (mm)

2000

Knives number

1280

Feed Hopper Opening (mm)

3600x1600x2000

Weight

800kgs

Working efficiency

6-9 CBM/H

Remarks

1 set of blades and 1 set of belts are sent together

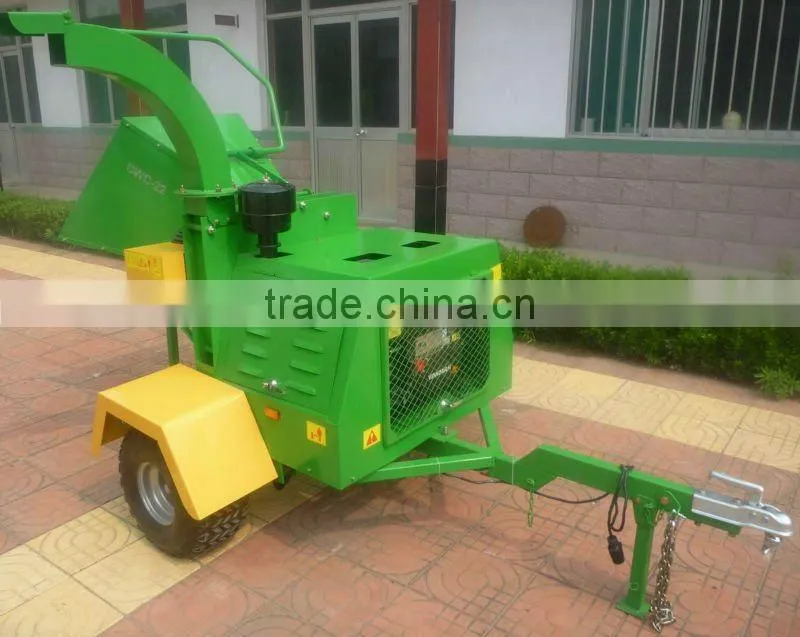

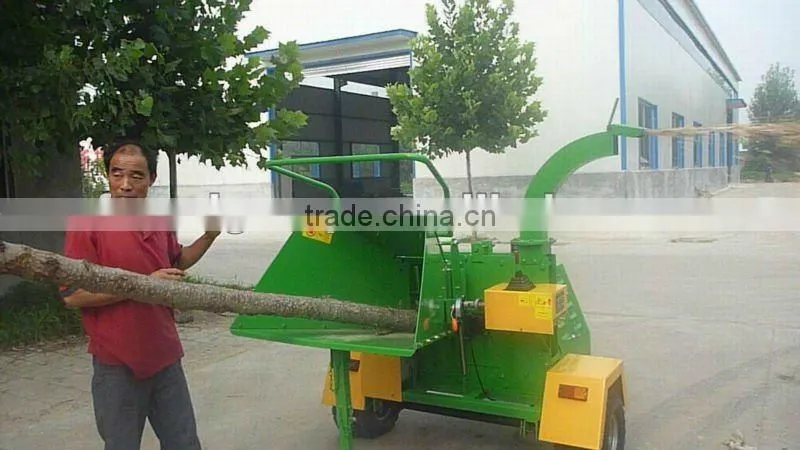

Wood chipper FM-40 with CE certificateWood chipper FM-40 with CE certificate
